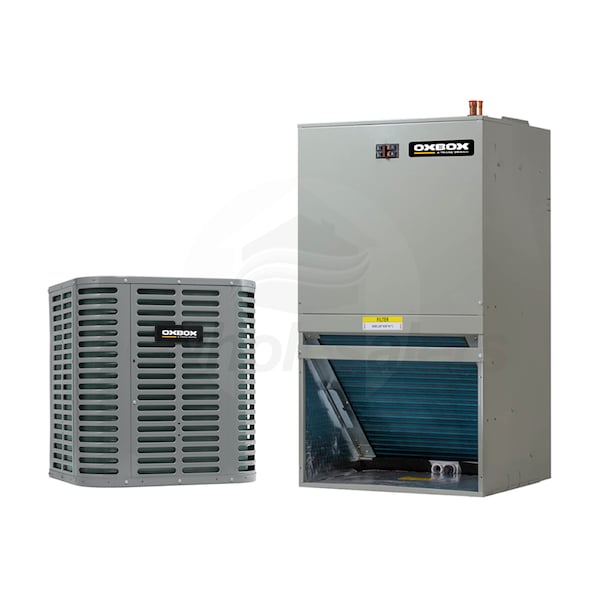

Oxbox 2.5 Ton 15.0 SEER Heat Pump Air Conditioner System

Model: J4HP4030A1000AA J4AH4E36A1B00AA Item Number: 110877
Ask a Question
Oxbox J4HP4030A1000AA J4AH4E36A1B00AA
PREVIOUS
NEXT
Oxbox J4HP4030A1000AA J4AH4E36A1B00AA
Oxbox J4HP4030A1000AA J4AH4E36A1B00AA
Oxbox J4HP4030A1000AA J4AH4E36A1B00AA
Enlarge Image
Oxbox J4HP4030A1000AA J4AH4E36A1B00AA
Oxbox J4HP4030A1000AA J4AH4E36A1B00AA
Oxbox J4HP4030A1000AA J4AH4E36A1B00AA
View All
Our Price: $2,693.00
synchrony card icon
$48 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 2-5 Business Days
Oxbox 2.5 Ton 15.0 SEER Heat Pump Air Conditioner System
Oxbox 2.5 Ton 15.0 SEER Heat Pump Air Conditioner System Model: J4HP4030A1000AA J4AH4E36A1B00AA Item Number: 110877
$2,693.00
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    282 Pounds Learn More
    Type
    Heat Pump and Air Handler Package
    Operating Mode
    Heating and Cooling
View More
Bundle Includes 2 items
  • product image
    (1) Oxbox 2.5 Ton 14 SEER Heat Pump Air Conditioner Single-Stage Condenser (J4HP4030A1000AA)
  • product image
    (1) Oxbox 3 Ton Air Conditioner Air Handler (CTM) (J4AH4E36A1B00AA)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Oxbox J4HP4030A1000AA J4AH4E36A1B00AA

The Oxbox central air system is the smart choice for staying cool in the summer months and staying warm in the cooler months. Endorsed by Trane®, the economical and no-nonsense Oxbox central air system features the J4HP6 heat pump that provides both heating and cooling for your home. With painted, galvanized steel cabinets, the J4HP6 resists rust and inclement weather. Paired with a multi-positional air handler with flexible installation options, the system provides economical, sturdy and efficient performance, no matter the season.

Affordable Quality

Oxbox heat pumps offer powerful and dependable cooling at an affordable price.

Small Footprint

With its compact size, the Oxbox heat pump is perfect for homes that have limited yard space.

Durable

Featuring painted, galvanized steel heat pump cabinets that resist rust and painted, metal air handler cabinets for durability, the Oxbox kit stands up to inclement weather and retains peak efficiency.

Quiet Operation

With a maximum sound level of 74 dB, you'll barely notice your heat pump is running.

Low Voltage Control

The Oxbox heat pump features 24V low-voltage control, providing added safety to installation and operation.

All-aluminum Coil

The Oxbox air handler includes an all-aluminum coil for advanced heat transfer and efficiency.

ECM Motor

With an air handler with an ECM blower motor, this Oxbox kit provides more efficient operation, saving you money otherwise spent on energy costs.

Dual Drainage

For increased installation flexibility, the Oxbox air handler features two drainage spouts.

Easy Access

Oxbox air handlers feature removable front panel and blower and coil assemblies for simple maintenance and troubleshooting.
Product Note
  • In order to maintain its warranty, your Oxbox equipment must be installed by a contractor. You will need to provide proof of installation before using your warranty.
  • Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    J4HP4030A1000AA Specifications
    J4AH4E36A1B00AA Specifications
    General Information
    Type
    Heat Pump and Air Handler Package
    Operating Mode Learn More
    Heating and Cooling
    Configuration Learn More
    Multi-Position
    DOE Regional Compliance Learn More
    Nationwide
    Performance
    Capacity Learn More
    2.5 Tons
    Cooling Capacity
    30000 BTU
    Heating Capacity
    29000 BTU
    SEER Learn More
    15.0
    EER Learn More
    12.5
    HSPF Learn More
    9.0
    Maximum Air Flow
    1491 CFM
    Dimensions
    Product Weight
    282 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    202710852
    General Information
    Type
    Condenser
    Product Line
    J4HP4
    Operating Mode Learn More
    Heating and Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Single
    DOE Regional Compliance Learn More
    Nationwide
    Performance
    Capacity Learn More
    2.5 Tons
    Cooling BTU
    30000
    Cooling Capacity
    30000 BTU
    SEER Learn More
    14.0
    Maximum Sound Level Learn More
    74 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    16.5 Amps
    Recommended Breaker Size
    25 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    24 15/16 Inches
    Product Width
    28 Inches
    Product Depth
    28 Inches
    Product Weight
    157 Pounds
    Shipping Height
    31 1/2 Inches
    Shipping Width
    29 1/24 Inches
    Shipping Length
    29 1/24 Inches
    Shipping Weight
    187 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
    Compressor Warranty
    10 Years
    General Information
    Type
    Air Handler
    Product Line
    J4AH4
    Refrigerant Type
    R-410A
    Blower Motor
    Multi-Speed
    Motor Type
    ECM
    Configuration Learn More
    Multi-Position
    Installation Location
    Indoor
    Performance
    Capacity Learn More
    3.0 Tons
    Cooling BTU
    36000
    Maximum Air Flow
    1491 CFM
    Minimum Air Flow
    203 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    46 1/2 Inches
    Product Width
    19 5/8 Inches
    Product Depth
    21 5/8 Inches
    Product Weight
    125 Pounds
    Shipping Height
    47 19/24 Inches
    Shipping Width
    22 Inches
    Shipping Length
    25 17/24 Inches
    Shipping Weight
    141 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
