Oxbox - 2.0 Ton Cooling - Air Conditioner + Air Handler Kit - 16.0 SEER

Model: J4AC6024A1 J4AH4E36A1B00AA Item Number: 110976
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Oxbox J4AC6024A1 J4AH4E36A1B00AA
PREVIOUS
NEXT
Oxbox J4AC6024A1 J4AH4E36A1B00AA
Oxbox J4AC6024A1 J4AH4E36A1B00AA
Oxbox J4AC6024A1 J4AH4E36A1B00AA
Enlarge Image
Oxbox J4AC6024A1 J4AH4E36A1B00AA
Oxbox J4AC6024A1 J4AH4E36A1B00AA
Oxbox J4AC6024A1 J4AH4E36A1B00AA
View All
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    273 Pounds Learn More
    273 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Conditioner & Air Handler Package
View More
Bundle Includes 2 items
  • product image
    (1) Oxbox J4AC6 - 2.0 Ton - Air Conditioner - 16.0 Nominal SEER - Single-Stage - R-410A Refrigerant (J4AC6024A1000AA)
  • product image
    (1) Oxbox 3 Ton Air Conditioner Air Handler (CTM) (J4AH4E36A1B00AA)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Oxbox J4AC6024A1 J4AH4E36A1B00AA

The Oxbox central air system is the smart choice for staying cool in the hottest summer climates. Oxbox, a Trane brand,, the economical and no-nonsense Oxbox central air system features the J4AC6 air conditioner that delivers cool, dry air for your home. With painted, galvanized steel cabinets, the J4AC6 resists rust and inclement weather. Paired with a multi-positional air handler with flexible installation options, the system provides economical, sturdy and efficient performance.
  • Affordable Quality
  • Oxbox air conditioners offer powerful and dependable cooling at an affordable price.
  • Small Footprint
  • With its compact size, the Oxbox air conditioner is perfect for homes that have limited yard space.
  • Durable
  • Featuring painted, galvanized steel air conditioner cabinets that resist rust and painted, metal air handler cabinets for durability, the Oxbox kit stands up to inclement weather and retains peak efficiency.
  • Quiet Operation
  • With a maximum sound level of 76 dB, you'll barely notice your air conditioner is running.
  • Low Voltage Control
  • The Oxbox air conditioner features 24V low-voltage control, providing added safety to installation and operation.
  • All-aluminum Coil
  • The Oxbox air handler includes an all-aluminum coil for advanced heat transfer and efficiency.
  • ECM Motor
  • With an air handler with an ECM blower motor, this Oxbox kit provides more efficient operation, saving you money otherwise spent on energy costs.
  • Dual Drainage
  • For increased installation flexibility, the Oxbox air handler features two drainage spouts.
  • Easy Access
  • Oxbox air handlers feature removable front panel and blower and coil assemblies for simple maintenance and troubleshooting.
  • Oxbox Warranty
  • 1 Year: Complete Replacement (Applies if compressor, coil or heat exchanger fails in the first year.)
  • 5 Years: Standard Parts Warranty
  • 10 Years: Compressor Replacement
    • Product Note
    In order to maintain the warranty, product must be installed by a licensed contractor. Proof of installation by a licensed contractor is required. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
    Bundle Includes 2 items
    • product kit image
      Oxbox J4AC6 - 2.0 Ton - Air Conditioner - 16.0 Nominal SEER - Single-Stage - R-410A Refrigerant
      Model: J4AC6024A1000AA
      Item Number: 110362
      Quantity: 1
    • product kit image

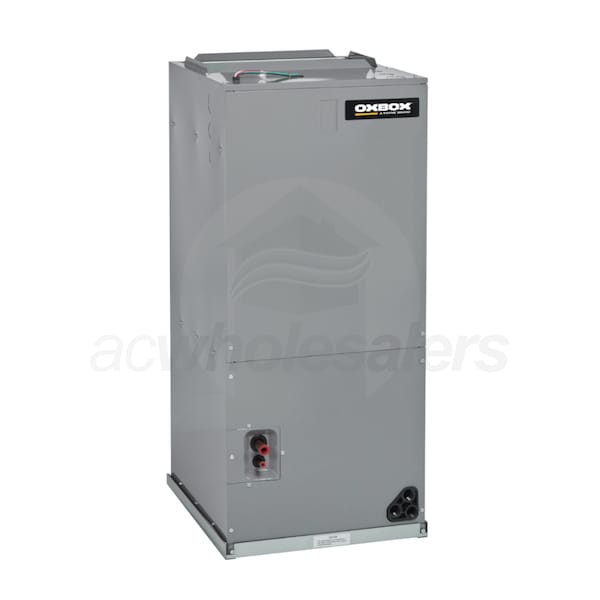

      Oxbox 3 Ton Air Conditioner Air Handler (CTM)
      Model: J4AH4E36A1B00AA
      Item Number: 110383
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    J4AC6024A1000AA Specifications
    J4AH4E36A1B00AA Specifications
    Overview
    Product Category
    Air Conditioner & Air Handler Package
    General Information
    Type
    Air Conditioner and Air Handler Package
    Product Category
    Air Conditioner & Air Handler Package
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Blower Motor Type
    ECM
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Position
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling Capacity
    24800 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.00
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    13.0
    Maximum Air Flow
    1491 CFM
    Dimensions
    Product Weight
    273 Pounds
    Shipping Weight
    320 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    203260872
    General Information
    Type
    Condenser
    Product Line
    J4AC6
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    16.0
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    74 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    13.7 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    24 15/16 Inches
    Product Width
    28 Inches
    Product Depth
    28 Inches
    Product Weight
    148 Pounds
    Shipping Height
    31 1/2 Inches
    Shipping Width
    29 1/24 Inches
    Shipping Length
    29 1/24 Inches
    Shipping Weight
    179 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    10 Years
    Overview
    Product Category
    Air Conditioning Condensers
    General Information
    Type
    Air Handler
    Product Line
    J4AH4
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Multi-Speed
    Motor Type
    ECM
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Multi-Position
    Installation Location
    Indoor
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.0 Tons
    Cooling BTU
    36000
    Maximum Air Flow
    1491 CFM
    Minimum Air Flow
    203 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    46 1/2 Inches
    Product Width
    19 5/8 Inches
    Product Depth
    21 5/8 Inches
    Product Weight
    125 Pounds
    Shipping Height
    47 19/24 Inches
    Shipping Width
    22 Inches
    Shipping Length
    25 17/24 Inches
    Shipping Weight
    141 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Air Handler
