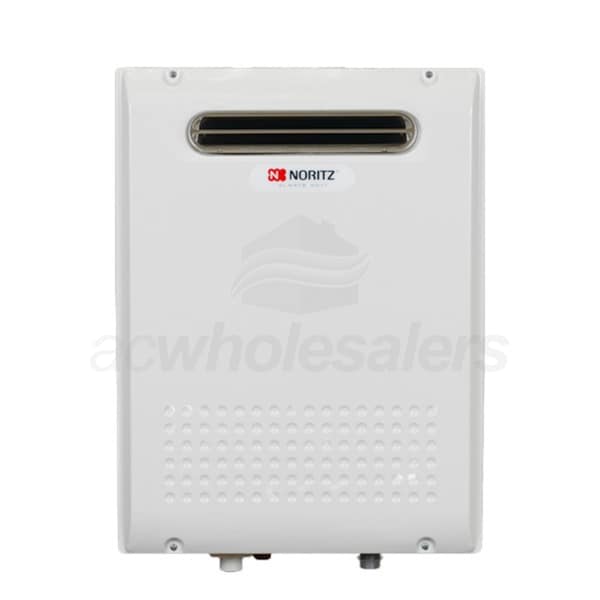

Noritz 180,000 BTU Natural Gas Outdoor Tankless Water Heater
Model: NRC98-OD-NGItem Number: 31861
(1)
Ask a Question
Enlarge Image
Specification Highlights
Condition
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
57 Pounds 57 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Type
Tankless Water Heater
Product Line
ecoTough
View More
Maximum Input Capacity (BTU/Hr)
Fuel Type
Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Installation Location
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features
Features
Overview for Noritz NRC98-OD-NG
Noritz has been in the business of providing homes with hot water for over sixty years, and introduced the industries first electronically controlled water heater in 1981. The NRC98-OD-NG represents the culmination of the experience gained over those sixty years. The ecoTough series is Noritz breakthrough line that combines temperature stability with high-efficiency technology to produce an energy-saving unit with a low carbon footprint. These condensing units are designed with commercial grade copper heat exchangers that allow for optimal performance and are backed by a 12-year heat exchanger warranty. Plus, these units are all equipped with a a power cord installation kit, condensate overflow monitoring system, service reminder function, and are adjustable for high altitude installations.Product Features
Temperature Controls
Direct Electronic Ignition
Durable Steel Casing with Polyester Coating
Compact design
Specifications
Specifications
General Information
Type
Tankless Water Heater
Product Line
ecoTough
Medium MediumMedium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type Combustion TypeCondensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type Vent TypeProducts that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Outdoor (No Venting)
Storage Type
Tankless
Installation Location
Outdoor
Mount Type
Wall
Includes Pump
No
Gas Conversion Kit
Not Available
UPC
817000013295
Performance
Maximum Input Capacity Maximum Input CapacityThe Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
180000 BTU
Minimum Input Capacity
16000 BTU
Flow Rate at 40F Temperature Rise Flow Rate at 40F Temperature RiseFlow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
8.4 GPM
Flow Rate at 45F Temperature Rise Flow Rate at 45F Temperature RiseFlow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
7.5 GPM
Flow Rate at 50F Temperature Rise Flow Rate at 50F Temperature RiseFlow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
6.7 GPM
Flow Rate at 60F Temperature Rise Flow Rate at 60F Temperature RiseFlow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
5.6 GPM
Flow Rate at 70F Temperature Rise Flow Rate at 70F Temperature RiseFlow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location.
4.8 GPM
Uniform Energy Factor Uniform Energy FactorUniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.91
Minimum Flow Rate
0.5 GPM
Ultra Low NOx Emissions Ultra Low NOx EmissionsNOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/4 Inch
Condensate Drain Size
1/2 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
24 5/24 Inches
Product Width
18 7/24 Inches
Product Depth
9 19/48 Inches
Product Weight
57 Pounds
Certifications
CSA Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
NSF Certified NSF CertifiedThe National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
12 Years
