Modine VE 50 kW Electric Unit Heater 480V/60Hz/3 Phase Vertical Orientation

Model: VE500B3301 Item Number: 48829
Ask a Question
Modine VE500B3301
PREVIOUS
NEXT
Modine VE500B3301
Modine VE500B3301
Enlarge Image
Modine VE500B3301
Modine VE500B3301
View All
Our Price: $3,813.00
synchrony card icon
$67 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
This Item Is Built To Order
Modine VE 50 kW Electric Unit Heater 480V/60Hz/3 Phase Vertical Orientation
Modine VE 50 kW Electric Unit Heater 480V/60Hz/3 Phase Vertical Orientation Model: VE500B3301 Item Number: 48829
$3,813.00
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    129 Pounds Learn More
    Type
    Standard
    Product Line
    VE
View More
Input Capacity (kW)
Select Attribute
Voltage / Phase
Select Attribute
Features
View More

Features

Overview for Modine VE500B3301

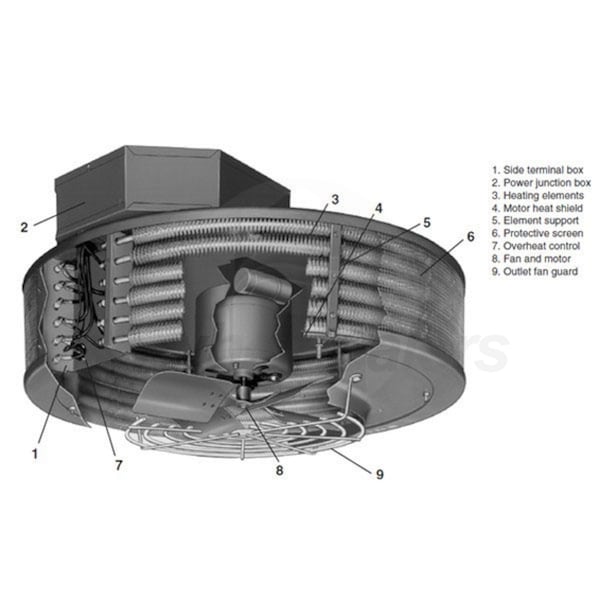

Modine's VE500 electric unit heater is a fantastic heating tool that is easy to use and service. Installation costs of electric unit heaters are comparably lower than their gas or hydronic counterparts, a standard Modine extends upon by providing fully furnished terminal blocks to simplify power and control wiring. An easily accessible bottom panel makes the VE500 easy to service and maintain, and the automatic reset control ensures that the unit heater's sensitive elements remain safe and sound even during high operating temperatures.
  • Product Features
  • Epoxy coated 14 gauge steel cabinet
  • Adjustable extruded aluminum louvers
  • Liquid to air finned tube heat exchanger core
  • Narrow gap two-piece safety fan guard
  • Heavy gauge embossed fan blades
  • Factory wired motor connections
  • Specifications
    View More

    Specifications

    General Information
    Type
    Standard
    Product Line
    VE
    Fuel Type Learn More
    Electric
    Configuration Learn More
    Vertical
    Mount Type
    Suspended
    UPC
    046629215739
    Performance
    Heating Capacity
    170600 BTU
    Maximum Input Capacity Learn More
    170600 BTU
    Heating Capacity (kW)
    50 kW
    Maximum Air Flow
    2575 CFM
    Electrical Data
    Voltage
    480 Volts
    Phase
    3
    Frequency
    60 Hz
    Current Draw
    60.21 Amps
    Dimensions
    Product Height
    10 7/8 Inches
    Product Width
    34 7/8 Inches
    Product Depth
    34 7/8 Inches
    Product Weight
    129 Pounds
    Shipping Weight
    129 Pounds
    Certifications
    Country of Origin
    United States
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    2 Years
