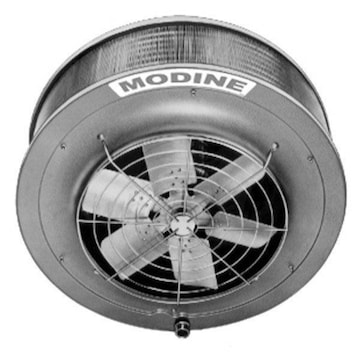

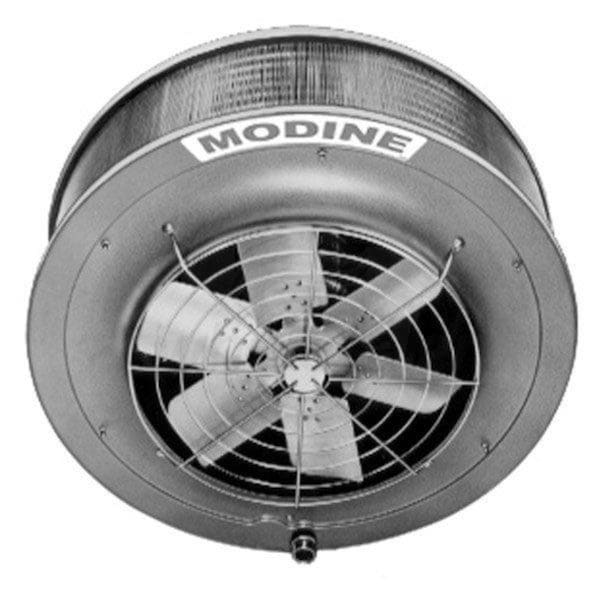

Modine V 333,000 BTU Hot Water/Steam Unit Heater Vertical Copper

Model: V333S01 Item Number: 48811
Ask a Question
Modine V333S01
PREVIOUS
NEXT
Modine V333S01
Enlarge Image
Our Price: $2,174.00
synchrony card icon
$363 / Month
Suggested monthly payments with 6 month financing.
Ships in 7-14 Business Days
Modine V 333,000 BTU Hot Water/Steam Unit Heater Vertical Copper
Modine V 333,000 BTU Hot Water/Steam Unit Heater Vertical Copper Model: V333S01 Item Number: 48811
$2,174.00
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    166 Pounds Learn More
    Product Line
    V
    Medium
    Steam/Hot Water
View More
Input Capacity (BTU/h)
Select Attribute
Features
View More

Features

Overview for Modine V333S01

Overview for Modine V333S01Modine offers the best solution for heating, ventilating, and air conditioning. From garage heaters to commercial office space Modine has an answer to ensure your space is comfortable no matter the weather. Modine offers brands such as the Hot Dawg garage heaters, Effinity high efficiency unit heaters and the Atherion packaged ventilation systems that provide the comfort of innovative, reliable, and efficient.
  • Product Features
  • Shields motor from coil heat
  • Aluminum fins
  • Totally enclosed Motor
  • Accurately balanced fan
  • Vertical fins
  • Gray-green polyester powder coat paint finish
  • Product Note
    This product is available in multiple power configurations, including:
    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz
    For ordering information, call our sales department at (866) 554-HEAT (4328).
    Specifications
    View More

    Specifications

    General Information
    Product Line
    V
    Medium Learn More
    Steam/Hot Water
    Heat Exchanger Material
    Copper
    Fuel Type Learn More
    Hydronic
    Configuration Learn More
    Vertical
    UPC
    046629185605
    Performance
    Maximum Input Capacity Learn More
    333000 BTU
    Air Throw
    45 Feet
    Maximum Air Flow
    5980 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Supply Connection
    2 1/2 Inches
    Return Connection
    1 1/2 Inches
    Product Height
    43 1/4 Inches
    Product Width
    43 1/4 Inches
    Product Depth
    14 5/8 Inches
    Product Weight
    166 Pounds
    Shipping Weight
    166 Pounds
    Certifications
    Country of Origin
    United States
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    2 Years
