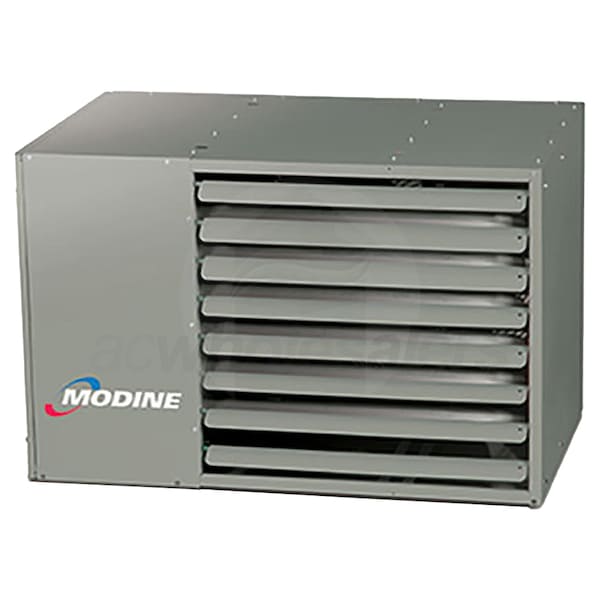

Modine PTX - 300,000 BTU - Unit Heater - NG - 82-83% Thermal Efficiency - Separated Combustion - Stainless Steel Heat Exchanger

Model: PTX300SS0111 Item Number: 150888
Modine PTX300SS0111
PREVIOUS
NEXT
Modine PTX300SS0111
Enlarge Image
Originally $3,999.00, you save 10%
Our Price: $3,599.10
synchrony card icon
$64 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Only 1 In-Stock
Ships Thursday, June 20th
Shipping to60601
Modine PTX - 300,000 BTU - Unit Heater - NG - 82-83% Thermal Efficiency - Separated Combustion - Stainless Steel Heat Exchanger
Modine PTX - 300,000 BTU - Unit Heater - NG - 82-83% Thermal Efficiency - Separated Combustion - Stainless Steel Heat Exchanger Model: PTX300SS0111 Item Number: 150888
$3,599.10
Only 1 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    270 Pounds Learn More
    270 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    PTX
    Product Category
    Unit Heater
Input Capacity (BTU/h)
Select Attribute
Fuel Type
Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Select Attribute
Heat Exchanger Material
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Modine PTX300SS0111

The PTX Gas Fired Unit Heaters by Modine are tailored for environments that have challenging atmospheric conditions, such as high levels of humidity, negative pressure, or chemicals. These heaters use combustion air from outdoors or a separate room, allowing for clean and uncontaminated indoor air. Additionally, the units can be installed in power-vented systems if needed.
  • Tubular Heat Exchanger Design
  • The unique tubular heat exchanger design of the PTX provides efficient heat transfer from combusted fuel to surrounding air in a wide variety of conditions. This translates to lower heating costs and faster warm up time.
  • Stainless Steel Heat Exchanger
  • The stainless steel heat exchanger has incredible corrosion resistance, high heat transfer and is protected by a full 10 year warranty by Modine.
  • Electric Knockouts
  • Electric wiring knockouts and field wiring connections on the PTX keep installation costs low and save time during both installation and maintenance for your contractor by simplifying all required electrical work.
  • Permanently Lubricated Motor
  • The motor on the PTX has a permanent, long lasting lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
  • Separated Combustion Venting System
  • The separated combustion venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors while providing the unit heater with outdoor air for combustion, keeping installation costs low while preserving indoor air quality.
  • Baked Polyester Paint
  • The PTX features a neutral colored baked on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    These alternate power configurations are available for this item:208V/1Ph/60Hz230V/1Ph/60Hz208V/3Ph/60Hz230V/3Ph/60Hz460V/3Ph/60Hz575V/3Ph/60HzThese alternate power configurations require unique step-down transformers for proper operation. This series of unit heaters is also available with a two stage direct spark ignition. For more information, call our sales department at (866) 554-HEAT (4328).
    Specifications
    View More

    Specifications

    General Information
    Product Line
    PTX
    Product Category
    Unit Heater
    Heat Exchanger Material
    Stainless Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Gas Conversion Kit
    Available
    Performance
    Heating Capacity
    249000 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    300000 BTU
    Thermal Efficiency
    82-83 %
    Air Throw
    69 Feet
    Maximum Air Flow
    4545 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    6 Inches
    Gas Piping Diameter
    3/4 Inch
    Product Height
    31 5/16 Inches
    Product Width
    42 25/48 Inches
    Product Depth
    22 1/24 Inches
    Product Weight
    270 Pounds
    Shipping Weight
    270 Pounds
    Certifications
    Country of Origin
    United States
    CSA Listed
    Yes
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Heat Exchanger Warranty
    10 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

    Manuals
