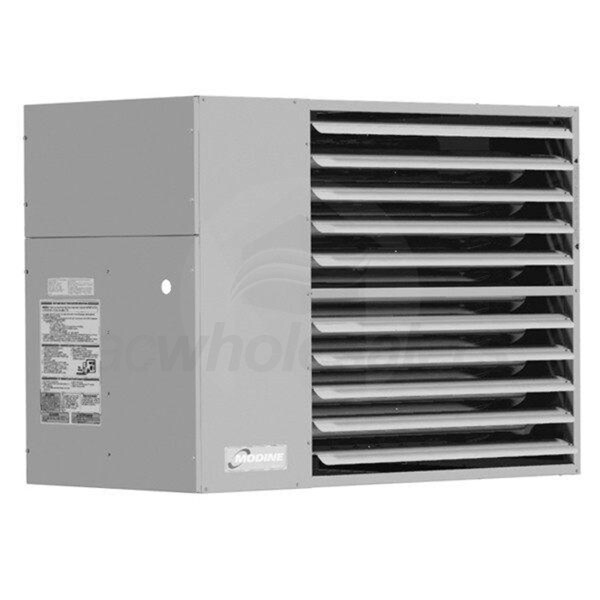

Modine PTS 200,000 BTU Unit Heater LP 80% Thermal Efficiency Separated Combustion

Model: PTS200AS0121 Item Number: 48598
Ask a Question
Modine PTS200AS0121
PREVIOUS
NEXT
Modine PTS200AS0121
Enlarge Image
Our Price: $2,203.00
synchrony card icon
$368 / Month
Suggested monthly payments with 6 month financing.
Ships in 7-14 Business Days
Modine PTS 200,000 BTU Unit Heater LP 80% Thermal Efficiency Separated Combustion
Modine PTS 200,000 BTU Unit Heater LP 80% Thermal Efficiency Separated Combustion Model: PTS200AS0121 Item Number: 48598
$2,203.00
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    215 Pounds Learn More
    Product Line
    PTS
    Heat Exchanger Material
    Aluminized Steel
View More
Input Capacity (BTU/h)
Select Attribute
Fuel Type
Learn More
Select Attribute
Heat Exchanger Material
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Modine PTS200AS0121

Overview for Modine PTS200AS0121Modine offers the best solution for heating, ventilating, and air conditioning. From garage heaters to commercial office space Modine has an answer to ensure your space is comfortable no matter the weather. Modine offers brands such as the Hot Dawg garage heaters, Effinity high efficiency unit heaters and the Atherion packaged ventilation systems that provide the comfort of innovative, reliable, and efficient.
  • Product Features
  • External gas connections
  • Uses natural or propane gas
  • Lightweight easily installs
  • Standard power exhaust
  • Permanently-lubricated motor
  • Available in both propeller fan and centrifugal blower configurations
  • Product Note
    These alternate power configurations are available for this item:
    • 208V/1Ph/60Hz
    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz
    These alternate power configurations require unique step-down transformers for proper operation. This series of unit heaters is also available with a two stage direct spark ignition. For more information, call our sales department at (866) 554-HEAT (4328).
    Specifications
    View More

    Specifications

    General Information
    Product Line
    PTS
    Heat Exchanger Material
    Aluminized Steel
    Fuel Type Learn More
    Liquid Propane
    Vent Type Learn More
    Direct Vent
    Configuration Learn More
    Horizontal
    Gas Conversion Kit
    Available
    UPC
    046629549902
    Performance
    Heating Capacity
    160000 BTU
    Maximum Input Capacity Learn More
    200000 BTU
    Thermal Efficiency
    80 %
    Air Throw
    54 Feet
    Maximum Air Flow
    3015 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    4 Inches
    Gas Piping Diameter
    1/2 Inch
    Product Height
    25 13/16 Inches
    Product Width
    42 25/48 Inches
    Product Depth
    34 7/16 Inches
    Product Weight
    215 Pounds
    Shipping Weight
    215 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    2 Years
    Heat Exchanger Warranty
    10 Years
