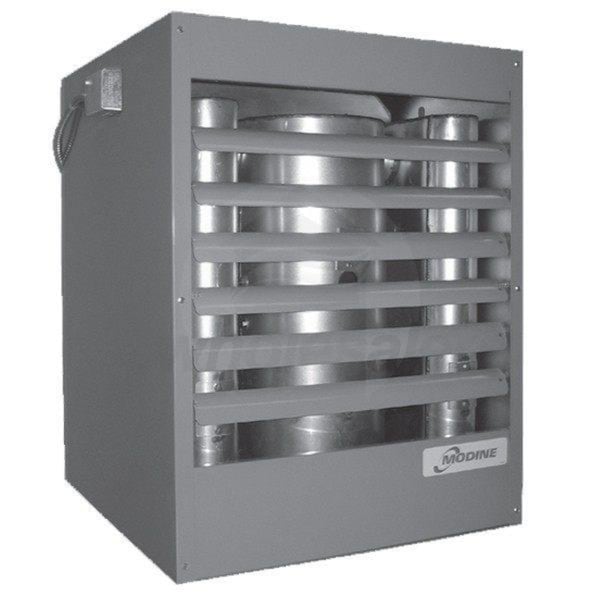

Modine POR 145,000 BTU Unit Heater Oil 80% Thermal Efficiency Chimney Vented Propeller Driven

Model: POR145B0101 Item Number: 48559
Modine POR145B0101
PREVIOUS
NEXT
Modine POR145B0101
Enlarge Image
Originally $5,800.00, you save 5%
Our Price: $5,510.00
synchrony card icon
$69 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 6-8 Weeks
Modine POR 145,000 BTU Unit Heater Oil 80% Thermal Efficiency Chimney Vented Propeller Driven
Modine POR 145,000 BTU Unit Heater Oil 80% Thermal Efficiency Chimney Vented Propeller Driven Model: POR145B0101 Item Number: 48559
$5,510.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    333 Pounds Learn More
    333 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Input Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Modine POR145B0101

Overview for Modine POR145B0101Modine offers the best solution for heating, ventilating, and air conditioning. From garage heaters to commercial office space Modine has an answer to ensure your space is comfortable no matter the weather. Modine offers brands such as the Hot Dawg garage heaters, Effinity high efficiency unit heaters and the Atherion packaged ventilation systems that provide the comfort of innovative, reliable, and efficient.
  • Advanced Flame Retention Burner
  • The flame retention burner on the POR145 produces a highly stable flame, giving the burner a 20 to 30 percent increase in combustion efficiency over non-flame retention burners.
  • Two Stage Fuel Delivery
  • The fuel unit on the POR145 uses two distinct stages to ensure maximum fuel pressure during varying degrees of operation. This allows the unit heater a high degree of functionality even in high lift applications.
  • Permanent Capacitor Split Motor
  • The permanent capacitor split motor design used for the propeller's motor works together with high grade ball bearings to reduce motor energy consumption and maintenance needs.
  • Interrupted-Duty Ignition
  • The sensors included in the ignition disable the igniter once a flame has been detected. This feature extends the life of the ignition system, reduces component noise, and reduces gas usage during the ignition process to an absolute minimum.
  • Beckett CleanCut Oil Pump
  • The POR145 comes with a Beckett CleanCut pump. The cleaning operation of the burner cuts oil flow almost immediately after power to the motor is cut, resulting is less wasted oil and higher system life.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Product Line
    POR
    Product Category
    Unit Heater
    Heat Exchanger Material
    Aluminized Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Oil
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Performance
    Heating Capacity
    145000 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    175000 BTU
    Thermal Efficiency
    80 %
    Air Throw
    50 Feet
    Maximum Air Flow
    2400 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    8 Inches
    Product Height
    35 1/4 Inches
    Product Width
    27 1/2 Inches
    Product Depth
    38 1/8 Inches
    Product Weight
    333 Pounds
    Shipping Weight
    333 Pounds
    Certifications
    Country of Origin
    United States
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
