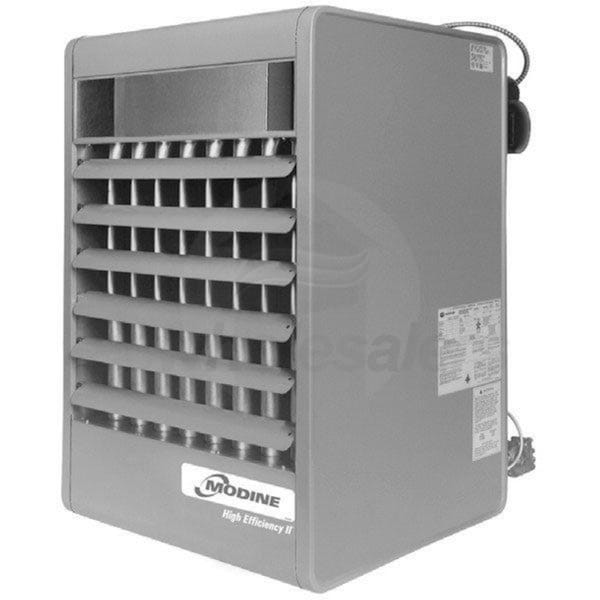

Modine PDP 300,000 BTU Unit Heater NG 83% Thermal Efficiency Power Vented Propeller
Model: PDP300AE0130Item Number: 48543
(1)
Ask a Question
Enlarge Image
Specification Highlights
Condition
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
269 Pounds 269 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Unit Heater
UPC
046629437162
View More
Input Capacity (BTU/h)
Fuel Type
Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Heat Exchanger Material
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features
Features
Overview for Modine PDP300AE0130
Overview for Modine PDP300AE0130Modine offers the best solution for heating, ventilating, and air conditioning. From garage heaters to commercial office space Modine has an answer to ensure your space is comfortable no matter the weather. Modine offers brands such as the Hot Dawg garage heaters, Effinity high efficiency unit heaters and the Atherion packaged ventilation systems that provide the comfort of innovative, reliable, and efficient.
Propeller Based Air Propulsion
The PDP300 uses a propeller for air movement. This keeps the depth of the unit heater to a minimum, maximizing possible installation points, as well as passing along significant cost savings.
Aluminized Steel Heat Exchanger
The aluminized steel heat exchanger passes lower manufacturing costs along to the consumer, is incredibly durable and is protected by a full 10 year warranty by Modine.
Electric Knockouts
Electric wiring knockouts and field wiring connections on the PDP300 keep installation costs low and save time during both installation and maintenance for your contractor by simplifying all required electrical work.
Ignition Controller
The ignition controller is designed with safety in mind and features built in ignition attempt timers. This minimizes the chance of false starts and prevents unnecessary gas from being used during the ignition process.
Permanently Lubricated Motor
The motor on the PDP300 has a permanent, effective lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
Power Venting System
The power venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors and requires minimal installation labor. This keeps installation related costs as low as possible.
Baked Polyester Paint
The PDP300 features a neutral colored baked on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
Modine Installation
Installation by a professional installer is required by the manufacturer.
Product Note
Alternate power configurations available for this item:
230V/1Ph/60Hz
This alternate power configuration requires a unique step-down transformer for proper operation. If you require a unit with an alternative power configuration, call our sales department at (866) 554-HEAT (4328).
Specifications
Specifications
Overview
Product Category
Unit Heater
UPC
046629437162
General Information
Product Line
PDP
Product Category
Unit Heater
Heat Exchanger Material
Aluminized Steel
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Vent TypeProducts that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration ConfigurationOrientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Gas Conversion Kit
Available
Performance
Heating Capacity
240000 BTU
Maximum Input Capacity Maximum Input CapacityThe Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
300000 BTU
Thermal Efficiency
83 %
Air Throw
74 Feet
Maximum Air Flow
4460 CFM
Minimum Air Flow
4460 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Gas Piping Diameter
1/2 Inch
Product Height
40 1/4 Inches
Product Width
28 5/8 Inches
Product Depth
34 3/4 Inches
Product Weight
269 Pounds
Shipping Weight
269 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
