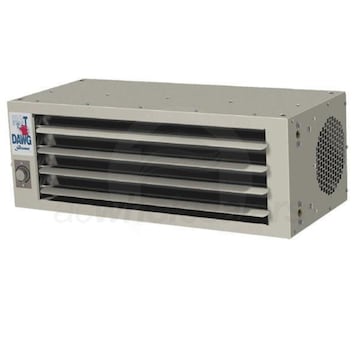

Modine Hot Dawg HHD 30,000 BTU Hot Water Unit Heater Low Profile Horizontal Copper

Model: HHD30S01 Item Number: 48463
Modine HHD30S01
PREVIOUS
NEXT
Modine HHD30S01
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    70 Pounds Learn More
    70 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
    UPC
    046629637128
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Modine HHD30S01

Overview for Modine HHD30S01Modine offers the best solution for heating, ventilating, and air conditioning. From garage heaters to commercial office space Modine has an answer to ensure your space is comfortable no matter the weather. Modine offers brands such as the Hot Dawg garage heaters, Effinity high efficiency unit heaters and the Atherion packaged ventilation systems that provide the comfort of innovative, reliable, and efficient.
  • Hush-Puppy Quiet Operation
  • The HHD30 is incredibly quiet during operation. This allows the heater to be inconspicuous yet effective at all times - it will not distract you from your work.
  • Low Profile Design
  • The HHD30 has an incredibly low profile design, measuring in at a height of only 11.46 inches. It can be mounted in nearly any orientation, keeping the unit heater out of your way.
  • Durable Casing
  • The HHD30 uses heavy gauge steel for its casing, giving it incredible durability and the means to last for years.
  • No External Moving Parts
  • This unit heater contains no external moving parts, instead using twin internal centrifugal blowers for air movement. This makes the HHD30 incredibly safe during operation, with little to no risk of objects or debris interfering with fan movement.
  • Integrates Easily Into Hydronic Systems
  • The mounting versatility of the HHD30 allows it to be easily integrated into an already existing hydronic pipe network. The internal coil's high tolerance for temperature and pressure make it compatible with a large variety of hydronic heating systems.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    UPC
    046629637128
    General Information
    Product Line
    Hot Dawg HHD
    Product Category
    Unit Heater
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Heat Exchanger Material
    Copper
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Hydronic
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Performance
    Heating Capacity
    24000 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    30000 BTU
    Maximum Air Flow
    405 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Supply Connection
    1/2 Inch
    Return Connection
    1/2 Inch
    Product Height
    11 11/24 Inches
    Product Width
    32 Inches
    Product Depth
    17 1/2 Inches
    Product Weight
    70 Pounds
    Shipping Weight
    80 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
