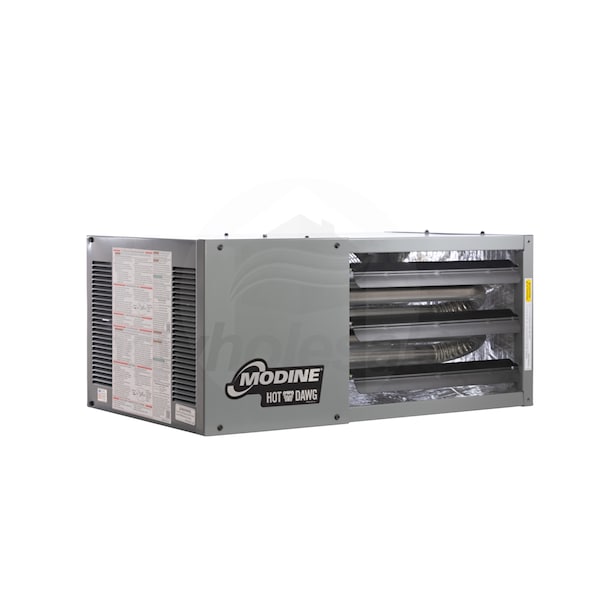

Modine Hot Dawg HD 125,000 BTU Unit Heater LP 80% Thermal Efficiency Power Vented

Model: HD125AS0121 Item Number: 48419
Ask a Question
Modine HD125AS0121
PREVIOUS
NEXT
Modine HD125AS0121
Enlarge Image
Originally $1,080.00, you save 10%
Our Price: $972.00
$162 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, May 10th
Modine Hot Dawg HD 125,000 BTU Unit Heater LP 80% Thermal Efficiency Power Vented
Modine Hot Dawg HD 125,000 BTU Unit Heater LP 80% Thermal Efficiency Power Vented Model: HD125AS0121 Item Number: 48419
$972.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    125 Pounds Learn More
    Product Line
    Hot Dawg HD
    Heat Exchanger Material
    Aluminized Steel
View More
Input Capacity (BTU/h)
Select Attribute
Fuel Type
Learn More
Select Attribute
Heat Exchanger Material
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Modine HD125AS0121

Overview for Modine HD125AS0121Modine offers the best solution for heating, ventilating, and air conditioning. From garage heaters to commercial office space Modine has an answer to ensure your space is comfortable no matter the weather. Modine offers brands such as the Hot Dawg garage heaters, Effinity high efficiency unit heaters and the Atherion packaged ventilation systems that provide the comfort of innovative, reliable, and efficient.
  • Product Features
  • Certified for residential commercial and industrial use
  • Quiet Operation
  • Attractive low-profile design and neutral paint scheme
  • Durable polyester powder paint
  • Standard power exhaust
  • Designed for Natural Gas or Propane Gas
  • Product Note
    These alternate power configurations are available for this item:
    • 208V/1Ph/60Hz
    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz
    These alternate power configurations require unique step-down transformers for proper operation. This series of unit heaters is also available with a two stage direct spark ignition. For more information, call our sales department at (866) 554-HEAT (4328).
    Specifications
    View More

    Specifications

    General Information
    Product Line
    Hot Dawg HD
    Heat Exchanger Material
    Aluminized Steel
    Fuel Type Learn More
    Liquid Propane
    Vent Type Learn More
    Power Vent
    Configuration Learn More
    Horizontal
    Gas Conversion Kit
    Available
    UPC
    046629531518
    Performance
    Heating Capacity
    100000 BTU
    Maximum Input Capacity Learn More
    125000 BTU
    Thermal Efficiency
    80 %
    Air Throw
    56 Feet
    Maximum Air Flow
    1980 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    4 Inches
    Gas Piping Diameter
    1/2 Inch
    Product Height
    20 1/2 Inches
    Product Width
    35 1/2 Inches
    Product Depth
    31 Inches
    Product Weight
    125 Pounds
    Shipping Weight
    125 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    2 Years
    Heat Exchanger Warranty
    10 Years
