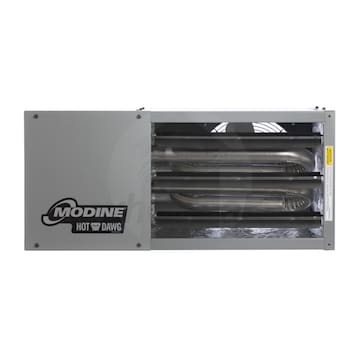

Modine Hot Dawg HD 125,000 BTU Unit Heater NG 80% Thermal Efficiency Power Vented
Model: HD125AS0111Item Number: 48421
(1)
Ask a Question
Enlarge Image
Specification Highlights
Condition
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
125 Pounds 125 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Unit Heater
UPC
046629531457
View More
Input Capacity (BTU/h)
Fuel Type
Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Heat Exchanger Material
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features
Features
Overview for Modine HD125AS0111
Overview for Modine HD125AS0111Modine offers the best solution for heating, ventilating, and air conditioning. From garage heaters to commercial office space Modine has an answer to ensure your space is comfortable no matter the weather. Modine offers brands such as the Hot Dawg garage heaters, Effinity high efficiency unit heaters and the Atherion packaged ventilation systems that provide the comfort of innovative, reliable, and efficient.
Hush-Puppy Quiet Operation
The HD125 is incredibly quiet during operation. This allows the heater to be inconspicuous yet effective at all times - it will not distract you from your work.
Low Profile Design
The HD125 has an incredibly low profile design, measuring in at a height of only 20.5 inches. It can be mounted with a one inch clearance from the ceiling on only two angle brackets, keeping the unit heater out of your way.
Aluminized Steel Heat Exchanger
The aluminized steel heat exchanger passes lower manufacturing costs along to the consumer, is incredibly durable and is protected by a full 10 year warranty by Modine.
Electric Knockouts
Electric wiring knockouts and field wiring connections on the HD125 keep installation costs low and save time during both installation and maintenance for your contractor by simplifing all required electrical work.
Permanently Lubricated Motor
The motor on the HD125 has a permanent, long lasting lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
Power Venting System
The power venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors, and requires minimal installation labor. This keeps installation related costs as low as possible.
Baked Polyester Paint
The HD125 features a neutral colored baked on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
Modine Installation
Installation by a professional installer is required by the manufacturer.
Product Note
These alternate power configurations are available for this item:
208V/1Ph/60Hz
230V/1Ph/60Hz
208V/3Ph/60Hz
230V/3Ph/60Hz
460V/3Ph/60Hz
575V/3Ph/60Hz
These alternate power configurations require unique step-down transformers for proper operation. This series of unit heaters is also available with a two stage direct spark ignition. For more information, call our sales department at (866) 554-HEAT (4328).
Specifications
Specifications
Overview
Product Category
Unit Heater
UPC
046629531457
General Information
Product Line
Hot Dawg HD
Product Category
Unit Heater
Heat Exchanger Material
Aluminized Steel
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Vent TypeProducts that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration ConfigurationOrientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Gas Conversion Kit
Available
Performance
Heating Capacity
100000 BTU
Maximum Input Capacity Maximum Input CapacityThe Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
125000 BTU
Thermal Efficiency
80 %
Air Throw
56 Feet
Maximum Air Flow
1980 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
4 Inches
Gas Piping Diameter
1/2 Inch
Product Height
20 1/2 Inches
Product Width
35 1/2 Inches
Product Depth
31 Inches
Product Weight
125 Pounds
Shipping Weight
125 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
