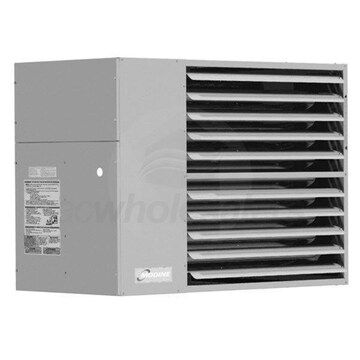

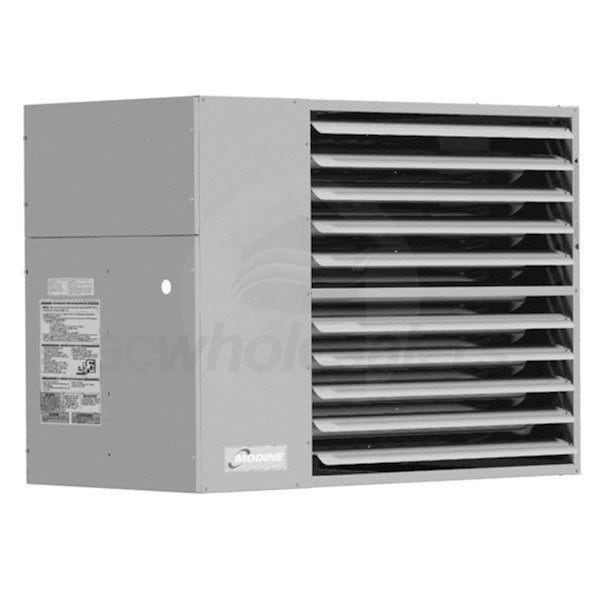

Modine BTS 175,000 BTU Unit Heater NG 80% Thermal Efficiency Separated Combustion
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
210 Pounds 210 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Unit Heater
View More
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features
Features
Overview for Modine BTS175AS0211
Overview for Modine BTS175AS0211Modine offers the best solution for heating, ventilating, and air conditioning. From garage heaters to commercial office space Modine has an answer to ensure your space is comfortable no matter the weather. Modine offers brands such as the Hot Dawg garage heaters, Effinity high efficiency unit heaters and the Atherion packaged ventilation systems that provide the comfort of innovative, reliable, and efficient.
Blower Based Air Propulsion
The BTS175 uses a blower that allows for a range of air speed control and higher moveable air volume, as well as the ability to be integrated into a building's ductwork.
Aluminized Steel Heat Exchanger
The aluminized steel heat exchanger keeps costs low, is incredibly durable and is protected by a full 10 year warranty by Modine.
Ignition Controller
The ignition controller is designed with safety in mind, and features built in ignition attempt timers. This minimizes the chance of false starts as well as preventing unneccessary gas from being used during the ignition process.
Permanently Lubricated Motor
The motor on the BTS175 has a permanent, long lasting lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
Seperated Combustion Venting System
The seperated combustion venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors while providing the unit heater with outdoor air for combustion, keeping installation costs low while preserving indoor air quality.
Baked-On Polyester Paint
The BTS175 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
Modine Installation
Installation by a professional installer is required by the manufacturer.
Product Note
These alternate power configurations are available for this item:
208V/1Ph/60Hz
230V/1Ph/60Hz
208V/3Ph/60Hz
230V/3Ph/60Hz
460V/3Ph/60Hz
575V/3Ph/60Hz
These alternate power configurations require unique step-down transformers for proper operation. This series of unit heaters is also available with a two stage direct spark ignition. For more information, call our sales department at (866) 554-HEAT (4328).
Specifications
Specifications
Overview
Product Category
Unit Heater
General Information
Product Line
BTS
Product Category
Unit Heater
Heat Exchanger Material
Aluminized Steel
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Vent TypeProducts that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Configuration ConfigurationOrientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Gas Conversion Kit
Available
Performance
Heating Capacity
140000 BTU
Maximum Input Capacity Maximum Input CapacityThe Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
175000 BTU
Thermal Efficiency
80 %
Maximum Air Flow
3241 CFM
Minimum Air Flow
1852 CFM
Electrical Data
Voltage
115/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
4 Inches
Gas Piping Diameter
1/2 Inch
Product Height
25 13/16 Inches
Product Width
42 25/48 Inches
Product Depth
52 3/16 Inches
Product Weight
210 Pounds
Shipping Weight
210 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
