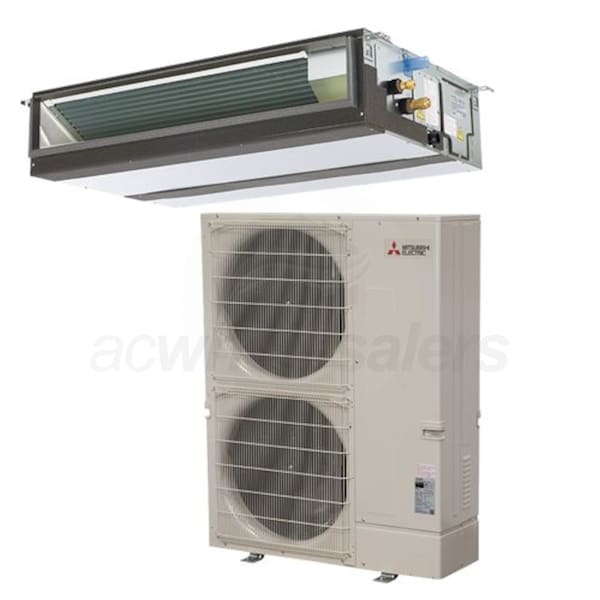

Mitsubishi 36,000 BTU 19.1 SEER Ducted Mini Split Heat Pump System

Model: PUZ-A36NKA7 PEAD-A36AA7 Item Number: 88238
Ask a Question
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
PREVIOUS
NEXT
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Enlarge Image
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Watch Video
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
View All
Our Price: $5,125.50

Ships in 7-14 Business Days
Mitsubishi 36,000 BTU 19.1 SEER Ducted Mini Split Heat Pump System
Mitsubishi 36,000 BTU 19.1 SEER Ducted Mini Split Heat Pump System Model: PUZ-A36NKA7 PEAD-A36AA7 Item Number: 88238
$5,125.50
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Truck Icon
Low Price Guarantee Learn More Shop with Confidence knowing you have the Right system at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know and we will match the price of any online competitor.

Simply call our sales or customer service department at 866-631-6389 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New Learn More This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    315 Pounds Learn More Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Concealed Duct
    Product Line
    P-Series
View More
Bundle Includes 2 items
  • (1) Mitsubishi 34,200 BTU Heat Pump Air Conditioner P-Series Condenser (PUZ-A36NKA7)
  • (1) Mitsubishi 35,000 BTU Ducted Mini Split Air Conditioner Air Handler (PEAD-A36AA7)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi PUZ-A36NKA7 PEAD-A36AA7

Overview for the Mitsubishi Ducted PUZ-A36NKA7 PEAD-A36AA7 Heat Pump Air Conditioning System

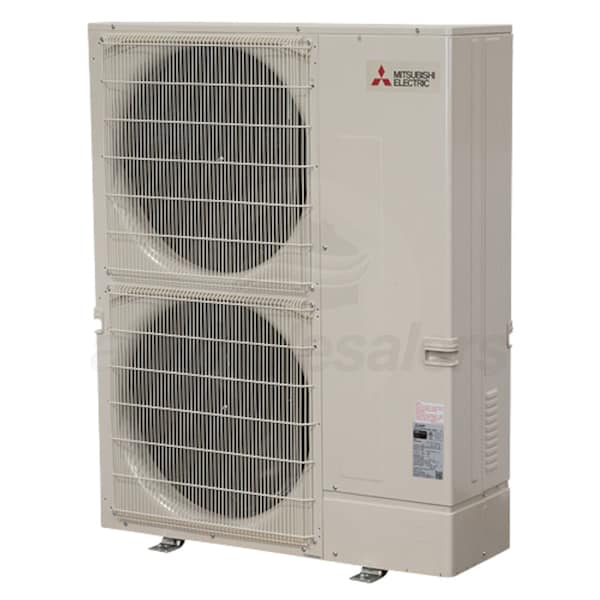

Overview for the Mitsubishi Ductless PUZ-A36NKA7 Heat Pump Air Conditioner Condenser
This Mitsubishi Ductless PUZ-A36NKA7 Heat Pump Air Conditioner Condenser is compatible with a wide range of Mitsubishi Ductless Mini Split P-Series indoor units. Users benefit from a wide range of installation possibilities. Every rugged outdoor unit is completely assembled and test-run at the factory prior to shipment resulting in industry leading reliability. The heavy-duty, commercial-grade cabinet is constructed of galvanized steel plate, finished with electrostatically applied, thermally fused acrylic or polyester powder coating for superb corrosion protection. The front fan grille is tough, high-impact ABS plastic designed for years of reliability.

But why purchase the Mitsubishi Ductless PUZ-A36NKA7 Heat Pump Air Conditioner Condenser when I can just use a window unit?
Sure you can use a window unit, but they will block the view from just about any window. they're also an open invitation for burglars to pay you a visit. Oh, and don't forget that old window units are also ugly, sweaty, and noisy and add no significant value to your home whatsoever. On the other hand, the Mitsubishi Ductless PUZ-A36NKA7 Heat Pump Air Conditioner Condenser from Mitsubishi Electric are easy to install; they work quietly, and they don't leave a large, easily-accessed opening in your otherwise secure home. Best of all the Mitsubishi Ductless PUZ-A36NKA7 Heat Pump Air Conditioner Condenser system also adds value to your home. All in all, window units may be the easy solution, but the Mitsubishi Ductless PUZ-A36NKA7 Heat Pump Air Conditioner Condenser is the smart solution. You get what you pay for when it comes to air conditioning.

The Mitsubishi Ductless PUZ-A36NKA7 Heat Pump Air Conditioner Condenser has Ductless Inverter technology.
Housed in the outdoor unit, the Mitsubishi Electric INVERTER-driven compressor integrates advanced sensor technology to detect subtle changes in temperature. Like a car's cruise control, the sensors automatically adjust the compressor speed to match system output requirements perfectly. INVERTER-driven compressors dramatically reduce the system's energy use, unlike conventional compressors that run only at one speed, resulting in an endless wasteful cycle of starting and stopping. Excellent efficiency and significant energy savings are the result. Electronic linear expansion valves are employed to meter precisely and adapt the refrigerant flow continuously, ensuring exact capacity delivery. The Mitsubishi Ductless PUZ-A36NKA7 Heat Pump Air Conditioner Condenser also utilize advanced Pulse Amplitude Modulation (PAM) circuitry. PAM adjusts the form of the current output wave to emulate the form of the supply voltage wave. These technological features allow 98 percent input power utilization.

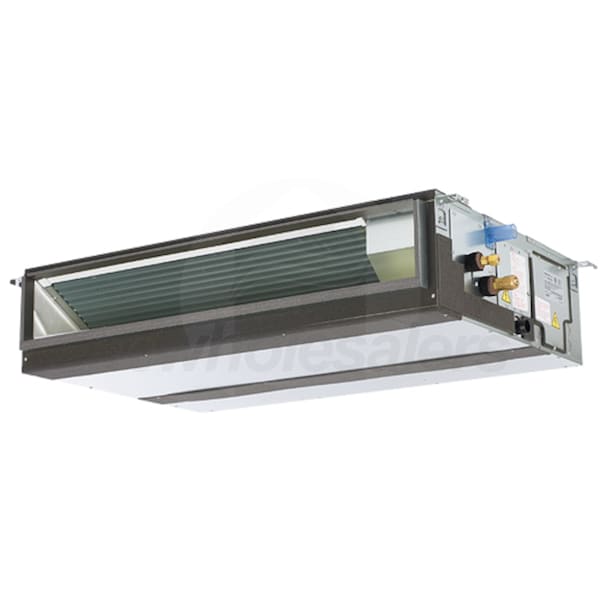

Overview for the Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler
Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler utilizes short duct runs, allowing for the conditioning of adjacent spaces or extending the range of distributed capacities within a single zone with very little visual impact to the conditioned area. With features like a built-in condensate lift mechanism, adjustable static pressure, multiple fan speeds, DRY Mode, and an operating sound as low as 23 dB(A), the Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler expands the number of application possibilities. The Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler is ideal for residential homes, retail shopping centers, larger classrooms, office complexes, conference ballrooms, fitness centers, and more.

Are there different type of Mitsubishi P-Series Ductless Air Conditioners?
Yes, Mitsubishi Electric offer a variety of types of Ductless Mini Splits when it comes to the Ductless P-Series offerings. Wall-mounted Ductless Mini Splits are classified as the Mitsubishi PKA Series, where Mitsubishi Ductless Ceiling Recessed are the PLA Series. Mitsubishi Ductless also offers Ducted equipment which is PCA Series or if you're looking for Mitsubishi Ductless technology but need it in a ducted application, no worries Mitsubishi Ductless also offers a solution. The Mitsubishi Ductless PEAD Series is a ducted solution which can branch out to multiple rooms. Mitsubishi Ductless recently added a Multi-position Air Handler similar to the unitary products under the PVA Series.

The Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler is a versatile piece of Ductless technology.
Similar to the Mitsubishi Ductless Mini Split M-Series units the Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler fills larger spaces with substantial cooling or heating from a compact, ducted package. Walk into any room where a Mitsubishi Ductless PEAD-A36AA7 Ducted Air Conditioner Air Handler is installed, and all you'll notice is the perfectly comfortable climate. What you may not notice is the unit itself, for it mounts unobtrusive and concealed design for use with short-run duct work.
  • The manufacturer model number(s): Mitsubishi PUZ-A36NKA7 PEAD-A36AA7
  • Product Note
    This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    PUZ-A36NKA7 Specifications
    PEAD-A36AA7 Specifications
    General Information
    Type
    Concealed Duct
    Product Line
    P-Series
    Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    DOE Regional Compliance Learn More In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    3/8" x 5/8"
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Heating Capacity
    38000 BTU
    SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    19.1
    EER Learn More EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.0
    HSPF Learn More HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    9.9
    Cooling Power Input
    3000 Watts
    Heating Power Input
    2410 Watts
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    23 F
    Dimensions
    Product Weight
    315 Pounds
    Shipping Weight
    319 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    201754475
    General Information
    Type
    Outdoor Condenser
    Product Line
    PUZ
    Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages Learn More Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Variable-Speed
    Performance
    Cooling BTU
    36000
    Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    52 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    25 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    52 3/4 Inches
    Product Width
    41 5/24 Inches
    Product Depth
    14 Inches
    Product Weight
    214 Pounds
    Shipping Weight
    245 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    General Information
    Type
    Concealed Duct
    Product Line
    P-Series
    Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    Motor Type
    Variable-Speed
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Maximum Air Flow
    1201 CFM
    Minimum Air Flow
    847 CFM
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    3.3 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    9 7/8 Inches
    Product Width
    55 1/8 Inches
    Product Depth
    28 7/8 Inches
    Product Weight
    101 Pounds
    Shipping Weight
    101 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
