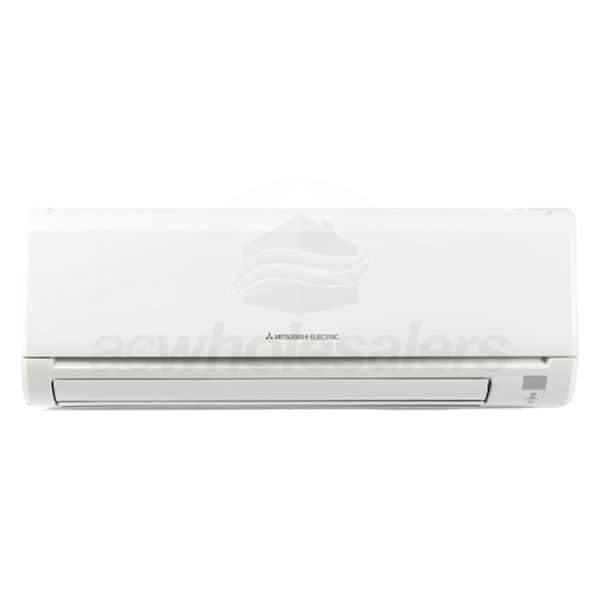

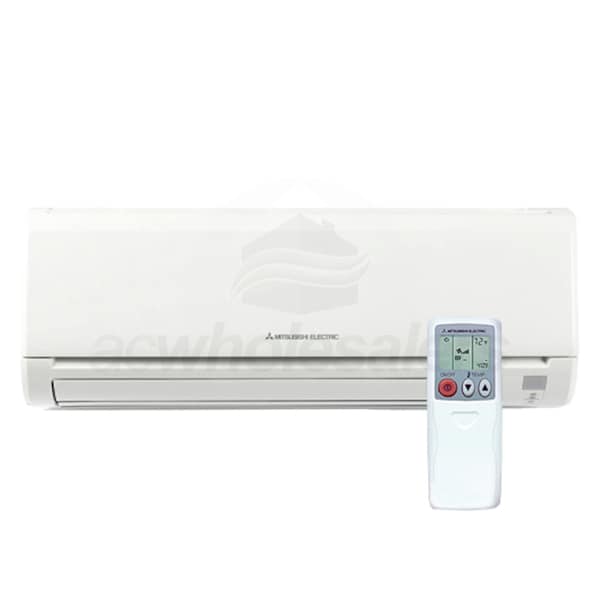

Mitsubishi - 18k BTU Cooling Only - M-Series Wall Mounted Air Conditioning System - 20.5 SEER

Model: MY-GL18NA Item Number: 65345
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Mitsubishi MY-GL18NA
PREVIOUS
NEXT
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Enlarge Image
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Watch Video
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
Mitsubishi MY-GL18NA
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    198 Pounds Learn More
    198 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Cooling Only System
View More
Bundle Includes 2 items
  • product image
    (1) Mitsubishi 18,000 BTU 20.5 SEER Ductless Air Conditioner Condenser (MUY-GL18NA-U1)
  • product image
    (1) Mitsubishi 18,000 BTU 20.5 SEER Ductless Air Conditioner Air Handler (MSY-GL18NA-U1)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi MY-GL18NA

Overview for Mitsubishi MY-GL18NA Ductless Air Conditioner Mini Split Cooling Only System
The Mr. Slim series from Mitsubishi Ductless includes this model MY-GL18NA Air Conditioner Mini Split which provides highly efficient solutions for cooling and provides personalized comfort for the individual zones in which they are installed. Mitsubishi Ductless MY-GL18NA Air Conditioner systems are nearly silent; their fans deliver air quietly and continuously with only a gentle whoosh for constant circulation and filtration. For this reason, Mitsubishi Electric split-zoning systems have long been the choice for thousands of homes, churches, schools, and libraries across the U.S. and the world.

Mitsubishi Ductless Air Conditioning Systems features in a nutshell
This Mitsubishi Ductless MY-GL18NA Air Conditioner Mini Split is packed with features making it the perfect solution for your home or business needs. This Mitsubishi Ductless MY-GL18NA Air Conditioner Mini Split has washable filters that last up to 10 years and give you another way to save money and reduce environmental impact. Advanced Multi-Stage Filtration on Mitsubishi Ductless Air Conditioner Mini Splits mean that you can capture and remove contaminants that trigger allergy and asthma symptoms, spread illness and impact air quality.Forget traditional unitary air conditioning systems why not control each zone in your home independently and even turn off zones that are not in use. Another great part of the Mitsubishi Ductless MY-GL18NA Air Conditioner Mini Split Air handlers is that they are in each room and they measure the return air and adjust automatically, rather than adjusting to conditions measured by a thermostat in a different room. Unlike traditional cooling unitary products where it's either always on or always off.

Why are you paying the electrical company for service when you aren't really in the kitchen or den?
It doesn't get any easier, remotely adjust your settings so every room in your home is the perfect temperature, avoiding unexpected cold and hot surprises upon your return. The Mitsubishi Ductless MY-GL18NA Air Conditioner Mini Split also have smart air conditioning condensers. With the Inverter Technology rather than turning on and off at certain temperature thresholds, INVERTER technology continuously ramps up or down to maintain the desired temperature.

Shhh... it's a Mitsubishi Ductless MY-GL18NA Air Conditioner Mini Split in the room
Did you know that the Mitsubishi Ductless MY-GL18NA Air Conditioner Mini Split is Quiet by design? All Mitsubishi system components are designed to work in quiet harmony with details like an insulated compressor compartment and vibration dampeners. Mitsubishi Ductless MY-GL18NA Air Conditioner Mini Split you never have to hear the disruptive clanging of a central air system. With the Mitsubishi Ductless MY-GL18NA Air Conditioner system, that noise is a thing of the past. Mitsubishi Ductless MY-GL18NA Air Conditioner Mini Split solutions and short-run ducted systems deliver cooled air directly to the rooms they serve, without the need for noisy fans.

Do I have to replace my existing unitary air conditioner?
Not at all - chances are great that you have at least one room in your home that's either too hot in the summer or too cold in the winter. Mitsubishi Ductless MY-GL18NA Air Conditioner Mini Splits can easily take care of those hot and cold spots without replacing your current system. In addition, Inverter Technology works such as rather than turning on and off at certain temperature thresholds, INVERTER technology continuously ramps up or down to maintain the desired temperature. Offering maximized energy efficiencies all while maintaining cost at a minimum.

When dealing with either renovations, new construction or replacement the Mitsubishi Ductless MY-GL18NA Air Conditioner Mini Split can fit practically anywhere.
Investing in a home renovation offers you the ultimate luxury of creating fresh new spaces you can enjoy in total comfort. With the Mitsubishi Ductless MY-GL18NA Air Conditioner Mini Split Solutions, you can maximize your comfort while saving energy. No matter the size or scale of your renovation, there are systems to meet your needs. Whether you are building a starter home or the home of your dreams, you deserve to be comfortable 100 percent of the time. The Mitsubishi Ductless MY-GL18NA Air Conditioner Mini Split Solutions allow you to provide each room with its own temperature set point. This is the modern customization you and your family deserve.Every cooling system will need to be replaced at some point. When it's time for a new system in your home, don't settle for the same outdated, inefficient technology. A Ductless Mini Split Comfort Solution from Mitsubishi Electric will improve the efficiency of your cooling, save you money and make your family more comfortable than you ever thought possible.
  • Precision Temperature Control Technology
  • The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • Blue Fin Condenser
  • Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Mitsubishi coats their condensers with an anti-rust coating to extend its lifespan.
  • Advanced Filtration System
  • The MSY-GL18NA-U1 combines a hybrid catechin nano platinum filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.
  • Smart Set
  • Mitsubishi's Smart Set function allows you to save a cooling profile consisting of a temperature, a fan speed, and an airflow direction. This profile can be activated easily with a single press of the Smart Set button on the remote controller.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSY-GE18NA-U1 can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Multiple Vane Control Options
  • Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage. When wide mode is activated, fan speed increases beyond the current setting.
  • Kumo Cloud Compatible
  • Control every zone in your home from the palm of your hand. The Kumo Cloud App allows easy access and control with any smartphone or internet browser.
    • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - The outdoor mini split wall bracket is a simple and sturdy way to mount your outdoor condenser off of the ground.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. Our convenient Mini Split Installation Starter Kits include all of the required accessories listed above. Starter kits can be added to your order from the accessories tab above.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    MUY-GL18NA-U1 Specifications
    MSY-GL18NA-U1 Specifications
    Overview
    Product Category
    Mini Split Cooling Only System
    General Information
    Type
    Wall Mounted
    Product Line
    M-Series
    Product Category
    Mini Split Cooling Only System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling Only
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    18
    Outdoor Unit Size
    18000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    20.5
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    13.4
    Cooling Power Input
    1340 Watts
    Dimensions
    Product Weight
    198 Pounds
    Shipping Weight
    226 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    8715781
    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling Only
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    18000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    54 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    15 Amps
    Dimensions
    Maximum Line Length
    100 Feet
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    33 7/16 Inches
    Product Width
    33 1/16 Inches
    Product Depth
    13 Inches
    Product Weight
    119 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Product Line
    M-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling Only
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A

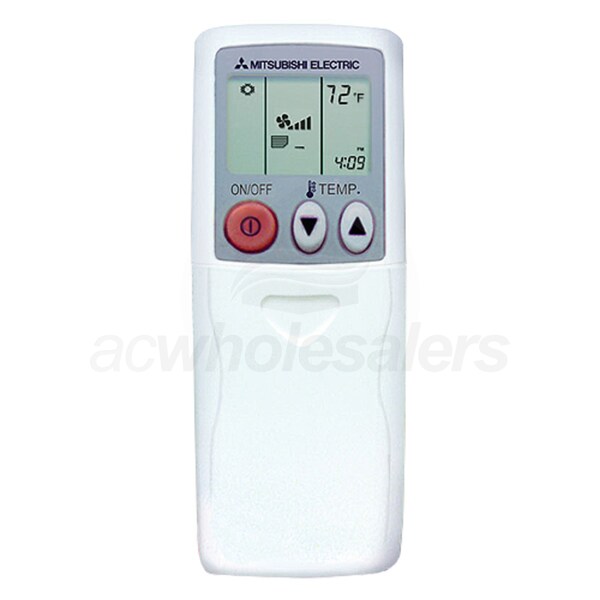

    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    18
    Installation Location
    Indoor
    Performance
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    Moisture Removal
    4.6 Pints/Hour
    Maximum Air Flow
    533 CFM
    Minimum Air Flow
    230 CFM
    Minimum Sound Level
    28 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    49 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    12 Inches
    Product Width
    36 5/16 Inches
    Product Depth
    9 13/16 Inches
    Product Weight
    22 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
