Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    272 Pounds Learn More
    272 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Product Line
    M-Series H2i

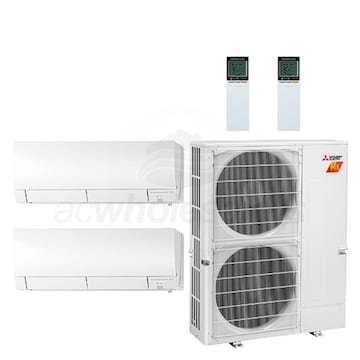

Bundle Includes 4 items
  • product image
    (1) Mitsubishi 36,000 BTU Ductless Multi Zone Hyper Heat Pump Condenser (MXZ-4C36NAHZ2-U1)
  • product image
    (1) Mitsubishi FH-Series 18k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH18NA2)
  • product image
    (1) Mitsubishi FH-Series 12k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH12NA)
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-

Overview for Mitsubishi MXZ-4C36NAHZ-U1 MSZ-FH12NA MSZ-FH18NA2 With the Mr. Slim series from Mitsubishi Electric you can enjoy ideal levels of comfort in the rooms you use most with Mitsubishi's multiroom system. Each room (zone) operates independently. People in different rooms the kitchen, master bedroom, or living room can With the Mr. Slim series from Mitsubishi Electric you can enjoy temperature settings that make each of them most comfortable. If youre looking for a complete comfort solution for several different rooms, the MXZ multi-room system is the right choice. The system is flexible enough to conform to a particular cooling and heating need and offers numerous different indoor unit combinations. An MXZ multi-room system is an excellent choice for supplementing capacity to a current system, conditioning newly furnished spaces, or new additions and replacing a system within a home. Homeowners can also benefit from lower energy costs year-round while staying comfortable thanks to Mitsubishi Electrics energy-efficient technologies that are a part of every system that we make.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 4 items
    • product kit image
      Mitsubishi 36,000 BTU Ductless Multi Zone Hyper Heat Pump Condenser
      Model: MXZ-4C36NAHZ2-U1
      Item Number: 110568
      Quantity: 1
    • product kit image

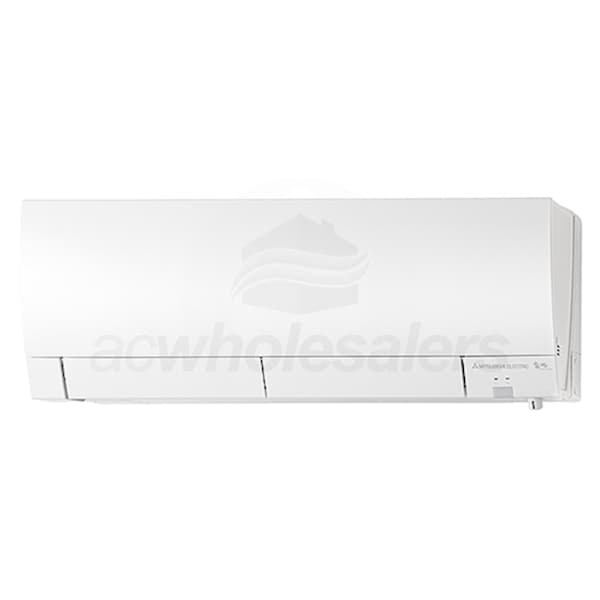

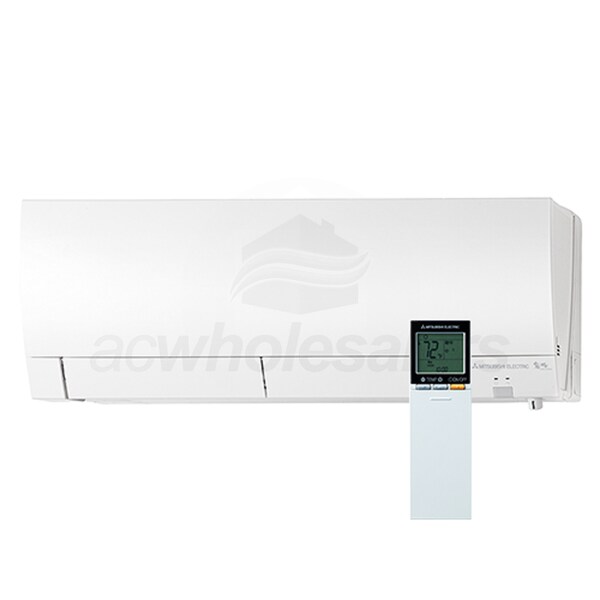

      Mitsubishi FH-Series 18k BTU Wall Mounted Unit - For Multi or Single-Zone
      Model: MSZ-FH18NA2
      Item Number: 65038
      Quantity: 1
    • product kit image
      Mitsubishi FH-Series 12k BTU Wall Mounted Unit - For Multi or Single-Zone
      Model: MSZ-FH12NA
      Item Number: 30744
      Quantity: 1
    • product kit image
      Mitsubishi M-Series - 3 Ports - Branch Box
      Model: PAC-MKA31BC
      Item Number: 72502
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Wall Mounted
    Product Line
    M-Series H2i
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    2
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12 + 18
    Outdoor Unit Size
    36000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    20.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    14.0
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    11.3
    Cooling Power Input
    2570 Watts
    Heating Power Input
    3340 Watts
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    23 F
    Dimensions
    Product Weight
    272 Pounds
    Shipping Weight
    305 Pounds
    Certifications
    AHRI Certified
    Yes
    AHRI Reference Number
    204834292
    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series H2i
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    4
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Branch Box Required Learn More
    Branch Box Required
    By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units.
    Yes
    Base Pan Heater Included
    Yes
    Performance
    Cooling BTU
    36000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    53 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    23 F
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    42 Amps
    Recommended Breaker Size
    50 Amps
    Dimensions
    Maximum Line Length
    492 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    52 11/16 Inches
    Product Width
    41 17/48 Inches
    Product Depth
    14 Inches
    Product Weight
    276 Pounds
    Shipping Weight
    286 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Product Line
    M-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A

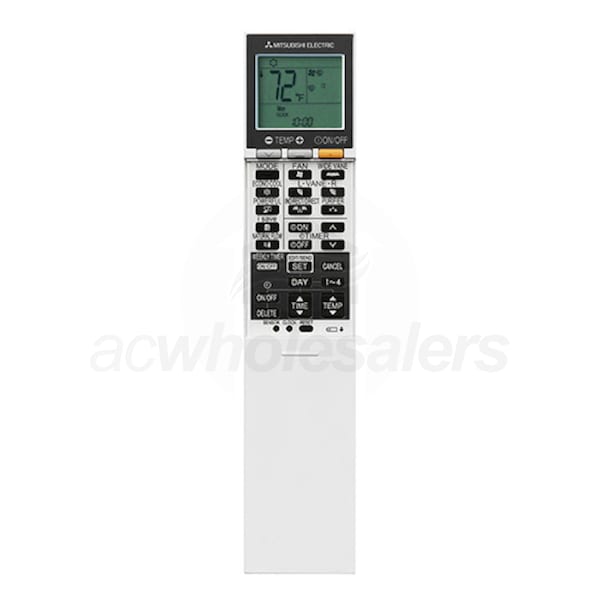

    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    18
    Installation Location
    Indoor
    Performance
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    Moisture Removal
    2.7 Pints/Hour
    Maximum Air Flow
    514 CFM
    Minimum Air Flow
    194 CFM
    Minimum Sound Level
    25 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    46 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    12 13/16 Inches
    Product Width
    36 3/4 Inches
    Product Depth
    9 3/8 Inches
    Product Weight
    37 Pounds
    Shipping Weight
    45 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Wall Mounted
    Product Line
    M-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Moisture Removal
    1.9 Pints/Hour
    Maximum Air Flow
    398 CFM
    Minimum Air Flow
    137 CFM
    Minimum Sound Level
    21 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    41 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    12 11/16 Inches
    Product Width
    36 7/16 Inches
    Product Depth
    9 3/16 Inches
    Product Weight
    29 Pounds
    Shipping Weight
    35 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Branch Box
    Product Line
    M-Series
    Ports Quantity
    3
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Suction Connection Size
    3/8 Inch
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Product Height
    6 11/16 Inches
    Product Width
    21 5/16 Inches
    Product Depth
    16 17/48 Inches
    Product Weight
    19 Pounds
    Shipping Weight
    24 Pounds
    Warranty Information
    Parts Warranty Days
    90
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Manuals
    View More

    Share
    ×
    Mitsubishi Wall Mounted 2-Zone H2i System - 36,000 BTU Outdoor - 12k + 18k Indoor - 19.1 SEER
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Loading
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Watch Video
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    Mitsubishi MXZ-4C36NAHZ MSZ-FH12NA MSZ-FH18NA2 PAC-
    ×
    Customer Review Images
    Loading
