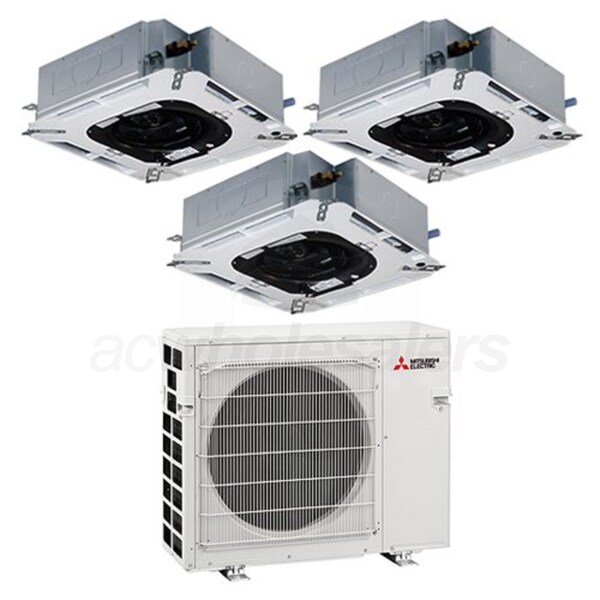

Mitsubishi 27,000 BTU 19 SEER Tri Zone Heat Pump System 9+9+9

Model: MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG Item Number: 87650
Ask a Question
Mitsubishi MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG
PREVIOUS
NEXT
Mitsubishi MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG
Mitsubishi MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG
Mitsubishi MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG
Mitsubishi MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG
Mitsubishi MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG
Enlarge Image
Mitsubishi MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG
Mitsubishi MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG
Mitsubishi MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG
Mitsubishi MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG
Mitsubishi MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG
View All
Our Price: $4,468.50
synchrony card icon
$56 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Backordered
Estimated Availability November 23, 2021
Mitsubishi 27,000 BTU 19 SEER Tri Zone Heat Pump System 9+9+9
Mitsubishi 27,000 BTU 19 SEER Tri Zone Heat Pump System 9+9+9 Model: MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG Item Number: 87650
$4,468.50
Backordered
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    209 Pounds Learn More
    Type
    Ceiling Cassette
    Product Line
    M-Series
View More
Bundle Includes 4 items
  • product image
    (1) Mitsubishi 28,600 BTU Ductless Multi Zone Heat Pump Condenser (MXZ-3C30NA2-U1)
  • product image
    (3) Mitsubishi - 9k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (SLZ-KF09NA.TH-NG)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi MXZ-3C30NA2 3-SLZ-KF09NA.TH-NG

Overview for Mitsubishi MXZ3C30NA2 3-SLZKA09NA4Mitsubishi Ceiling-recessed cassette ductless heat pump units offer a wide airflow pattern for better air distribution in a less obtrusive style. Install SLZ in a hard ceiling or in a drop ceiling. Mitsubishi Electric delivers the world's only two-pipe simultaneous cooling and heating system. These innovative systems are split into two efficient units. Indoor units come in ductless and ducted variations and are designed to be placed just about anywhere in interior spaces. Condensing units have a wide range of capacities, can utilize a number of cooling and heating energy sources and are compact and quiet, simplifying system design.
  • The manufacturer model number(s): Mitsubishi MXZ3C30NA2 SLZKA09NA4 SLZKA09NA4 SLZKA09NA4
  • Ceiling grill required for installation - Sold Separately.
  • Thermostat required for operation - Sold Separately.
  • Product Note
    This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    MXZ-3C30NA2-U1 Specifications
    SLZ-KF09NA.TH-NG Specifications
    General Information
    Type
    Ceiling Cassette
    Product Line
    M-Series
    Operating Mode Learn More
    Heating and Cooling
    Number of Zones Learn More
    3
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    9 + 9 + 9
    Outdoor Unit Size
    30000 BTU
    DOE Regional Compliance Learn More
    Nationwide
    Performance
    SEER Learn More
    19.0
    EER Learn More
    10.6
    HSPF Learn More
    10.6
    Cooling Power Input
    2680 Watts
    Heating Power Input
    2150 Watts
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Dimensions
    Product Weight
    209 Pounds
    Shipping Weight
    236 Pounds
    Certifications
    AHRI Certified
    Yes
    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series
    Operating Mode Learn More
    Heating and Cooling
    Maximum Number of Zones
    3
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    30000
    Maximum Sound Level Learn More
    56 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    25 Amps
    Dimensions
    Maximum Line Length
    230 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    1/2 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Product Height
    31 17/48 Inches
    Product Width
    37 5/12 Inches
    Product Depth
    13 Inches
    Product Weight
    137 Pounds
    Shipping Weight
    147 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Ceiling Cassette
    Product Line
    M-Series
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Indoor Unit Size(s) Learn More
    9
    Installation Location
    Indoor
    Grille
    Not Included
    Required Grille Model
    SLP-18FAEU
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    335 CFM
    Minimum Air Flow
    207 CFM
    Minimum Sound Level
    25 dB
    Maximum Sound Level Learn More
    31 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    9 1/2 Inches
    Product Width
    22 7/16 Inches
    Product Depth
    22 7/16 Inches
    Product Weight
    31 Pounds
    Shipping Weight
    37 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
