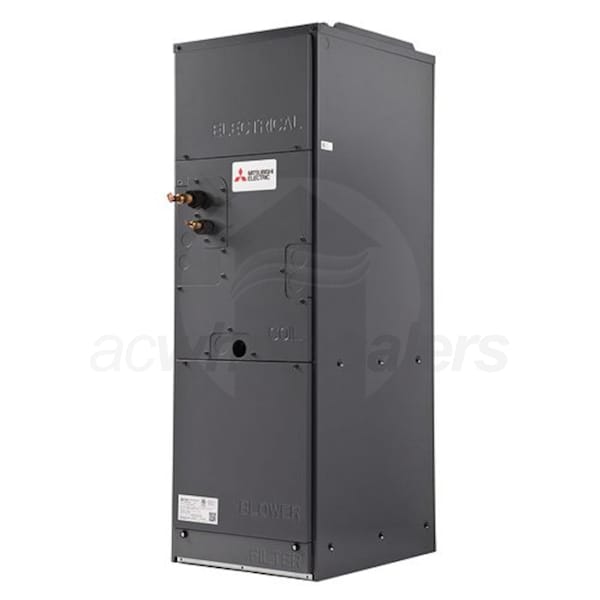

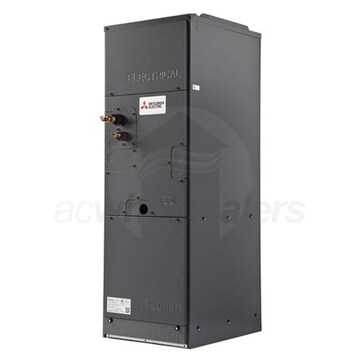

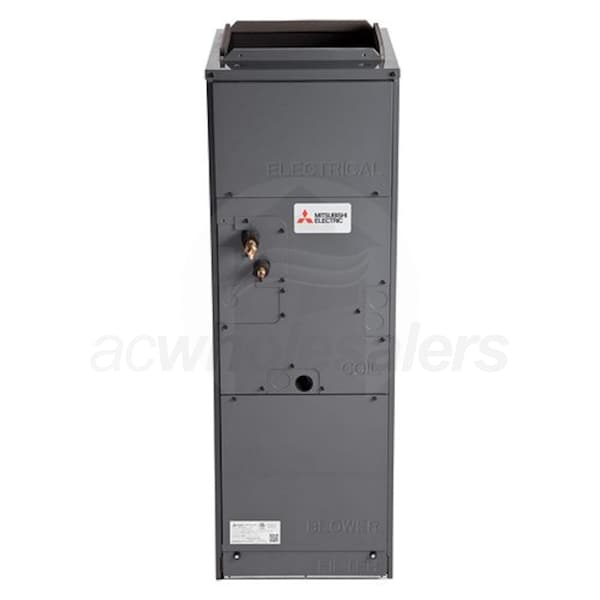

Mitsubishi 18,000 BTU Multi Position Ducted Heat Pump Air Handler

Model: MVZ-A18AA7 Item Number: 84614
Ask a Question
Mitsubishi MVZ-A18AA7
PREVIOUS
NEXT
Mitsubishi MVZ-A18AA7
Mitsubishi MVZ-A18AA7
Mitsubishi MVZ-A18AA7
Enlarge Image
Mitsubishi MVZ-A18AA7
Mitsubishi MVZ-A18AA7
Mitsubishi MVZ-A18AA7
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    117 Pounds Learn More
    117 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Air Handler
    Product Line
    M-Series
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Mitsubishi MVZ-A18AA7

Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center at 866-631-6389 option 1 for alternate options.

Overview for Mitsubishi MVZ-A18AA7 Mitsubishi MVZ-A18AA7 18,000 BTU Multi Position Ducted Heat Pump Air Handler.
Specifications
View More

Specifications

General Information
Type
Air Handler
Product Line
M-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
585 CFM
Minimum Air Flow
410 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
3 Amps
Recommended Breaker Size
15 Amps
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
50 1/4 Inches
Product Width
17 Inches
Product Depth
21 5/8 Inches
Product Weight
117 Pounds
Shipping Weight
117 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
