Mitsubishi - 15k BTU Cooling + Heating - M-Series H2i plus Wall Mounted Air Conditioning System - 22.2 SEER

Model: MSZ-FS15NA MUZ-FS15NA Item Number: 112558
Mitsubishi MSZ-FS15NA MUZ-FS15NA
PREVIOUS
NEXT
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Enlarge Image
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
Mitsubishi MSZ-FS15NA MUZ-FS15NA
View All
Our Price: $2,315.25
synchrony card icon
$386 / Month
Suggested monthly payments with 6 month financing.
Backordered
Estimated Availability January 27, 2023
Mitsubishi - 15k BTU Cooling + Heating - M-Series H2i plus Wall Mounted Air Conditioning System - 22.2 SEER
Mitsubishi - 15k BTU Cooling + Heating - M-Series H2i plus Wall Mounted Air Conditioning System - 22.2 SEER Model: MSZ-FS15NA MUZ-FS15NA Item Number: 112558
$2,315.25
Backordered
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    146 Pounds Learn More
    146 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
Bundle Includes 2 items
  • product image

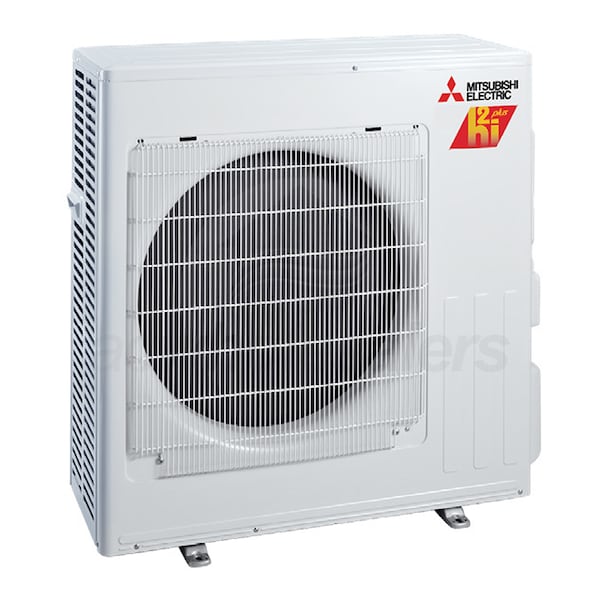

    (1) Mitsubishi 15,000 BTU H2i Outdoor Ductless Heat Pump Condenser (MUZ-FS15NA)
  • product image
    (1) Mitsubishi FS-Series 15k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FS15NA)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi MSZ-FS15NA MUZ-FS15NA

Take hyper-heating technology to a new a whole new level with H2i plus. H2i plus systems provide 100% heating capacity down to -5 Degrees Fahrenheit outdoor ambient (without wind chill) temperature. Control your comfort with room-by-room control, a more efficient way to cool and heat your home or business. Mitsubishi Electric is the top selling brand of zoned air conditioning and heating systems. You will enjoy cleaner air and superior control of cooling, heating. In addition to being quiet, intelligent and efficient, our systems provide extraordinary service life for a lower cost of ownership. With this technology, it's simple to assign your bedrooms, kitchen, living room, office, basement and other spaces to different "zones" so each room is always comfortable. Once you decide what temperature you'd like a specific zone to be, the system will quietly maintain that temperature while using the least amount of energy needed. For additional energy savings, you have the option to not cool and heat unused rooms.

PLEASE NOTE: This product does not include a base pan heater.
For High Heat capacity the base pan heater is necessary: Item Number - MAC-640BH-U
  • Advanced Filtration System
  • The MSZ-FS Series uses Triple-action Filtration: Nano Platinum Filter, Deodorizing Filter and Electrostatic Anti-Allergy Enzyme Filter.
  • 3D i-see Sensor
  • The MSZ-FS Series 3D i-see Sensor monitors its zone for fluctuations in temperature. If it detects an underserved area, it will temporarily direct airflow to that zone. It also enters energy saving mode if no human heat signatures are detected.
  • Dual Barrier Coating
  • A special coating is applied to the heat exchanger, vanes and fan to prevent hydrophilic and hydrophobic dirt build-up.
  • Multiple fan speed
  • Quiet, Low, Medium, High, Super-high and Auto.
  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Vane Control
  • Thanks to its Double Vane features it separates airflow to deliver air across a large area and can simultaneously deliver to air separate sections of a room to generate a more comfortable natural airflow pattern.
  • Precision Temperature Control Technology
  • INVERTER-driven compressor and LEV provide high efficiency and comfort while using only the energy needed to maintain maximum performance.
  • H2i Technology
  • H2i plus performance offers 100% heating capacity at -5 degrees and 70% to 81% heating capacity at -13 degrees Fahrenheit.
  • Anti-Corrosion
  • Blue Fin anti-corrosion treatment is applied to the outdoor unit heat exchanger for increased coil protection and longer life.
  • Multiple control options available:
  • Back-lit screen handheld remote controller (provided with unit)
  • kumo cloud smart device app for remote access
  • Third-party interface options
  • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Wall Mounted
    Product Line
    M-Series
    Product Sub-line
    Hyper-Heating
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    15
    Outdoor Unit Size
    15000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    1/4" x 1/2"
    Performance
    Cooling BTU
    15000
    Cooling Capacity
    15000 BTU
    Heating Capacity
    16000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    22.2
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    12.5
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Weight
    146 Pounds
    Shipping Weight
    163 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    205975734
    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series
    Product Sub-line
    Hyper-Heating
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    15000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    20 Amps
    Dimensions
    Maximum Line Length
    100 Feet
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    34 5/8 Inches
    Product Width
    33 1/16 Inches
    Product Depth
    13 Inches
    Product Weight
    117 Pounds
    Shipping Weight
    134 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Product Line
    M-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    15
    Installation Location
    Indoor
    Performance
    Cooling BTU
    15000
    Cooling Capacity
    15000 BTU
    Moisture Removal
    4 Pints/Hour
    Maximum Air Flow
    411 CFM
    Minimum Air Flow
    225 CFM
    Minimum Sound Level
    25 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    46 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    12 Inches
    Product Width
    36 7/16 Inches
    Product Depth
    9 3/16 Inches
    Product Weight
    29 Pounds
    Shipping Weight
    34 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Mini Split System Components
