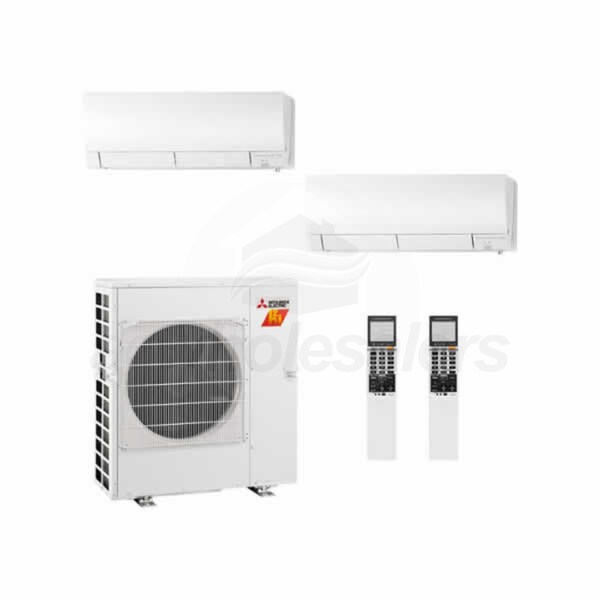

Mitsubishi 36,000 BTU 19 SEER h2i Dual Zone Heat Pump System 18+18

Model: MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E Item Number: 56952
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
PREVIOUS
NEXT
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Enlarge Image
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E
View All
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    263 Pounds Learn More
    263 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Product Line
    M-Series H2i
View More
Bundle Includes 4 items
  • product image
    (1) Mitsubishi 28,600 BTU Ductless Multi Zone Hyper Heat Pump Condenser (MXZ-3C30NAHZ2)
  • product image
    (2) Mitsubishi FH-Series 18k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH18NA2)
  • product image
    (1) Mitsubishi Port Adaptor 3/8 Inch Female to 1/2 Inch Male (MAC-A454JP-E)
View Full Bundle
Outdoor Unit BTU/h
Select Attribute
Indoor Units Sizes
Learn More
Indoor Units Sizes
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi MXZ-3C30NAHZ2 2-MSZ-FH18NA2 MAC-A454JP-E

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. This is a two zone mini split system designed to give you individual control over the temperature in multiple rooms. An efficient MXZ-3C30NAHZ2 outdoor condenser, built with advanced technology, is combined with quiet wall-mounted MSZ-FE indoor units and two wireless remote controllers for the perfect marriage of convenience and comfort. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
  • Precision Temperature Control Technology
  • The MXZ-3C30NAHZ2 outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • i-see Sensor 3D
  • The MSZ-FH's i-see Sensor 3D monitors its zone for fluctuations in temperature. If it detects an underserved area, the unit will temporarily direct airflow to that zone. It also enters energy saving mode if no human heat signatures are detected.
  • Advanced Filtration System
  • The MSZ-FH18NA indoor units use two advanced filters when circulating air. The deodorizing filter absorbs any offending smells, while the second is an enzyme-based anti-allergy filter that captures and destroys bacteria and particulates.
  • Hot-Start
  • In heating mode, Mitsubishi's hot start technology prevents cold drafts by stalling fan operation while the heat exchanger is warming up.
  • Powerful Mode
  • The powerful setting on the MSZ-FH18NA indoor units makes it easy to get your zones to the perfect temperature quickly. When activated, the unit temporarily increases refrigerant flow and fan speed to provide rapid cooling or heating.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, each MSZ-FH18NA can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves your comfort and reduces both mold growth and the chance of property damage in the conditioned space.
  • Vane Control
  • Optimal air flow is easy to achieve with this system thanks to the vane control options. All MSZ-GE indoor units have access to five different horizontal vane positions, an auto mode, and a swing mode.
  • Recommended line set sizes for indoor unit connectivity:
  • MSZ-FH18NA2: 1/4" x 1/2" Line Set (Qty 2)
    • Product Note
    This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 4 items
    • product kit image
      Mitsubishi 28,600 BTU Ductless Multi Zone Hyper Heat Pump Condenser
      Model: MXZ-3C30NAHZ2-U1
      Item Number: 68689
      Quantity: 1
    • product kit image
      Mitsubishi FH-Series 18k BTU Wall Mounted Unit - For Multi or Single-Zone
      Model: MSZ-FH18NA2
      Item Number: 65038
      Quantity: 2
    • product kit image
      Mitsubishi Port Adaptor 3/8 Inch Female to 1/2 Inch Male
      Model: MAC-A454JP-E
      Item Number: 30568
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    MXZ-3C30NAHZ2-U1 Specifications
    MSZ-FH18NA2 Specifications
    MAC-A454JP-E Specifications
    General Information
    Type
    Wall Mounted
    Product Line
    M-Series H2i
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    2
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    18 + 18
    Base Pan Heater Included
    Yes
    Outdoor Unit Size
    30000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    19.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    10.6
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    10.6
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Dimensions
    Product Weight
    263 Pounds
    Shipping Weight
    267 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    7451794
    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series H2i
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    3
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Base Pan Heater Included
    Yes
    Performance
    Cooling BTU
    30000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    58 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    29.9 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Maximum Line Length
    230 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    1/2 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Product Height
    41 7/24 Inches
    Product Width
    37 5/12 Inches
    Product Depth
    13 Inches
    Product Weight
    189 Pounds
    Shipping Weight
    199 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Product Line
    M-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    18
    Installation Location
    Indoor
    Performance
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    Moisture Removal
    2.7 Pints/Hour
    Maximum Air Flow
    514 CFM
    Minimum Air Flow
    194 CFM
    Minimum Sound Level
    25 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    46 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    12 13/16 Inches
    Product Width
    36 3/4 Inches
    Product Depth
    9 3/8 Inches
    Product Weight
    37 Pounds
    Shipping Weight
    45 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Port Adapter
    Product Category
    Mini Split Accessories
    Connection Type
    Flared
    Dimensions
    End 1 Connection Size
    3/8 Inch
    End 2 Connection Size
    1/2 Inch
    Product Weight
    0.5 Pounds
    Warranty Information
    Parts Warranty Days
    90
    Overview
    Product Category
    Mini Split Accessories
