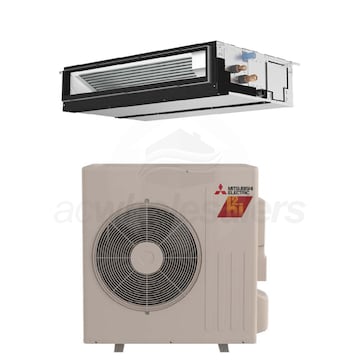

Mitsubishi P-Series H2i Concealed Duct Mini Split Heat Pump System - Single-Zone - 15k BTU - 17.2 SEER2 - R-454B

Model: SUZ-AA15NLHZ PEAD-AA15NL Item Number: 168805
Mitsubishi SUZ-AA15NLHZ PEAD-AA15NL
PREVIOUS
NEXT
Mitsubishi SUZ-AA15NLHZ PEAD-AA15NL
Mitsubishi SUZ-AA15NLHZ PEAD-AA15NL
Mitsubishi SUZ-AA15NLHZ PEAD-AA15NL
Enlarge Image
Mitsubishi SUZ-AA15NLHZ PEAD-AA15NL
Mitsubishi SUZ-AA15NLHZ PEAD-AA15NL
Mitsubishi SUZ-AA15NLHZ PEAD-AA15NL
View All
Our Price: $4,156.50
synchrony card icon
$52 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 4-6 Weeks
Mitsubishi P-Series H2i Concealed Duct Mini Split Heat Pump System - Single-Zone - 15k BTU - 17.2 SEER2 - R-454B
Mitsubishi P-Series H2i Concealed Duct Mini Split Heat Pump System - Single-Zone - 15k BTU - 17.2 SEER2 - R-454B Model: SUZ-AA15NLHZ PEAD-AA15NL Item Number: 168805
$4,156.50
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    175 Pounds Learn More
    175 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Concealed Duct
    Product Line
    P-Series H2i
Bundle Includes 2 items
  • product image
    (1) Mitsubishi M-Series H2i Outdoor Condenser - Single-Zone - 15k BTU - R-454B (SUZ-AA15NLHZ)
  • product image
    (1) Mitsubishi P-Series Concealed Duct Unit - Multi or Single-Zone - 15k BTU - R-454B (PEAD-AA15NL)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi SUZ-AA15NLHZ PEAD-AA15NL

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The SUZ-AA15NLHZ PEAD-AA15NL is a single-zone heat pump mini split system designed to bring unobtrusive heating and cooling to any room in a large home or business while taking advantage of existing ductwork. Featuring H2i technology, the SUZ-AA15NLHZ PEAD-AA15NL provides 100% heating capacity down to 5 degrees Fahrenheit outdoor ambient temperature. A concealed duct indoor unit, PEAD-AA15NL, is paired with an outdoor condenser that uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With the PEAD-AA15NL, a small air register is the only evidence of that a powerful and efficient mini split is servicing your room. Mitsubishi's condensers are constructed with industrial-grade materials to ensure consistent performance in the harshest conditions, making this system ideal for critical applications that require constant conditioning.
  • H2i Technology
  • Low or negative ambient temperatures won't bother the SUZ-AA. It is rated for 100% heating capacity at 5 degrees and continues to provide heating in outdoor conditions as low as -13 degrees Fahrenheit.
  • Precision Temperature Control Technology
  • The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • Multiple Vane Control Options
  • Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage.
  • Condensate Removal System
  • The PEAD-AA contains an internal drain mechanism capable of lifting condensate 27-9/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Integrated Base Pan Heater
  • These SUZ-AA outdoor condensers have a factory-installed base pan heater in the drain pain. This prevents condensate from freezing and damaging the unit in frigid climates.
  • Blue Fin Condenser
  • Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Mitsubishi coats their condensers with an anti-rust coating to extend its lifespan.
  • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit.
    Mitsubishi products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://metahvac.com/ within 90 days of installation.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Concealed Duct
    Product Line
    P-Series H2i
    Product Sub-line
    Hyper-Heating
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-454B
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    15
    Outdoor Unit Size
    15 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    1/4" x 1/2"
    Performance
    Cooling BTU
    15000
    Cooling Capacity
    15000 BTU
    Heating Capacity
    18000 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    37 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -14 F
    Minimum Outdoor Temperature for Cooling
    14 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    17.2
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    13.0
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    10.2
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    25 Amps
    Recommended Breaker Size
    42 Amps
    Dimensions
    Suction Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Weight
    175 Pounds
    Shipping Weight
    204 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    215734918
    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series H2i
    Product Sub-line
    Hyper-Heating
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-454B
    Installation Location
    Outdoor
    Base Pan Heater Included
    Yes
    Performance
    Cooling BTU
    15000
    Cooling Capacity
    15000 BTU
    Heating Capacity
    17000 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -14 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    25 Amps
    Recommended Breaker Size
    42 Amps
    Dimensions
    Maximum Line Length
    100 Feet
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    34 5/8 Inches
    Product Width
    33 1/16 Inches
    Product Depth
    13 Inches
    Product Weight
    115 Pounds
    Shipping Weight
    133 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Concealed Duct
    Product Line
    P-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-454B
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    15
    Installation Location
    Indoor
    Performance
    Cooling BTU
    15000
    Cooling Capacity
    15000 BTU
    Heating Capacity
    18000 BTU
    Moisture Removal
    1.8 Pints/Hour
    Maximum Air Flow
    600 CFM
    Minimum Air Flow
    403 CFM
    Minimum Sound Level
    28 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    37 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    9 7/8 Inches
    Product Width
    35 7/16 Inches
    Product Depth
    28 7/8 Inches
    Product Weight
    60 Pounds
    Shipping Weight
    71 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
