Mitsubishi GX-Series Ductless Mini Split Heat Pump System - Single-Zone - 24k BTU - 21.5 SEER2 - R-454B

Model: MUZ-GX24NL MSZ-GX24NL Item Number: 168772
Mitsubishi MUZ-GX24NL MSZ-GX24NL
PREVIOUS
NEXT
Mitsubishi MUZ-GX24NL MSZ-GX24NL
Mitsubishi MUZ-GX24NL MSZ-GX24NL
Mitsubishi MUZ-GX24NL MSZ-GX24NL
Enlarge Image
Mitsubishi MUZ-GX24NL MSZ-GX24NL
Mitsubishi MUZ-GX24NL MSZ-GX24NL
Mitsubishi MUZ-GX24NL MSZ-GX24NL
View All
Our Price: $3,742.50
synchrony card icon
$66 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 4-6 Weeks
Mitsubishi GX-Series Ductless Mini Split Heat Pump System - Single-Zone - 24k BTU - 21.5 SEER2 - R-454B
Mitsubishi GX-Series Ductless Mini Split Heat Pump System - Single-Zone - 24k BTU - 21.5 SEER2 - R-454B Model: MUZ-GX24NL MSZ-GX24NL Item Number: 168772
$3,742.50
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    153 Pounds Learn More
    153 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Product Line
    M-Series
Bundle Includes 2 items
  • product image

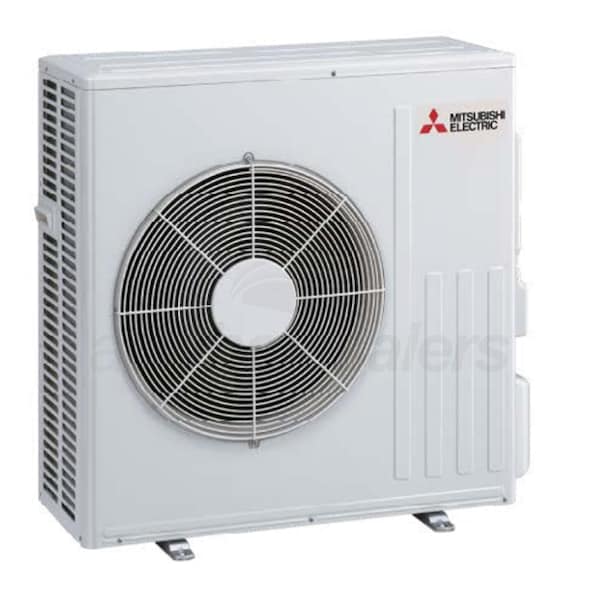

    (1) Mitsubishi GX-Series Outdoor Condenser - Single-Zone - 24k BTU - R-454B (MUZ-GX24NL)
  • product image
    (1) Mitsubishi GX-Series Wall Mounted Unit - Multi or Single-Zone - 24k BTU - R-454B (MSZ-GX24NL)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi MUZ-GX24NL MSZ-GX24NL

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MUZ-GX24NL MSZ-GX24NL is a single-zone heat pump mini split system designed to bring effective heating and cooling to any room in your home. A wall mounted indoor unit, MSZ-GX24NL, is paired with an outdoor condenser that uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With an included wireless remote controller, this system is the perfect combination of convenience and comfort for any application.
  • Advanced Filtration System
  • The MSZ-GX combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.
  • Precision Temperature Control Technology
  • The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSZ-GX can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Multiple Vane Control Options
  • Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage.
  • Powerful Mode
  • The powerful setting on the MSZ-GX makes it easy to get your zone to the perfect temperature quickly. When it is activated, the unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.
  • Dual Barrier Coating
  • A special coating is applied to the heat exchanger, vanes and fan to prevent hydrophilic and hydrophobic dirt build-up.
  • Smart Set
  • Mitsubishi's Smart Set function allows you to save a cooling profile consisting of a temperature, a fan speed, and an airflow direction. This profile can be activated easily with a single press of the Smart Set button on the remote controller.
  • Comfort App Compatible
  • Control every zone in your home from the palm of your hand. The Comfort App allows easy access and control with any smartphone or internet browser.
  • Blue Fin Condenser
  • Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Mitsubishi coats their condensers with an anti-rust coating to extend its lifespan.
  • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit.
    Mitsubishi products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://metahvac.com/ within 90 days of installation.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Wall Mounted
    Product Line
    M-Series
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-454B
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Outdoor Unit Size
    24 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    1/4" x 5/8"
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    22400 BTU
    Heating Capacity
    27600 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    53 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    21.5
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    13.0
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    10.3
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    23 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Suction Connection Size
    5/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Weight
    153 Pounds
    Shipping Weight
    177 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    215862737
    General Information
    Type
    Outdoor Condenser
    Product Line
    GX-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-454B
    Installation Location
    Outdoor
    Base Pan Heater Included
    No
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    22400 BTU
    Heating Capacity
    27600 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    23 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Maximum Line Length
    100 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    34 5/8 Inches
    Product Width
    33 1/16 Inches
    Product Depth
    13 Inches
    Product Weight
    116 Pounds
    Shipping Weight
    135 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Product Line
    GX-Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-454B
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Installation Location
    Indoor
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    22400 BTU
    Heating Capacity
    27600 BTU
    Moisture Removal
    4.5 Pints/Hour
    Maximum Air Flow
    765 CFM
    Minimum Air Flow
    292 CFM
    Minimum Sound Level
    30 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    53 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    12 13/16 Inches
    Product Width
    43 5/16 Inches
    Product Depth
    10 1/8 Inches
    Product Weight
    37 Pounds
    Shipping Weight
    42 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Manuals
