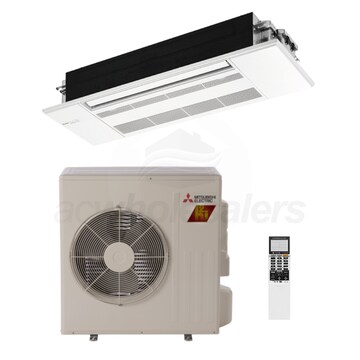

Mitsubishi - 9k BTU Cooling + Heating - M-Series H2i One-Way Ceiling Cassette Air Conditioning System - 18.9 SEER

Model: ML-KP09NAH Item Number: 107663
Mitsubishi ML-KP09NAH
PREVIOUS
NEXT
Mitsubishi ML-KP09NAH
Mitsubishi ML-KP09NAH
Mitsubishi ML-KP09NAH
Mitsubishi ML-KP09NAH
Enlarge Image
Mitsubishi ML-KP09NAH
Mitsubishi ML-KP09NAH
Mitsubishi ML-KP09NAH
Mitsubishi ML-KP09NAH
View All
Originally $2,453.25, you save 5%
Our Price: $2,330.59
synchrony card icon
$389 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 3-4 Weeks
Mitsubishi - 9k BTU Cooling + Heating - M-Series H2i One-Way Ceiling Cassette Air Conditioning System - 18.9 SEER
Mitsubishi - 9k BTU Cooling + Heating - M-Series H2i One-Way Ceiling Cassette Air Conditioning System - 18.9 SEER Model: ML-KP09NAH Item Number: 107663
$2,330.59
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    163 Pounds Learn More
    163 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
Bundle Includes 3 items
  • product image
    (1) Mitsubishi - 9k - M-Series H2i Outdoor Condenser - Single Zone Only (SUZ-KA09NAHZ.TH)
  • product image
    (1) Mitsubishi - 9k BTU - M-Series One-Way Ceiling Cassette without Grille - For Multi or Single-Zone (MLZ-KP09NA2)
  • product image
    (1) Mitsubishi MLP-444W Ceiling Cassette Grille For Mitsubishi MLZ-KP Mini Split Units (MLP-444W)
System BTU/h
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Mitsubishi ML-KP09NAH

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Part of Mitsubishi's hyper-heating product line, the ML-KP09NAH is a packaged single zone heat pump mini split system designed to bring high-efficiency zoned comfort to homes in frigid climates. The low-profile design of the ceiling cassette is paired with quiet operations that provide comfort without disrupting your space. The outdoor condenser uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With an included wireless remote controller and base pan heater factory installed, this system is the perfect combination of convenience and comfort for any application in a sub-freezing environment.
  • H2i Technology
  • Low or negative ambient temperatures don't bother the ML-KP09NAH. It is rated for 100% heating capacity at 5 degrees F and continues to provide heating in outdoor conditions as low as -13 degrees F.
  • Precision Temperature Control Technology
  • The SUZ outdoor condenser uses inverter technology when cooling or heating your home. Rather than simply turning on and off, the outdoor condenser adjusts output based on temperature demand, resulting in efficient and precise heating and cooling.
  • Hot Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Condensate Removal System
  • The MLZ-KP contains an internal drain mechanism capable of lifting condensate 19-11/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Serviceability
  • The MLZ-KP is designed to fit between standard 16" joists and be serviced from below, making installation and maintenance easier than ever.
  • Product Note
    This product requires the following accessories for installation: Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units. Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units. Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box. Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit.
    Bundle Includes 3 items
    • product kit image
      Mitsubishi - 9k - M-Series H2i Outdoor Condenser - Single Zone Only
      Model: SUZ-KA09NAHZ.TH
      Item Number: 107647
      Quantity: 1
    • product kit image
      Mitsubishi - 9k BTU - M-Series One-Way Ceiling Cassette without Grille - For Multi or Single-Zone
      Model: MLZ-KP09NA2
      Item Number: 138712
      Quantity: 1
    • product kit image
      Mitsubishi MLP-444W Ceiling Cassette Grille For Mitsubishi MLZ-KP Mini Split Units
      Model: MLP-444W
      Item Number: 82596
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Ceiling Cassette
    Product Line
    M-Series H2i
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Outdoor Unit Size
    9000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    1/4" x 3/8"
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Heating Capacity
    12000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    18.9
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.5
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    11.0
    Cooling Power Input
    720 Watts
    Heating Power Input
    840 Watts
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Weight
    163 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    204627061
    General Information
    Type
    Outdoor Condenser
    Product Line
    M-Series H2i
    Product Sub-line
    Hyper-Heating
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Base Pan Heater Included
    Yes
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Heating BTU
    14000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    14 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Maximum Line Length
    65 Feet
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    34 5/8 Inches
    Product Width
    38 9/16 Inches
    Product Depth
    13 Inches
    Product Weight
    129 Pounds
    Shipping Weight
    148 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Ceiling Cassette
    Product Line
    M-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Grille
    Not Included
    Required Grille Model
    MLP-444W
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    325 CFM
    Minimum Air Flow
    212 CFM
    Minimum Sound Level
    26 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    38 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    7 5/16 Inches
    Product Width
    43 3/8 Inches
    Product Depth
    14 3/16 Inches
    Product Weight
    34 Pounds
    Grille Depth
    15/16 Inch
    Grille Width
    16 11/16 Inches
    Grille Length
    47 1/4 Inches
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Grille
    Product Line
    M-Series
    Dimensions
    Product Weight
    5 Pounds
    Grille Depth
    15/16 Inch
    Grille Width
    16 11/16 Inches
    Grille Length
    47 1/4 Inches
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
