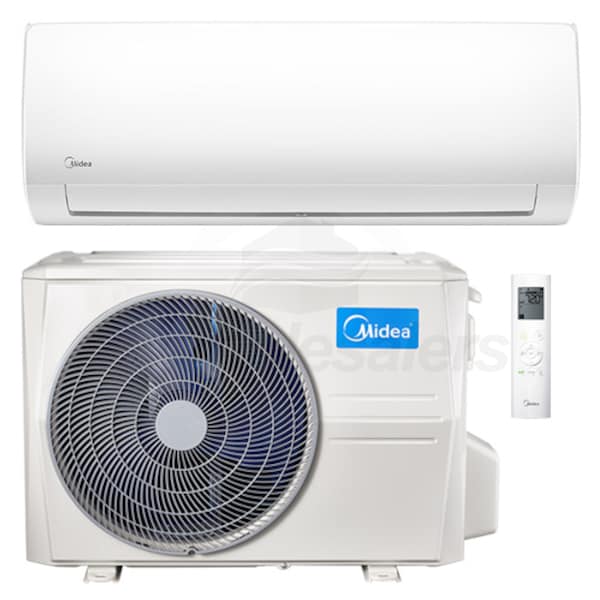

Midea Premier 12,000 BTU 20.4 SEER Ductless Mini Split Heat Pump 115V

Model: MCHS-12PSH1 MEHS-12PSH1 Item Number: 88194
Ask a Question
Midea MCHS-12PSH1 MEHS-12PSH1
PREVIOUS
NEXT
Midea MCHS-12PSH1 MEHS-12PSH1
Midea MCHS-12PSH1 MEHS-12PSH1
Midea MCHS-12PSH1 MEHS-12PSH1
Midea MCHS-12PSH1 MEHS-12PSH1
Midea MCHS-12PSH1 MEHS-12PSH1
Enlarge Image
Midea MCHS-12PSH1 MEHS-12PSH1
Midea MCHS-12PSH1 MEHS-12PSH1
Midea MCHS-12PSH1 MEHS-12PSH1
Midea MCHS-12PSH1 MEHS-12PSH1
Midea MCHS-12PSH1 MEHS-12PSH1
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    99 Pounds Learn More Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Operating Mode
    Heating and Cooling
View More
Bundle Includes 2 items
  • (1) Midea Premier 12,000 BTU 20.4 SEER Ductless Heat Pump Condenser 115V (MCHS-12PSH1)
  • (1) Midea Premier 12,000 BTU Wall Mounted Heat Pump Air Handler 115V (MEHS-12PSH1)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Midea MCHS-12PSH1 MEHS-12PSH1

Overview for Midea MCHS-12PSH1 MEHS-12PSH1Midea MCHS-12PSH1 MEHS-12PSH1 Premier 12,000 BTU 20.4 SEER Ductless Mini Split Heat Pump 115V.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 2 items
    • Midea Premier 12,000 BTU 20.4 SEER Ductless Heat Pump Condenser 115V
      Model: MCHS-12PSH1
      Item Number: 84587
      Quantity: 1
    • Midea Premier 12,000 BTU Wall Mounted Heat Pump Air Handler 115V
      Model: MEHS-12PSH1
      Item Number: 84586
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    MCHS-12PSH1 Specifications
    MEHS-12PSH1 Specifications
    General Information
    Type
    Wall Mounted
    Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More A zone is a room or area within a building that has its own temperature control.
    1
    Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
    12
    Refrigerant Type
    R-410A
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Heating Capacity
    12000 BTU
    SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    20.0
    EER Learn More EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.5
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    10 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Liquid Connection Size
    1/4 Inch
    Gas Connection Size
    1/2 Inch
    Product Weight
    99 Pounds
    Shipping Weight
    104 Pounds
    Certifications
    Energy Star Listed
    Yes
    UL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Outdoor Condenser
    Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    12000
    SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    20.4
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Liquid Connection Size
    1/4 Inch
    Gas Connection Size
    1/2 Inch
    Drain Outlet Diameter
    5/8 Inch
    Product Height
    21 19/24 Inches
    Product Width
    31 1/2 Inches
    Product Depth
    13 5/48 Inches
    Product Weight
    81 Pounds
    Shipping Weight
    91 Pounds
    Warranty Information
    Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
    12
    Refrigerant Type
    R-410A
    Installation Location
    Indoor
    Color
    White
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    20.4
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Liquid Connection Size
    1/4 Inch
    Gas Connection Size
    1/2 Inch
    Drain Outlet Diameter
    5/8 Inch
    Product Height
    11 19/24 Inches
    Product Width
    31 43/48 Inches
    Product Depth
    7 43/48 Inches
    Product Weight
    19 Pounds
    Shipping Weight
    29 Pounds
    Warranty Information
    Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
