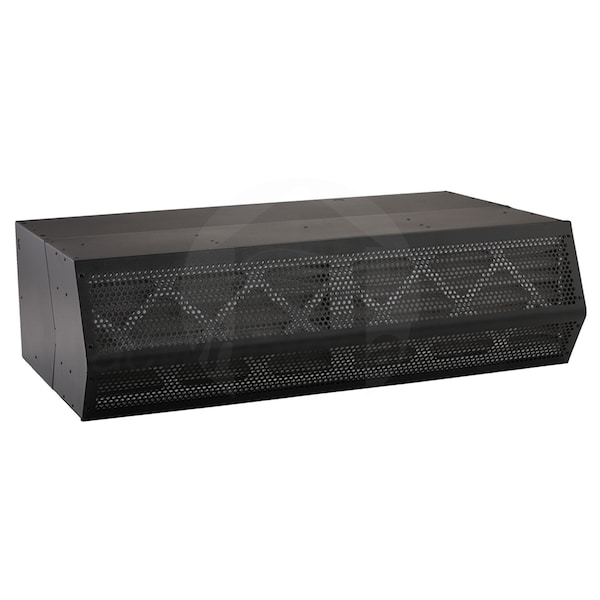

Mars Standard Series with HCP - 48" Unheated Air Curtain - 115V

Model: STD248-1UA-OB-HCP Item Number: 114072
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Mars Air Systems STD248-1UA-OB-HCP
PREVIOUS
NEXT
Mars Air Systems STD248-1UA-OB-HCP
Enlarge Image
Our Price: $2,227.00
synchrony card icon
$372 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Factory-Direct
Ships in 8-12 Weeks
Mars Standard Series with HCP - 48
Mars Standard Series with HCP - 48" Unheated Air Curtain - 115V Model: STD248-1UA-OB-HCP Item Number: 114072
$2,227.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    70 Pounds Learn More
    70 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Curtain
View More
Length (Inches)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Mars Air Systems STD248-1UA-OB-HCP

Mars Air Curtains help to reduce energy costs, keep environments clean and sanitary and help to ensure consistent temperatures with an invisible unobstructing flow of air. Use Mars Air Curtains at all entries, exits, pass-thru windows, dock doors and receiving doors for energy savings and comfortable results. With a low profile design, durable metal construction with a powder coated finish and simple installation, the Mars Standard series is a commercial/industrial hybrid and the most popular, energy-saving series. Mars Standard series with HCP features a HEPA filter rated at 99.99% per 0.3 micron with an extended life of 3 years under normal conditions.
  • HEPA Filter
  • The Standard series with HCP features a HEPA filter rated 99.99% per ASHRAE (0.3 micron) and meets UL Standard 900.
  • Applications
  • Ideal for use at test labs, hospitals, small waiting rooms and for food storage and processing facilities.
  • Strong and Sleek
  • The Standard series features 1/2 horsepower motor in a low profile design, providing power ideal for a multitude of customer-facing and industrial applications.
  • LEED Points
  • The Mars Standard series helps you achieve a green building design and contributes to LEED points.
  • Easy Installation
  • Mounting holes and key hole slots are provided for wall and overhead mounting.
  • Durable Cabinet
  • With sufficient strength for attaching to the wall without intermediate support, the Standard series features a strong, durable cabinet.
  • Nozzle Width - 48"
  • Maximum Door Height
  • Environmental - 12'
  • Maximum Door Width - 48"
  • Wind Stopping Capability - 12 MPH
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Air Curtain
    General Information
    Type
    Unheated Air Curtain
    Product Line
    Standard
    Product Category
    Air Curtain
    Electric Heat
    No
    Color
    Obsidian Black
    Performance
    Maximum Air Flow
    1442 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    66 dB
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    5.1 Amps
    Dimensions
    Product Height
    10 5/8 Inches
    Product Width
    48 Inches
    Product Depth
    21 3/8 Inches
    Product Weight
    70 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
