Little Giant 10EC-CIA-SFS Sump Pump - 10' Power Cord & Float Switch

Model: 510803 Item Number: 70644
Little Giant 510803
PREVIOUS
NEXT
Little Giant 510803
Little Giant 510803
Enlarge Image
Little Giant 510803
Little Giant 510803
Watch Video
Little Giant 510803
Watch Video
Little Giant 510803
Watch Video
Little Giant 510803
View All
Our Price: $329.00

Only 3 In-Stock
Ships Tuesday, March 5th
Shipping to60601
Little Giant 10EC-CIA-SFS Sump Pump - 10' Power Cord & Float Switch
Little Giant 10EC-CIA-SFS Sump Pump - 10' Power Cord & Float Switch Model: 510803 Item Number: 70644
$329.00
Only 3 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Sump Pump
Power
Select Attribute
Style
Select Attribute
Cord Length
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Little Giant 510803

Overview for Little Giant 510803

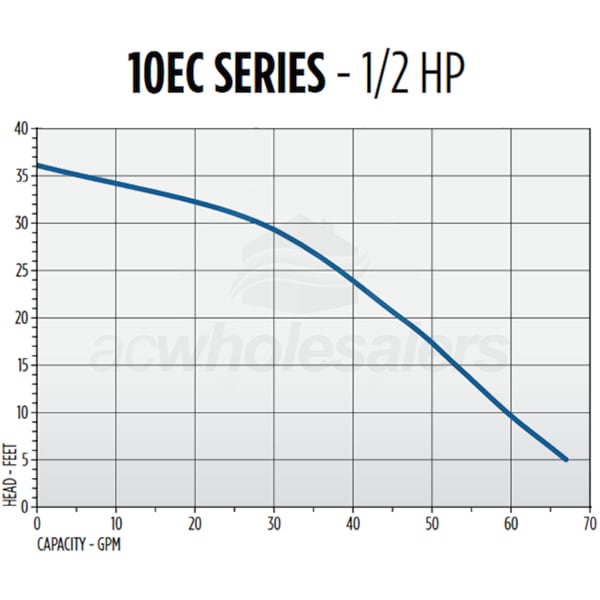

Little Giant 10EC Series pumps feature 1 / 2 HP Permanent Split Capacitor ( PSC ) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability. Touting a full-load rating of only 8.0 amps the 10EC produces 67 gpm @ 5 ft. of head and a maximum shut off of 30 ft. In addition to a stainless intake plate, the 10EC also features a cast iron cover on the manual and RF ( remote float switch ) versions.
  • Automatic Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/2 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Integral Snap-Action Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 10-Foot Power Cord
  • 36' Max Shutoff Head
  • 2-Year Limited Warrranty
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Sump Pump
    Base
    Base Material
    Thermoplastic
    Min Sump Basin Size
    18 Inch
    Motor
    Voltage
    120 Volt
    Running Amps
    6.5
    Thermal Protection
    Yes
    Power Cord Length
    10 Feet
    Oil Free Motor
    No
    Pump
    Housing Material
    Cast Iron
    Impeller Material
    Nylon
    Solids Handling Size
    .5 inch
    Handles Solids
    Yes
    Maximum PSI
    15.6
    Float Type
    Vertical Float
    GPH @ 0 feet
    4020
    GPH @ 5 feet
    4020
    GPH @ 10 feet
    3420
    GPH @ 15 feet
    3120
    GPH @ 20 feet
    1680
    Discharge Port Size
    1-1/2 Inch
    Check Valve Included
    No
    Float On
    8-11 Inches
    Float Off
    2-5 Inches
    Manual Override
    No
    Max Head
    36 Feet
    Submersible
    Yes
    Engine
    Horsepower
    .5 hp
    Overview
    Product Category
    Sump Pump
    Weight
    29 Pounds
    Consumer Warranty
    2 Years
    Product Length
    8.48 Inches
    Product Width
    10.66 Inches
    Product Height
    11.28 Inches
    UPC
    010121149205
