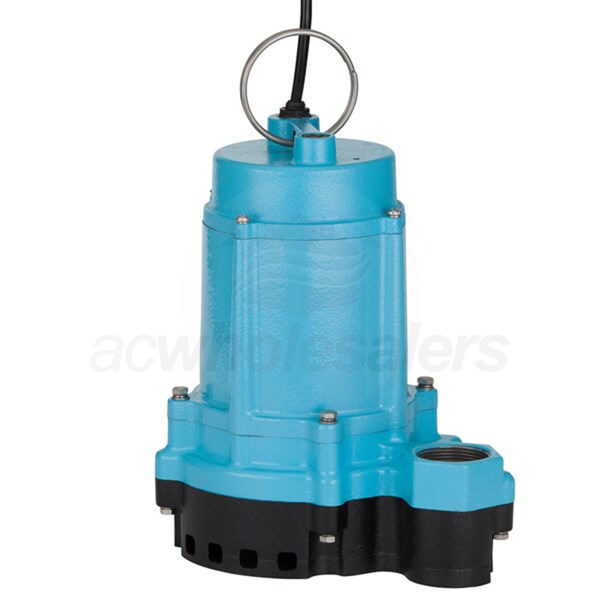

Little Giant 6EC-CIM 1/3 HP Cast Submersible Sump Pump Non-Auto

Model: 506851 Item Number: 70646
Little Giant 506851
PREVIOUS
NEXT
Little Giant 506851
Little Giant 506851
Enlarge Image
Little Giant 506851
Little Giant 506851
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Sump Pump
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Little Giant 506851

  • Cast Iron Submersible Sump Pump - Non-Automatic
  • Continuous duty rated for sump & light effluent applications
  • Cast Iron Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 10-Foot Power Cord
  • 28' Max Shutoff Head
  • 2-Year Limited Warranty
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Sump Pump
    Base
    Base Material
    Cast Iron
    Min Sump Basin Size
    18 Inch
    Motor
    Voltage
    120 Volt
    Thermal Protection
    Yes
    Power Cord Length
    10 Feet
    Oil Free Motor
    No
    Pump
    Housing Material
    Cast Iron
    Solids Handling Size
    .5 inch
    Maximum PSI
    12.1
    Total Head Lift
    28 Feet
    Float Type
    No Switch
    GPH @ 0 feet
    3180
    GPH @ 5 feet
    3180
    GPH @ 10 feet
    3000
    GPH @ 15 feet
    2520
    GPH @ 20 feet
    2040
    Discharge Port Size
    1-1/2 Inch
    Check Valve Included
    No
    Manual Override
    No
    Engine
    Horsepower
    .33 hp
    Overview
    Product Category
    Sump Pump
    Weight
    32.5 Pounds
    Certification
    cCSAus
    Consumer Warranty
    2 Years
    Product Length
    10.9 Inches
    Product Width
    8.79 Inches
    Product Height
    11.28 Inches
    UPC
    010121149083
