LG - 36k Cooling + Heating - Ducted Vertical - Air Conditioning System - 16.25 SEER2

Model: LV361HV4 Item Number: 102722
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
LG LV361HV4
PREVIOUS
NEXT
LG LV361HV4
LG LV361HV4
LG LV361HV4
LG LV361HV4
LG LV361HV4
LG LV361HV4
Enlarge Image
LG LV361HV4
LG LV361HV4
LG LV361HV4
LG LV361HV4
LG LV361HV4
LG LV361HV4
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    328 Pounds Learn More
    328 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
View More

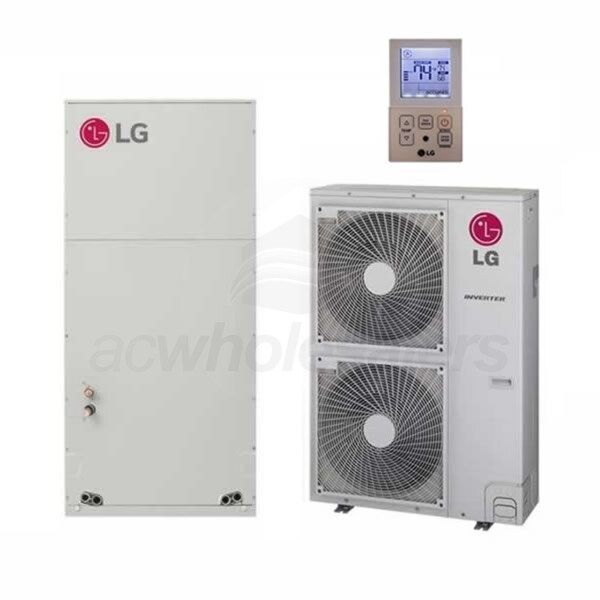

Bundle Includes 4 items
  • product image

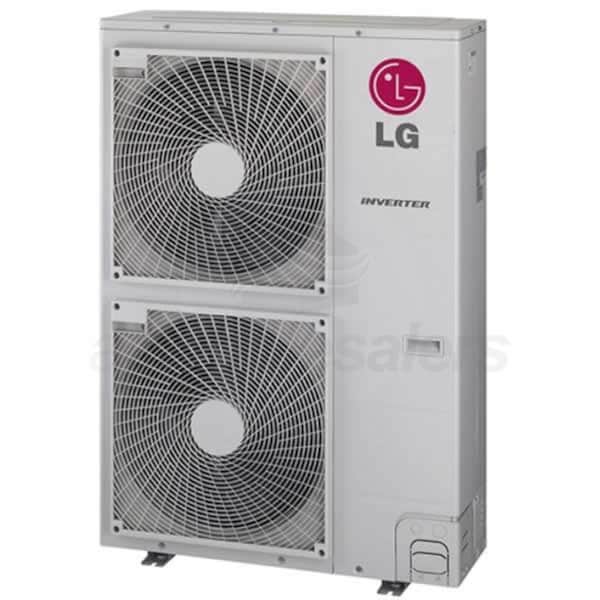

    (1) LG - 36k BTU - Outdoor Condenser - Single Zone (LUU369HV)
  • product image

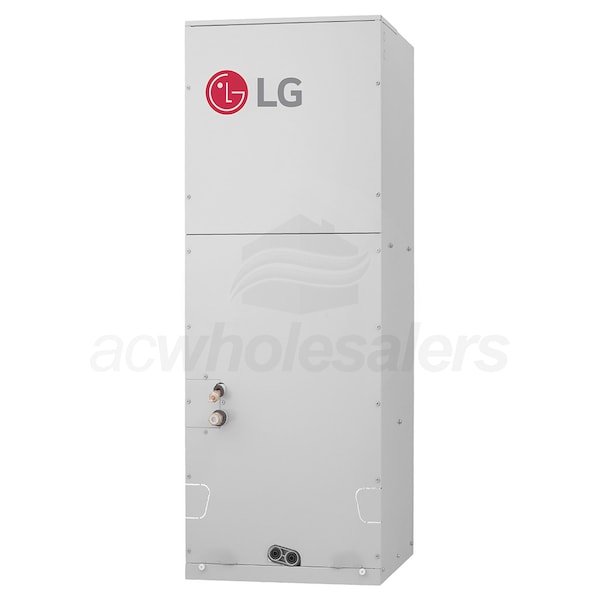

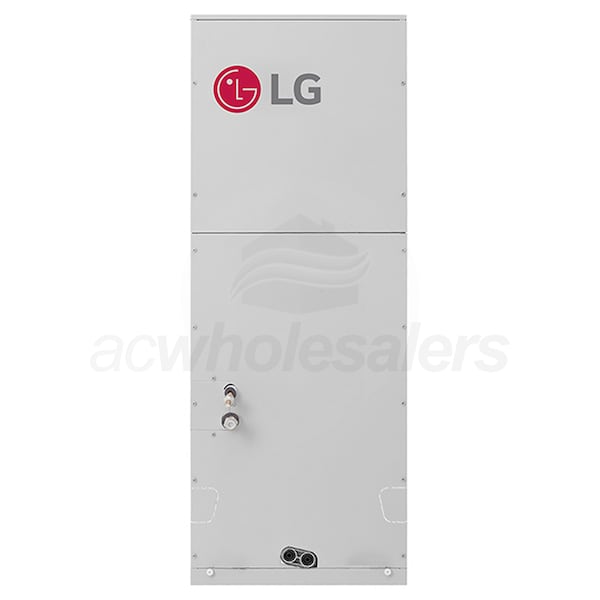

    (1) LG 36,000 BTU Ducted Vertical Air Conditioner Air Handlers (LVN361HV4)
  • product image
    (1) LG Wired Simple Remote Controller (PREMTC00U)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LV361HV4

LG's devotion to providing efficient heating and cooling solutions can be seen across the LG product line. The LV361HV4 shows that same devotion. LG's air handling system is designed to provide powerful heating and cooling and can be installed with nearly any pre-existing ducting run. Capable of managing high air speeds and volumes effortlessly, the LV361HV4 is an impressive solution to your home's heating and cooling needs. A wireless remote is conveniently included to make controlling your air handling system a breeze.
  • Inverter Technology
  • Inverter Technology
  • LG's outdoor condensers are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser compressor carefully regulate the refrigerant flow, reducing energy consumption.
  • LG's outdoor condensers are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser compressor carefully regulate the refrigerant flow, reducing energy consumption.
  • Quiet Design
  • Quiet Design
  • The LVN361HV4 features a brushless direct current motor that reduces electrical and mechanical noise down to 43 decibels. This means the unit is no louder than the refrigerator in your home.
  • The LVN361HV4 features a brushless direct current motor that reduces electrical and mechanical noise down to 43 decibels. This means the unit is no louder than the refrigerator in your home.
  • Dehumidify
  • Dehumidify
  • LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Multi-Position
  • Multi-Position
  • The LVN361HV4 air handler can be installed in either a vertical or a horizontal orientation, making it a versatile solution for all manners of duct systems.
  • The LVN361HV4 air handler can be installed in either a vertical or a horizontal orientation, making it a versatile solution for all manners of duct systems.
  • Gold Fin Protection
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LUU's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • To ensure the reliability and longevity of the LUU's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
    • Product Note
    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    LUU369HV Specifications
    LVN361HV4 Specifications
    PREMTC00U Specifications
    PZCWRC1 Specifications
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Ducted Vertical Air Handler
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    Outdoor Unit Size
    36000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    3/8" x 5/8"
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Heating Capacity
    40000 BTU
    Cooling Power Input
    1 Watt
    Heating Power Input
    1 Watt
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    54 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    5 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    16.25
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    11.0
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    8.95
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    32 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Suction Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Weight
    328 Pounds
    Shipping Weight
    363 Pounds
    Certifications
    CSA Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    203162003
    General Information
    Type
    Outdoor Condenser
    Product Line
    Four-Way Ceiling Cassette
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    36000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    54 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    0 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    40 Amps
    Dimensions
    Maximum Line Length
    246 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    54 17/48 Inches
    Product Width
    37 5/12 Inches
    Product Depth
    13 Inches
    Product Weight
    203 Pounds
    Shipping Weight
    227 Pounds
    Certifications
    ETL Listed
    Yes
    UL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Ducted Vertical Air Handler
    Product Line
    Multi F
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    Installation Location
    Indoor
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    3/8" x 5/8"
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Heating Capacity
    40000 BTU
    Maximum Air Flow
    990 CFM
    Minimum Air Flow
    800 CFM
    Minimum Sound Level
    39 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    44 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    48 3/4 Inches
    Product Depth
    21 1/4 Inches
    Product Length
    18 Inches
    Product Weight
    129 Pounds
    Shipping Weight
    140 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Mini Split Controller
    Product Category
    Mini Split Accessories
    Maximum Number of Zones
    16
    Power Source
    Hard-Wired
    Dimensions
    Product Height
    4 3/4 Inches
    Product Width
    5/8 Inch
    Product Length
    2 3/4 Inches
    Product Weight
    0.18 Pounds
    Overview
    Product Category
    Mini Split Accessories
    General Information
    Type
    Wire Kit
    Product Category
    Mini Split Accessories
    Dimensions
    Product Length
    33 Feet
    Product Weight
    0.25 Pounds
    Certifications
    Country of Origin
    Korea
    Overview
    Product Category
    Mini Split Accessories
