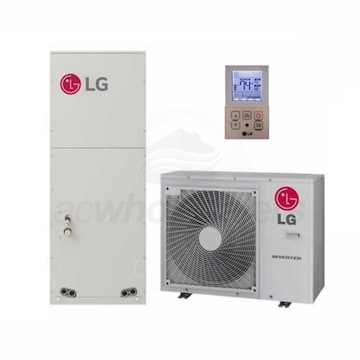

LG - 24k BTU Cooling + Heating - Ducted Vertical Air Handler LGRED° Air Conditioning System - 16.45 SEER2

Model: LV241HHV4 Item Number: 110626
LG LV241HHV4
PREVIOUS
NEXT
LG LV241HHV4
LG LV241HHV4
LG LV241HHV4
LG LV241HHV4
LG LV241HHV4
LG LV241HHV4
Enlarge Image
LG LV241HHV4
LG LV241HHV4
LG LV241HHV4
LG LV241HHV4
LG LV241HHV4
LG LV241HHV4
View All
Originally $5,114.00, you save 5%
Our Price: $4,858.30
synchrony card icon
$61 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Only 2 In-Stock
Ships Friday, March 29th
Shipping to60601
LG - 24k BTU Cooling + Heating - Ducted Vertical Air Handler LGRED° Air Conditioning System - 16.45 SEER2
LG - 24k BTU Cooling + Heating - Ducted Vertical Air Handler LGRED° Air Conditioning System - 16.45 SEER2 Model: LV241HHV4 Item Number: 110626
$4,858.30
Only 2 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    277.71 Pounds Learn More
    277.71 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
Bundle Includes 4 items
  • product image

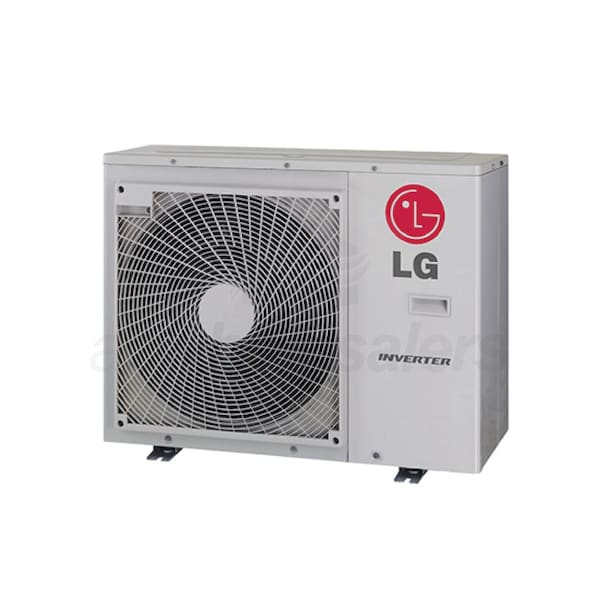

    (1) LG - 24k BTU - LGRED° Outdoor Condenser - Single Zone Only (LUU240HHV)
  • product image
    (1) LG 24,000 BTU Ducted Vertical Air Conditioner Air Handlers (LVN241HV4)
  • product image
    (1) LG Wired Simple Remote Controller (PREMTC00U)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LV241HHV4

LG's devotion to providing efficient heating and cooling solutions can be seen across the LG product line. The LV241HHV4 shows that same devotion. LG's air handling system is designed to provide powerful heating and cooling and can be installed with nearly any pre-existing ducting run. Capable of managing high air speeds and volumes effortlessly, the LV241HHV4 is an impressive solution to your home's heating and cooling needs. The LV241HHV4 also features LGRED° Heat technology, which boasts superior heating performance in extreme cold weather climates.
  • Inverter Technology
  • LG's outdoor condensers are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser compressor carefully regulate the refrigerant flow, reducing energy consumption.
  • Multi-Position
  • The LVN241HV4 air handler can be installed in either a vertical or a horizontal orientation, making it a versatile solution for all manners of duct systems.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LUU's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Base Pan Heater Included
  • Product Note
    This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system. LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.All Mini Split Systems require one Primary Mini Split Installation Kit.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Ducted Vertical Air Handler
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Outdoor Unit Size
    24000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    3/8" x 5/8"
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Heating Capacity
    27000 BTU
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    5 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    16.45
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    11.9
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    9.25
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Weight
    277.71 Pounds
    Shipping Weight
    282.71 Pounds
    Certifications
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    205788775
    General Information
    Type
    Outdoor Condenser
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Minimum Sound Level
    51 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    52 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    1/24 Inch
    Product Height
    36 7/48 Inches
    Product Width
    44 7/8 Inches
    Product Depth
    18 7/48 Inches
    Product Weight
    133 Pounds
    Shipping Weight
    147.71 Pounds
    General Information
    Type
    Ducted Vertical Air Handler
    Product Line
    Multi F
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Installation Location
    Indoor
    Outdoor Unit Size
    24000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Heating Capacity
    27000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    18.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.5
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    10.0
    Maximum Air Flow
    710 CFM
    Minimum Air Flow
    480 CFM
    Minimum Sound Level
    30 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    36 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Height
    48 3/4 Inches
    Product Depth
    21 1/4 Inches
    Product Length
    18 Inches
    Product Weight
    123.5 Pounds
    Shipping Weight
    135.1 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Mini Split Controller
    Product Category
    Mini Split Accessories
    Maximum Number of Zones
    16
    Power Source
    Hard-Wired
    Dimensions
    Product Height
    4 3/4 Inches
    Product Width
    5/8 Inch
    Product Length
    2 3/4 Inches
    Product Weight
    0.18 Pounds
    Overview
    Product Category
    Mini Split Accessories
    General Information
    Type
    Wire Kit
    Product Category
    Mini Split Accessories
    Dimensions
    Product Length
    33 Feet
    Product Weight
    0.25 Pounds
    Certifications
    Country of Origin
    Korea
    Overview
    Product Category
    Mini Split Accessories
