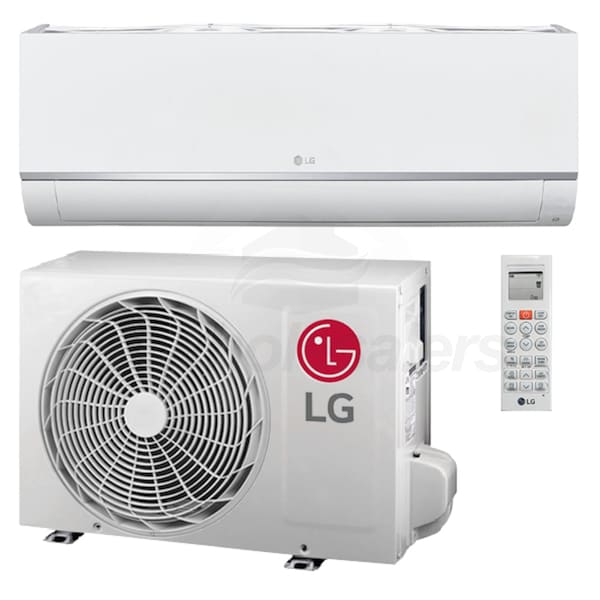

LG LS120HXV2 12,000 BTU 19 SEER Ductless Mini Split Heat Pump 115V

Model: LS120HXV2 Item Number: 99989
Ask a Question
LG LS120HXV2
PREVIOUS
NEXT
LG LS120HXV2
LG LS120HXV2
LG LS120HXV2
LG LS120HXV2
LG LS120HXV2
Enlarge Image
LG LS120HXV2
LG LS120HXV2
LG LS120HXV2
LG LS120HXV2
LG LS120HXV2
View All
Originally $948.00, you save 5%
Our Price: $900.60
$151 / Month
Suggested monthly payments with 6 month financing.
Ships in 7-14 Business Days
LG LS120HXV2 12,000 BTU 19 SEER Ductless Mini Split Heat Pump 115V
LG LS120HXV2 12,000 BTU 19 SEER Ductless Mini Split Heat Pump 115V Model: LS120HXV2 Item Number: 99989
$900.60
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    90 Pounds Learn More
    Type
    Wall Mounted
    Product Sub-line
    115V
View More
Bundle Includes 2 items

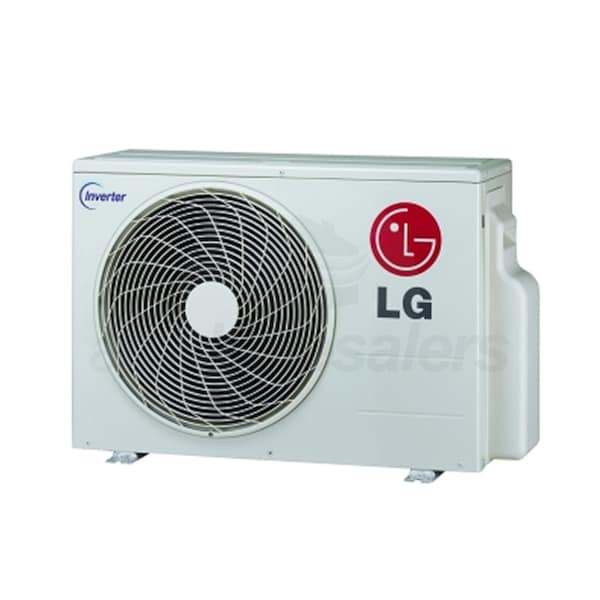

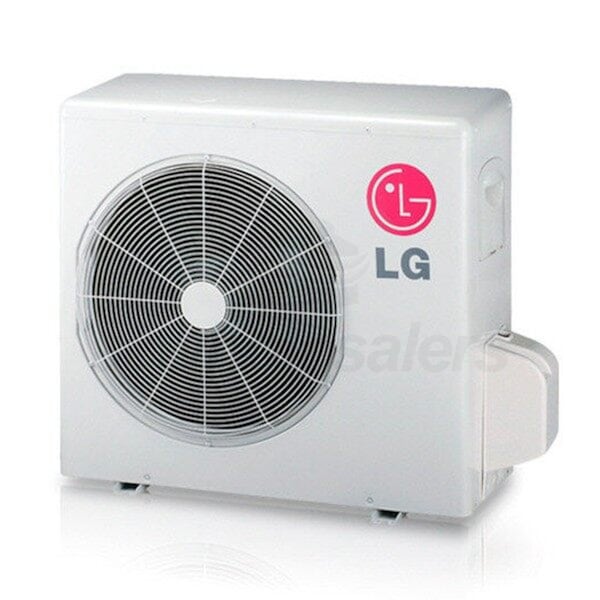

  • (1) LG 12,000 BTU 19 SEER Ductless Heat Pump Condenser 115V (LSU120HXV2)

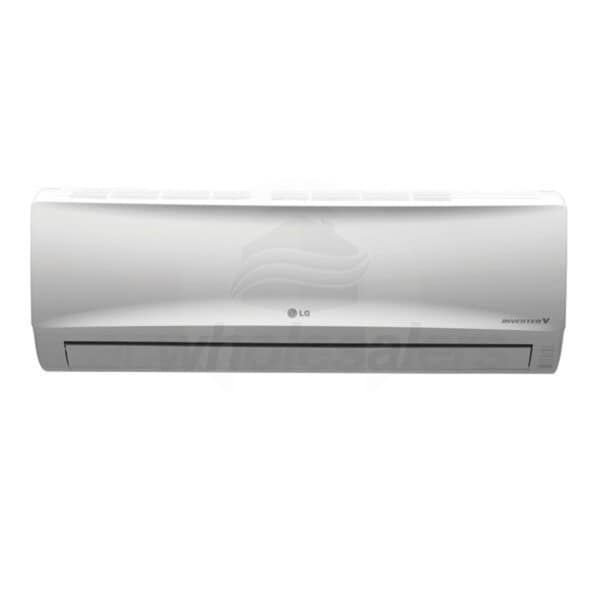

  • (1) LG Mega 115v 12k BTU Wall Mounted Unit - For Single-Zone (LSN120HXV2)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LS120HXV2

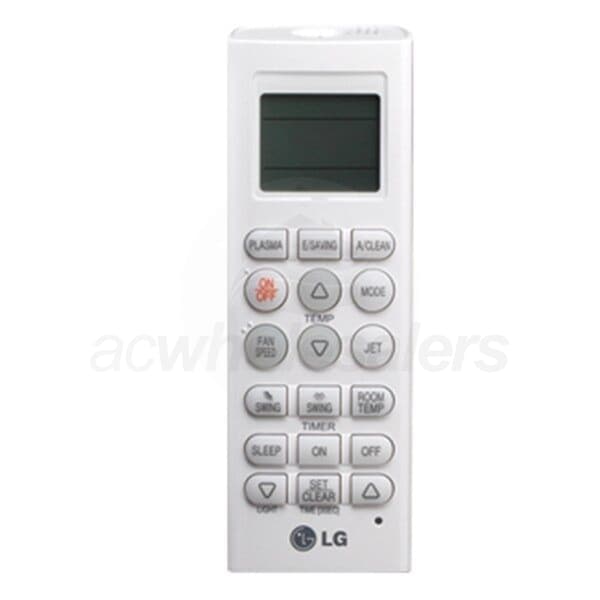

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The LS120HXV2 is a part of LG's low-profile wall mounted Mega product line. This ductless heat pump system features an easy installation process, a full-featured wireless handheld remote controller, and several operation modes aimed at increasing power and efficiency. The Mega series also makes it easy to achieve comfort without the disruptive noise of central systems, the LSN120HXV2 indoor unit boasts sound levels as low as 19 dB. If you're looking to add well-rounded zoned comfort to your home, the LS120HXV2 is a great choice.
Product Note
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 2 items
  • LG 12,000 BTU 19 SEER Ductless Heat Pump Condenser 115V
    Model: LSU120HXV2
    Item Number: 99987
    Quantity: 1
  • LG Mega 115v 12k BTU Wall Mounted Unit - For Single-Zone
    Model: LSN120HXV2
    Item Number: 99985
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overview
Bundle Overview
LSU120HXV2 Specifications
LSN120HXV2 Specifications
General Information
Type
Wall Mounted
Product Sub-line
115V
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
12
Outdoor Unit Size
12000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating Capacity
13000 BTU
SEER Learn More
19.0
EER Learn More
10.51
HSPF Learn More
9.5
Cooling Power Input
1.14 Watts
Heating Power Input
1.09 Watts
Maximum Sound Level Learn More
47 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
14 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
13.5 Amps
Recommended Breaker Size
20 Amps
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Weight
90 Pounds
Shipping Weight
105 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
203996860
General Information
Type
Outdoor Condenser
Product Line
Mega
Product Sub-line
115V
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level Learn More
47 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
14 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Maximum Line Length
49.2 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
19 1/2 Inches
Product Width
28 1/4 Inches
Product Depth
9 1/16 Inches
Product Weight
58.4 Pounds
Shipping Weight
79 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Wall Mounted
Product Line
Mega
Product Sub-line
115V
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
272 CFM
Minimum Air Flow
124 CFM
Minimum Sound Level
19 dB
Maximum Sound Level Learn More
39 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 1/4 Inches
Product Width
34 7/8 Inches
Product Depth
8 5/16 Inches
Product Weight
23 Pounds
Shipping Weight
26 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
