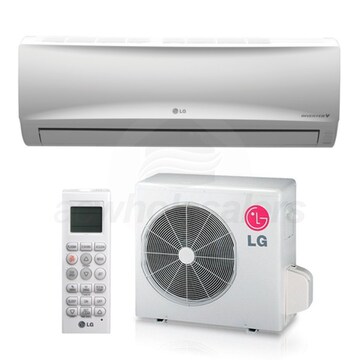

LG LS120HXV 12,000 BTU 17 SEER Ductless Mini Split Heat Pump System

Model: LS120HXV Item Number: 56619
5.0 out of 5 stars 5.0 out of 5 stars
(1)
Ask a Question
LG LS120HXV
PREVIOUS
NEXT
LG LS120HXV
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
LG LS120HXV
LG LS120HXV
LG LS120HXV
LG LS120HXV
LG LS120HXV
LG LS120HXV
LG LS120HXV
LG LS120HXV
Enlarge Image
LG LS120HXV
LG LS120HXV
Watch Video
LG LS120HXV
Watch Video
LG LS120HXV
Watch Video
LG LS120HXV
Watch Video
LG LS120HXV
Watch Video
LG LS120HXV
LG LS120HXV
LG LS120HXV
LG LS120HXV
LG LS120HXV
LG LS120HXV
LG LS120HXV
LG LS120HXV
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    105 Pounds Learn More Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Product Line
    Mega
View More
Bundle Includes 2 items
  • (1) LG 12,000 BTU 17 SEER Ductless Heat Pump Air Conditioner Condenser (LSU120HXV)
  • (1) LG 12,000 BTU 17 SEER Ductless Heat Pump Air Conditioner Air Handler (LSN120HXV)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LS120HXV

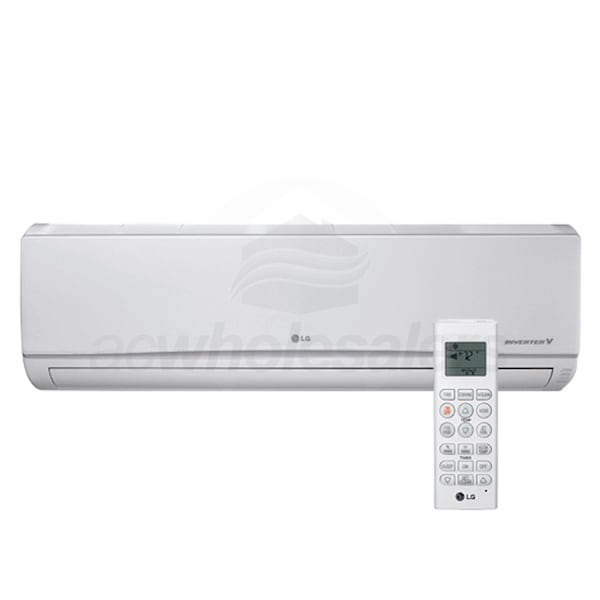

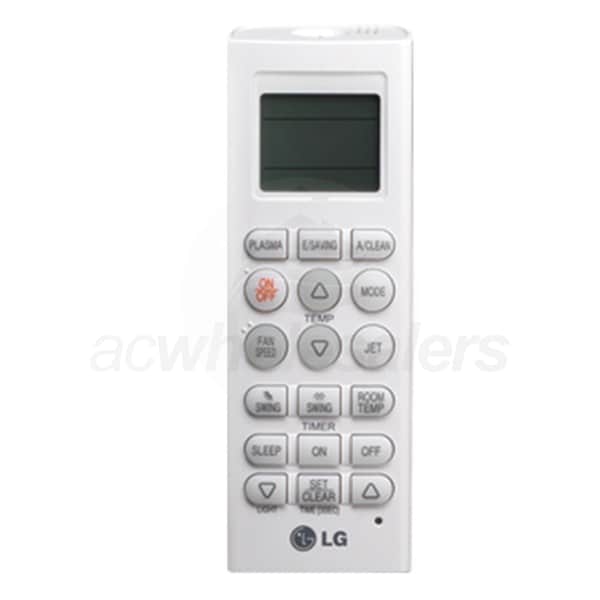

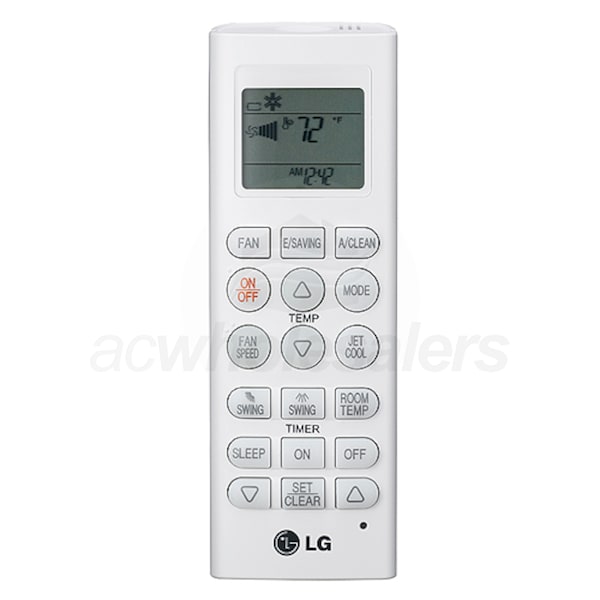

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The LS120HXV is a part of LG's low-profile wall mounted Mega product line. This ductless heat pump system features an easy installation process, a full-featured wireless handheld remote controller, and several operation modes aimed at increasing power and efficiency. The Mega series also makes it easy to achieve comfort without the disruptive noise of central systems, the LSN120HXV indoor unit boasts sound levels as low as 19 dB. If you're looking to add well-rounded zoned comfort to your home, the LS120HXV is a great choice.
Product Note
This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.
Bundle Includes 2 items

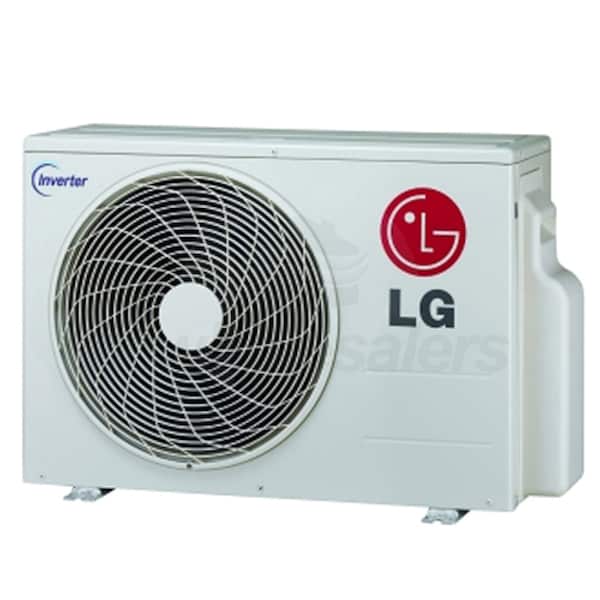

  • LG 12,000 BTU 17 SEER Ductless Heat Pump Air Conditioner Condenser
    Model: LSU120HXV
    Item Number: 45691
    Quantity: 1

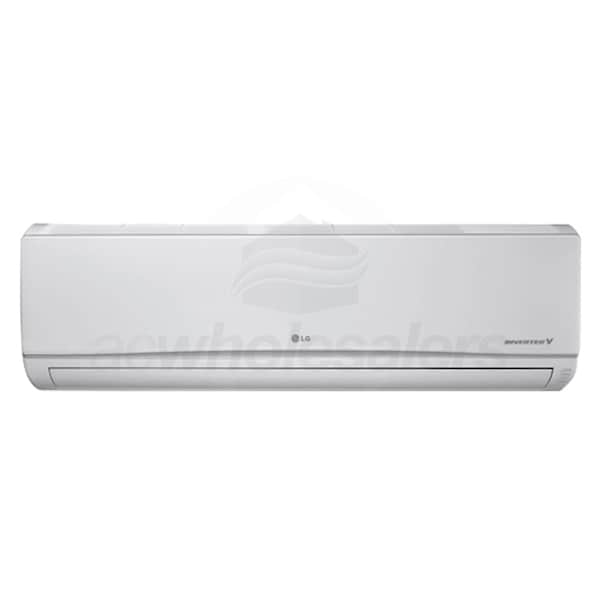

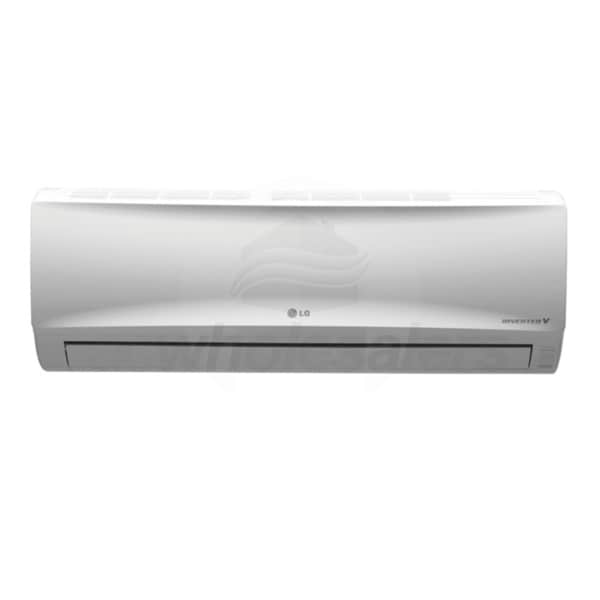

  • LG 12,000 BTU 17 SEER Ductless Heat Pump Air Conditioner Air Handler
    Model: LSN120HXV
    Item Number: 45699
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overview
Bundle Overview
LSU120HXV Specifications
LSN120HXV Specifications
General Information
Type
Wall Mounted
Product Line
Mega
Product Sub-line
115V
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones Learn More A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
DOE Regional Compliance Learn More In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Line Set Size
1/4" x 3/8"
UPC
048231373586
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating Capacity
13000 BTU
SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
17.0
EER Learn More EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
10.5
HSPF Learn More HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
9.0
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
14 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
115 Volts
Dimensions
Product Weight
105 Pounds
Shipping Weight
105 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7065150
General Information
Type
Outdoor Condenser
Product Line
Mega
Product Sub-line
115V
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
47 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
14 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
49.2 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
19 1/2 Inches
Product Width
28 1/4 Inches
Product Depth
9 1/16 Inches
Product Weight
67 Pounds
Shipping Weight
79 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
General Information
Type
Wall Mounted
Product Line
Mega
Product Sub-line
115V
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Minimum Air Flow
124 CFM
Maximum Air Flow
335 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
39 dB
Minimum Sound Level
19 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 1/4 Inches
Product Width
34 7/8 Inches
Product Depth
8 5/16 Inches
Product Weight
23 Pounds
Shipping Weight
26 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
