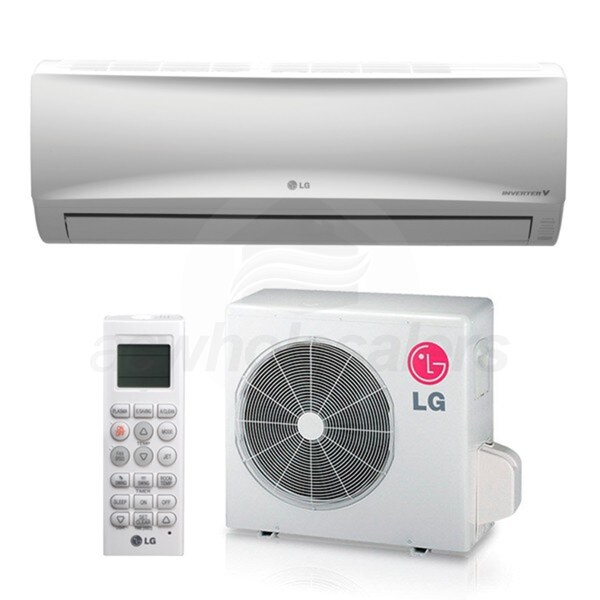

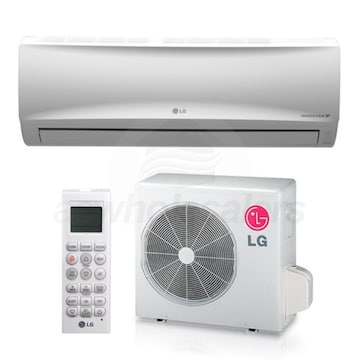

LG 9,000 BTU 17 SEER Ductless Mini Split Heat Pump System

Model: LS090HXV Item Number: 56618
5.0 out of 5 stars 5.0 out of 5 stars
(1)
Ask a Question
LG LS090HXV
PREVIOUS
NEXT
LG LS090HXV
Watch Video
Watch Video
Watch Video
Watch Video
LG LS090HXV
LG LS090HXV
LG LS090HXV
LG LS090HXV
LG LS090HXV
LG LS090HXV
LG LS090HXV
Enlarge Image
LG LS090HXV
LG LS090HXV
Watch Video
LG LS090HXV
Watch Video
LG LS090HXV
Watch Video
LG LS090HXV
Watch Video
LG LS090HXV
LG LS090HXV
LG LS090HXV
LG LS090HXV
LG LS090HXV
LG LS090HXV
LG LS090HXV
View All
Originally $920.00, you save 5%
Our Price: $874.00
8 In-Stock
Ships Thursday, March 21st
LG 9,000 BTU 17 SEER Ductless Mini Split Heat Pump System
LG 9,000 BTU 17 SEER Ductless Mini Split Heat Pump System Model: LS090HXV Item Number: 56618
$874.00
8 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping ? *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate ? *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Truck Icon
Low Price Guarantee ? Shop with Confidence knowing you have the Right System at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know - we will match the price of any online competitor PLUS beat that price by 5%.

Simply call our sales or customer service department at 866-631-6389 or 866-793-0323 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New ? This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Wall Mounted
    Product Sub-line
    115V
    Operating Mode
    Heating and Cooling
View More
Bundle Includes 2 items
  • (1) LG - 9k BTU - Mega 115v Outdoor Condenser - Single Zone Only (LSU090HXV)
  • (1) LG Mega 115v 9k BTU Wall Mounted Unit - For Single-Zone (LSN090HXV)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LS090HXV

Overview for LG LS090HXVLG's new line of heat pump duct-free split products. Mega 115V (HXV series) systems are available in 9,000 and 12,000 Btu/h capacities.These single-zone systems feature energy-saving Inverter (variable-speed compressor) technology and are controlled through a standard wireless remote.LG System will improve your quality of life in an affordable, eco-friendly way. Over the years, LG has strived to meet the demand for high quality air conditioning solutions with greater energy efficiency, helping the environment while also reducing electricity costs for consumers.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 2 items

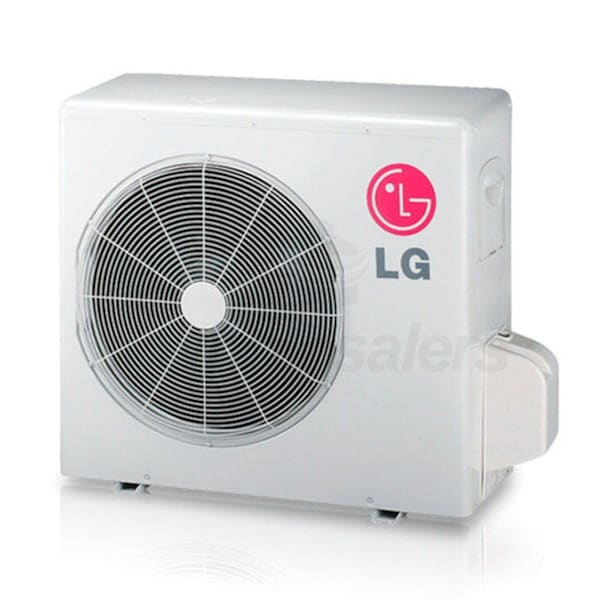

    • LG - 9k BTU - Mega 115v Outdoor Condenser - Single Zone Only
      Model: LSU090HXV
      Item Number: 45698
      Quantity: 1

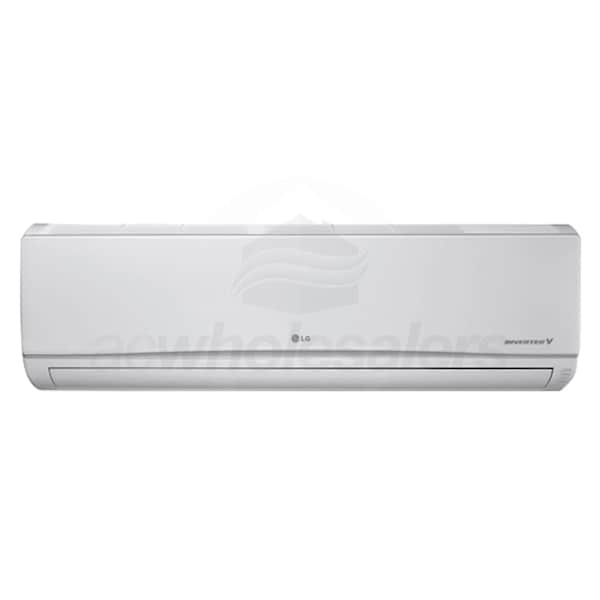

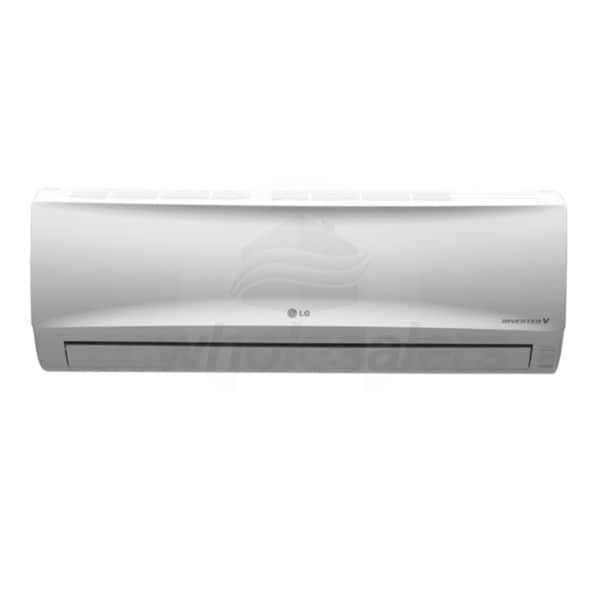

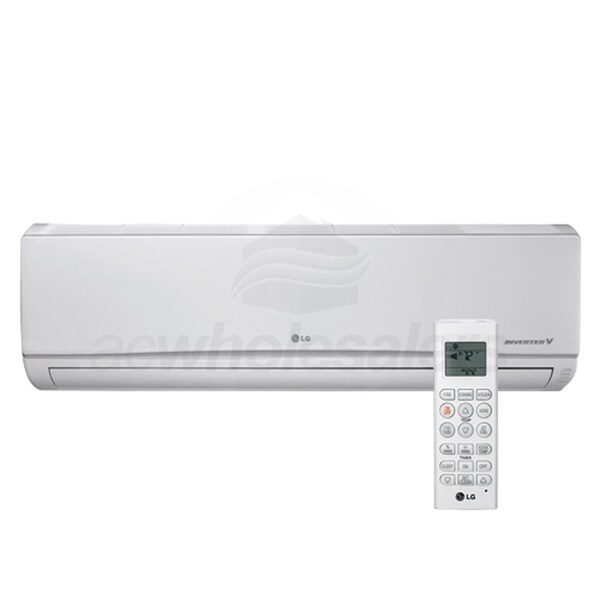

    • LG Mega 115v 9k BTU Wall Mounted Unit - For Single-Zone
      Model: LSN090HXV
      Item Number: 45700
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    LSU090HXV Specifications
    LSN090HXV Specifications
    General Information
    Type
    Wall Mounted
    Product Sub-line
    115V
    Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones ? A zone is a room or area within a building that has its own temperature control.
    1
    Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
    9
    Refrigerant Type
    R-410A
    DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    1/4" x 3/8"
    UPC
    048231373562
    Performance
    Nominal Capacity
    9000 BTU
    Cooling Capacity
    9000 BTU
    Heating Capacity
    9000 BTU
    SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    17.0
    EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.0
    HSPF ? HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    9.0
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    14 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Certifications
    Energy Star Listed
    Yes
    UL Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7065151
    General Information
    Type
    Outdoor Condenser
    Product Line
    Mega
    Product Sub-line
    115V
    Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Nominal Capacity
    9000 BTU
    Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    47 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    14 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    20 Amps
    Dimensions
    Maximum Line Length
    49.2 Feet
    Liquid Connection Size
    1/4 Inch
    Gas Connection Size
    3/8 Inch
    Product Height
    19 1/2 Inches
    Product Width
    28 1/4 Inches
    Product Depth
    9 1/16 Inches
    Product Weight
    67 Pounds
    Shipping Weight
    79 Pounds
    Certifications
    UL Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Product Line
    Mega
    Product Sub-line
    115V
    Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
    9
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A

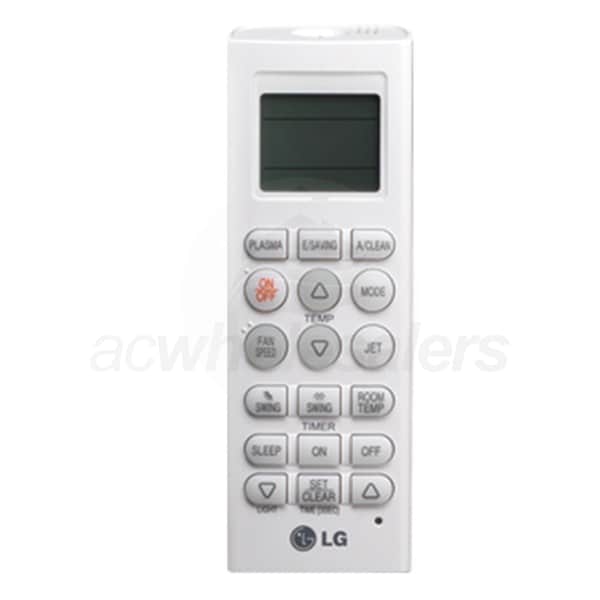

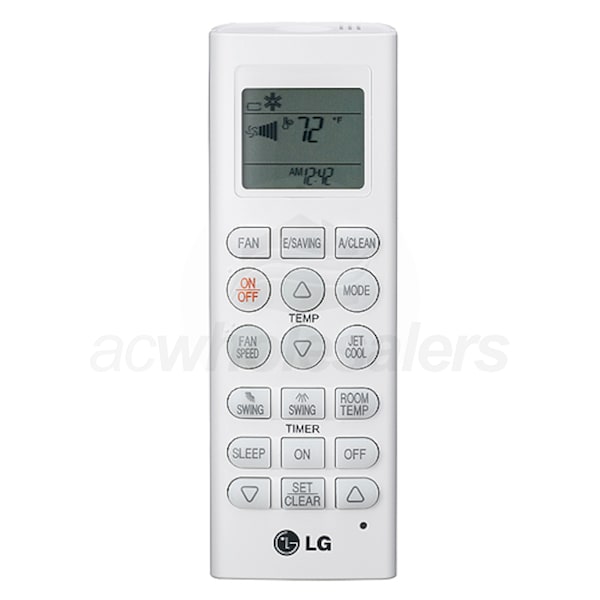

    Remote Control
    Wireless
    Installation Location
    Indoor
    Performance
    Nominal Capacity
    9000 BTU
    Cooling Capacity
    9000 BTU
    Minimum Air Flow
    124 CFM
    Maximum Air Flow
    335 CFM
    Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    39 dB
    Minimum Sound Level
    19 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Liquid Connection Size
    1/4 Inch
    Gas Connection Size
    3/8 Inch
    Product Height
    11 1/4 Inches
    Product Width
    34 7/8 Inches
    Product Depth
    8 5/16 Inches
    Product Weight
    23 Pounds
    Shipping Weight
    26 Pounds
    Certifications
    UL Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
