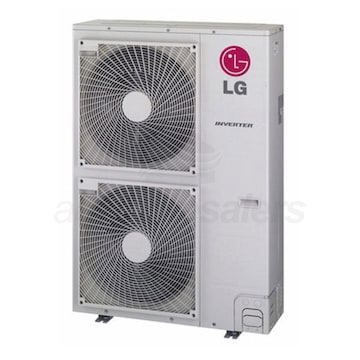

LG 42,000 BTU Ductless Multi Zone Heat Pump Air Conditioner Condenser

Model: LMU420HHV Item Number: 78126
LG LMU420HHV
PREVIOUS
NEXT
LG LMU420HHV
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Out of Stock
Sorry, this product is currently unavailable.
Try This Instead
View LG - 42k BTU - LGRED° Heat Outdoor Condenser - For 2-6 Zones
Model:
LMU421HHV
$4,232.00
19 In-Stock
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    222.7 Pounds Learn More
    222.7 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Outdoor Condenser
    Product Line
    LGRED Heat
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for LG LMU420HHV

Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center at 866-631-6389 option 1 for alternate options.

Overview for LG LMU420HHVLG LMU420HHV 42,000 BTU Ductless Multi Zone Heat Pump Air Conditioner Condenser.
  • Inverter Technology
  • LG's inverter technology features an electronic expansion valve and a variable speed compressor that carefully regulates refrigerant flow, reducing energy consumption and providing consistent, accurate temperatures without overshooting or short-cycling.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LMU420HHV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Quiet Design
  • Thanks to a brushless direct current motor and a twin rotary compressor, the LMU420HHV is significantly quieter than traditional air conditioning systems. These components reduce mechanical sound, electrical sound, and vibrations within the unit.
  • Integrated Base Pan Heater
  • Base pan heaters come factory installed on all LGRED° outdoor condensers in order to mitigate the risk of damage caused by freezing condensate.
  • Product Compatible With (Up to 54k Total BTU)
  • LG LMN Wall Mounted Mini Split Indoor Units
  • LG LSN Wall Mounted Mini Split Indoor Units
  • LG LMAN Wall Mounted Art Cool Gallery Mini Split Indoor Units
  • LG LAN Wall Mounted Art Cool Mirror Mini Split Indoor Units
  • LG LMCN Ceiling Cassette Mini Split Indoor Units
  • LG LMDN Concealed Duct Mini Split Indoor Units
  • Product Note
    This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Specifications
    View More

    Specifications

    General Information
    Type
    Outdoor Condenser
    Product Line
    LGRED Heat
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    6
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Branch Box Required Learn More
    Branch Box Required
    By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units.
    Yes
    Base Pan Heater Included
    Yes
    Color
    Warm Gray
    UPC
    482313819188
    Performance
    Cooling BTU
    42000
    Cooling Power Input
    3000 Watts
    Heating Power Input
    3300 Watts
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    57 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    30.2 Amps
    Recommended Breaker Size
    45 Amps
    Dimensions
    Maximum Line Length
    475.7 Feet
    Gas Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    54 17/48 Inches
    Product Width
    37 5/12 Inches
    Product Depth
    13 Inches
    Product Weight
    222.7 Pounds
    Shipping Weight
    250 Pounds
    Certifications
    ETL Listed
    Yes
    UL Listed
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
