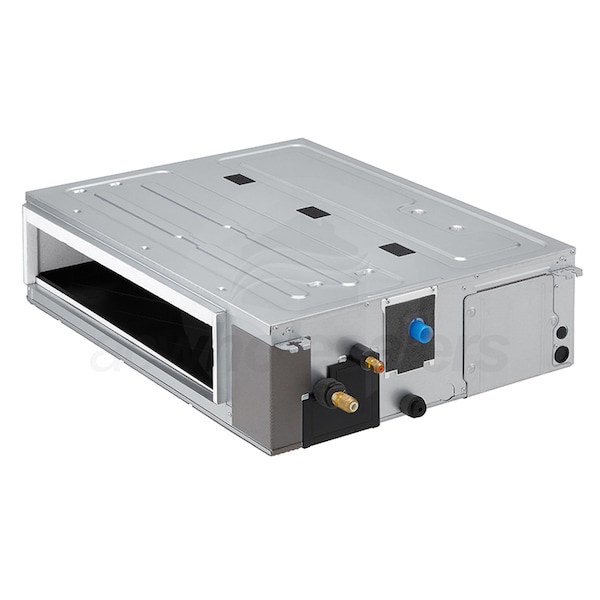

LG - 24k BTU - Mid Static Concealed Duct Unit - For Multi or Single-Zone

Model: LHN248HV1 Item Number: 152950
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
LG LHN248HV1
PREVIOUS
NEXT
LG LHN248HV1
Enlarge Image
Originally $1,189.00, you save 5%
Our Price: $1,129.55
synchrony card icon
$189 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Only 3 In-Stock
Ships Monday, May 6th
Shipping to60601
LG - 24k BTU - Mid Static Concealed Duct Unit - For Multi or Single-Zone
LG - 24k BTU - Mid Static Concealed Duct Unit - For Multi or Single-Zone Model: LHN248HV1 Item Number: 152950
$1,129.55
Only 3 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    64.2 Pounds Learn More
    64.2 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Concealed Duct
    Product Line
    Multi F
View More
Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for LG LHN248HV1

LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. The LHN248HV1 is a mini split indoor unit designed for installation is short-run ducting with mid static pressures. Concealed duct indoor units mean that you can add mini split zones with no visible indoor units. With the LHN248HV1, a small air register is the only clue that a mini split is providing effective heating and cooling to your space.
  • Quiet Design
  • The LHN248HV1 can operate at volumes as low as 30 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
  • Automated Operation
  • Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
  • Condensate Protection
  • Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift protects the LHN248HV1 through reliable, effective condensate removal.
  • Dehumidify
  • LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality
  • The LHN248HV1 features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
    • Product Note
    • This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
    • Remote Control and Cable - A remote control (PREMTC00U recommended) and the PZCWRC1 remote control cable are required for each individual concealed duct unit in your system.
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
      • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
    Specifications
    View More

    Specifications

    General Information
    Type
    Concealed Duct
    Product Line
    Multi F
    Product Sub-line
    Mid-Static Ducted
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Installation Location
    Indoor
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Heating BTU
    27000
    Maximum Air Flow
    706 CFM
    Minimum Air Flow
    459 CFM
    Minimum Sound Level
    30 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    38 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    9 31/48 Inches
    Product Width
    36 7/16 Inches
    Product Depth
    27 9/16 Inches
    Product Weight
    64.2 Pounds
    Shipping Weight
    75.3 Pounds
    Certifications
    UL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
