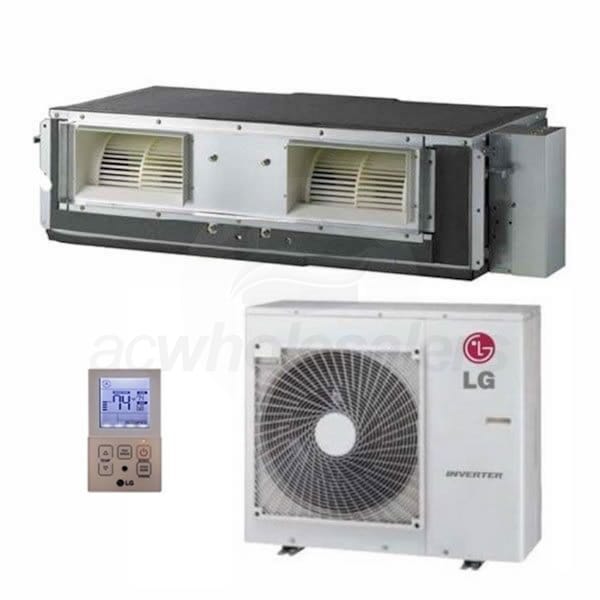

LG - 24k Cooling + Heating - High-Static Concealed Duct - Air Conditioning System - 16.85 SEER2

Model: LH248HV Item Number: 99298
5.0 out of 5 stars5.0 out of 5 stars
(1)
Write A Review
LG LH248HV
PREVIOUS
NEXT
LG LH248HV
LG LH248HV
LG LH248HV
LG LH248HV
LG LH248HV
LG LH248HV
LG LH248HV
Enlarge Image
LG LH248HV
LG LH248HV
LG LH248HV
LG LH248HV
LG LH248HV
LG LH248HV
LG LH248HV
View All
Product Discontinued
Sorry, this product is no longer available.
5.0 out of 5 stars5.0 out of 5 stars
(1)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    206 Pounds Learn More
    206 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
View More
Bundle Includes 4 items
  • product image

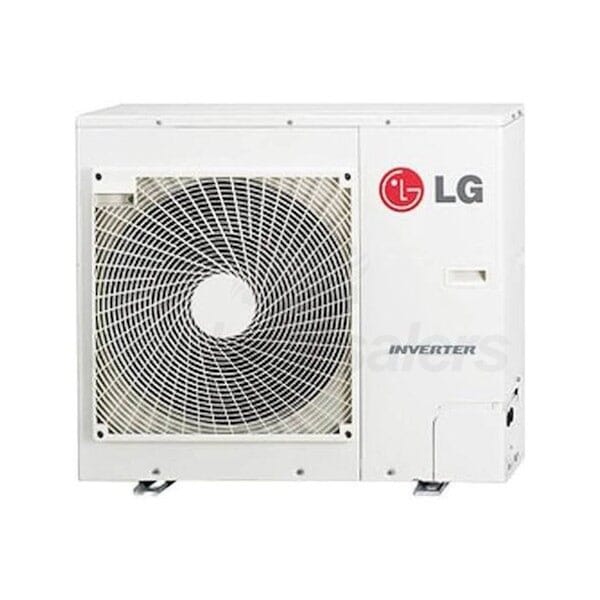

    (1) LG - 24k BTU - Outdoor Condenser - Single Zone Only (LUU240HV)
  • product image

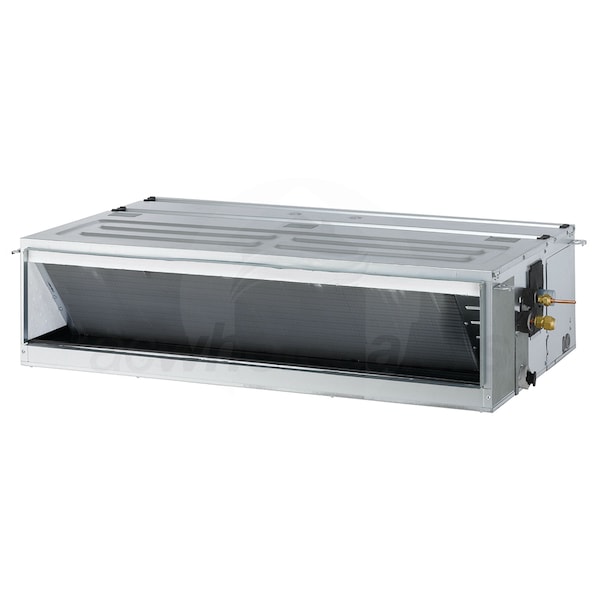

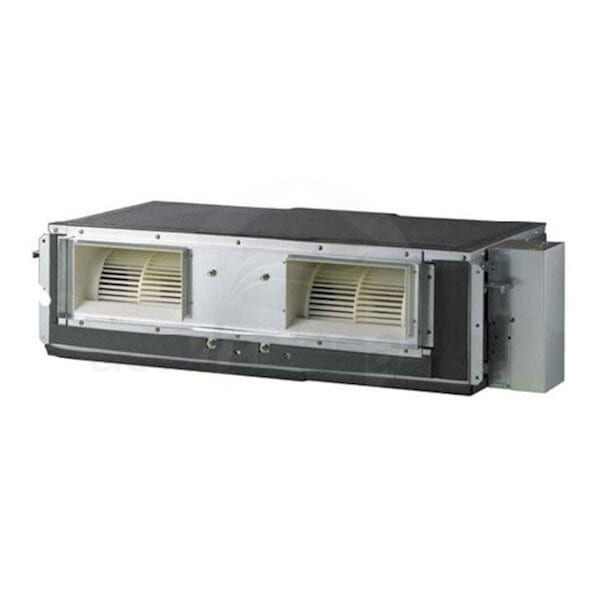

    (1) LG - 24k BTU - High Static Concealed Duct Unit - For Single and Multi Zone (LHN248HV)
  • product image
    (1) LG Wired Simple Remote Controller (PREMTC00U)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LH248HV

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The High Static line of single zone concealed duct systems is perfect for homes that want to add zoned comfort without mounting a unit on the wall. They excel at providing comfort to wide open rooms, and by installing the indoor unit in a short ducting run, you can hide it from sight completely. The LHN248HV indoor unit's sound levels are as low as 35 dB to ensure that your system isn't just unseen, but unheard as well. In applications where wall space is at a premium or duct work is easily accessible, the LH248HV is a brilliant addition.
  • Inverter Technology
  • LG's heat pump systems are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LUU240HV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Quiet Design
  • LG uses advanced components to ensure that their systems are as quiet as possible. In the LUU240HV outdoor condenser, a twin rotary compressor reduces vibration to limit noise while both the outdoor and indoor units utilize brushless fan motors.
  • Air Flow Options
  • Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
  • Condensate Protection
  • Condensate overflow can damage your indoor units and your home. An internal condensate pump with 27.5" of lift protects the LHN248HV concealed duct indoor unit through reliable, effective condensate removal.
  • Dehumidify
  • LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality
  • The LHN248HV indoor unit features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
    • Product Note
    This product requires the following accessories for installation: Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units. Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units. Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box. Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    LUU240HV Specifications
    LHN248HV Specifications
    PREMTC00U Specifications
    PZCWRC1 Specifications
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Concealed Duct
    Product Sub-line
    High-Static Ducted
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Outdoor Unit Size
    24000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    3/8" x 5/8"
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Heating Capacity
    27000 BTU
    Cooling Power Input
    15 Watts
    Heating Power Input
    15 Watts
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    47 dB
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    0 F
    Minimum Outdoor Temperature for Cooling
    5 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    16.85
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    11.7
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    9.0
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    18 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Suction Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Weight
    206 Pounds
    Shipping Weight
    241 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    211234506
    General Information
    Type
    Outdoor Condenser
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    24000
    Heating BTU
    27000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    52 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    20 Amps
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    164 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    32 41/48 Inches
    Product Width
    37 19/48 Inches
    Product Depth
    13 Inches
    Product Weight
    130 Pounds
    Shipping Weight
    147 Pounds
    Certifications
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Concealed Duct
    Product Line
    High Static Ducted
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Installation Location
    Indoor
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Maximum Air Flow
    688 CFM
    Minimum Air Flow
    530 CFM
    Minimum Sound Level
    35 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    38 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    11 35/48 Inches
    Product Width
    46 13/24 Inches
    Product Depth
    17 35/48 Inches
    Product Weight
    73 Pounds
    Shipping Weight
    95 Pounds
    Certifications
    UL Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Mini Split Controller
    Product Category
    Mini Split Accessories
    Maximum Number of Zones
    16
    Power Source
    Hard-Wired
    Dimensions
    Product Height
    4 3/4 Inches
    Product Width
    5/8 Inch
    Product Length
    2 3/4 Inches
    Product Weight
    0.18 Pounds
    Overview
    Product Category
    Mini Split Accessories
    General Information
    Type
    Wire Kit
    Product Category
    Mini Split Accessories
    Dimensions
    Product Length
    33 Feet
    Product Weight
    0.25 Pounds
    Certifications
    Country of Origin
    Korea
    Overview
    Product Category
    Mini Split Accessories
