LG - 9k Cooling + Heating - Ceiling Cassette with Grille - For Single/Multi Zone

Model: LCN098HV4 Item Number: 95217
LG LCN098HV4
PREVIOUS
NEXT
LG LCN098HV4
LG LCN098HV4
LG LCN098HV4
LG LCN098HV4
LG LCN098HV4
Enlarge Image
LG LCN098HV4
LG LCN098HV4
LG LCN098HV4
LG LCN098HV4
LG LCN098HV4
View All
Originally $849.00, you save 5%
Our Price: $806.55
synchrony card icon
$135 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, November 4th
Shipping to60601
LG - 9k Cooling + Heating - Ceiling Cassette with Grille - For Single/Multi Zone
LG - 9k Cooling + Heating - Ceiling Cassette with Grille - For Single/Multi Zone Model: LCN098HV4 Item Number: 95217
$806.55
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    31 Pounds Learn More
    31 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split System Components
Bundle Includes 2 items
  • product image
    (1) LG 9,000 BTU Ceiling Cassette For Single/Multi-Zone w/o Grille (LCN098HV4-NG)
  • product image
    (1) LG Multi F Four-Way Ceiling Cassette - Ceiling Cassette Grille (PT-QAGW0)
Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LCN098HV4

LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. Part of the Four-Way Ceiling Cassette lineup of mini split indoor units, the LCN098HV4 combines powerful multi-directional air flow with a low-profile design, allowing you to heat and cool large rooms discreetly. Thanks to the recessed installation design, a grille less than 1" thick is the only visible part of an installed LCN098HV4.
  • Air Flow Options
  • There are three automated air flow options with the LCN098HV4. Swing mode fluctuates air flow direction. Chaos wind cycles direct and fan speed to provide more natural circulation. Finally Swirl mode produces steady comfort though out the zone.
  • Quiet Design
  • The LCN098HV4 can operate at volumes as low as 30 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
  • Jet Cool
  • This LG unit feature a Jet Cool operation mode for rapid cooling. In this mode, the indoor unit observes a set point of 64 degrees Fahrenheit and the fan operates at maximum speed for 30 minutes to quickly cool your zone.
  • Automated Operation
  • Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
  • Condensate Protection
  • Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift protects the LCN098HV4 through reliable, effective condensate removal.
  • Improved Air Quality
  • The LCN098HV4 features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
  • Hot Start
  • When the hot start function is enabled, the LCN098HV4's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
  • Product Note
    This product requires a compatible LG mini split outdoor condenser and the following accessories for indoor unit installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/>https://lg-dfs-warranty.com/ within 60 days of installation.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Ceiling Cassette
    Product Line
    Multi F
    Product Sub-line
    Four-Way Ceiling Cassette
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A

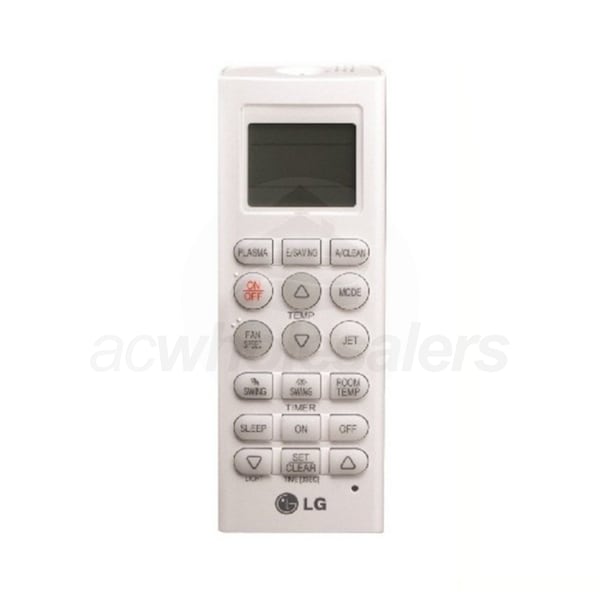

    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Grille
    Included
    Required Grille Model
    PT-UQC
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    300 CFM
    Minimum Air Flow
    230 CFM
    Minimum Sound Level
    30 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    36 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    8 7/16 Inches
    Product Width
    22 7/16 Inches
    Product Depth
    22 7/16 Inches
    Product Weight
    31 Pounds
    Shipping Weight
    37 Pounds
    Certifications
    ETL Listed
    Yes
    UL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    General Information
    Type
    Ceiling Cassette
    Product Line
    Multi F
    Product Sub-line
    Four-Way Ceiling Cassette
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Required Grille Model
    PT-UQC
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    300 CFM
    Minimum Air Flow
    230 CFM
    Minimum Sound Level
    30 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    36 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    8 7/16 Inches
    Product Width
    22 7/16 Inches
    Product Depth
    22 7/16 Inches
    Product Weight
    29 Pounds
    Shipping Weight
    37 Pounds
    Certifications
    UL Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Grille
    Product Line
    Multi F
    Product Sub-line
    Four-Way Ceiling Cassette
    Product Category
    Mini Split Accessories
    Installation Location
    Indoor
    Dimensions
    Product Height
    1 3/8 Inches
    Product Width
    24 19/48 Inches
    Product Depth
    24 19/48 Inches
    Product Weight
    6.3 Pounds
