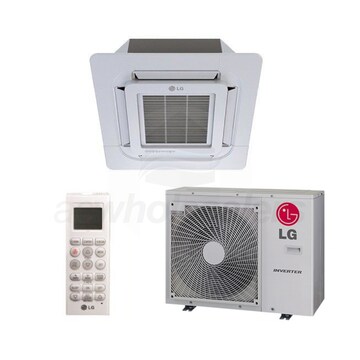

LG - 18k BTU Cooling + Heating - Ceiling Cassette Air Conditioning System - 20.5 SEER

Model: LC188HV4 Item Number: 95223
Ask a Question
LG LC188HV4
PREVIOUS
NEXT
LG LC188HV4
LG LC188HV4
LG LC188HV4
Enlarge Image
LG LC188HV4
LG LC188HV4
LG LC188HV4
View All
Originally $2,761.00, you save 5%
Our Price: $2,622.95
$46 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Backordered
Estimated Availability June 25, 2021
LG - 18k BTU Cooling + Heating - Ceiling Cassette Air Conditioning System - 20.5 SEER
LG - 18k BTU Cooling + Heating - Ceiling Cassette Air Conditioning System - 20.5 SEER Model: LC188HV4 Item Number: 95223
$2,622.95
Backordered
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    172 Pounds Learn More
    Type
    Ceiling Cassette
    Product Line
    Multi F
View More
Bundle Includes 3 items
  • (1) LG 18,000 BTU Outdoor Condenser Single Zone (LUU189HV)
  • (1) LG 18,000 BTU Ceiling Cassette For Single/Multi-Zone w/o Grille (LCN188HV4-NG)
  • (1) LG Multi F Four-Way Ceiling Cassette Grille (PT-QCHW0)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LC188HV4

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. LG's Four-Way Ceiling Cassette systems, such as this LC188HV4, have several advantages over wall mounted systems. By recessing the LCN188HV4 indoor unit, a 1.5" thick grille is the only part of the equipment that stays visible. Unobtrusive comfort isn't the only advantage of a ceiling cassette; with four air flow directions, the LC188HV4 provides excellent coverage for large zones. If you're looking for a low-profile alternative to wall mounted ductless heat pump systems, LG's Four-Way Ceiling Cassettes are a great choice.
Product Note
This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system. LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 3 items
  • LG 18,000 BTU Outdoor Condenser Single Zone
    Model: LUU189HV
    Item Number: 95028
    Quantity: 1
  • LG 18,000 BTU Ceiling Cassette For Single/Multi-Zone w/o Grille
    Model: LCN188HV4-NG
    Item Number: 95032
    Quantity: 1
  • LG Multi F Four-Way Ceiling Cassette Grille
    Model: PT-QCHW0
    Item Number: 66494
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overview
Bundle Overview
LUU189HV Specifications
LCN188HV4-NG Specifications
PT-QCHW0 Specifications
General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
18
Outdoor Unit Size
18000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
1/4" x 1/2"
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Heating Capacity
18000 BTU
SEER Learn More
20.5
EER Learn More
12.5
HSPF Learn More
10.0
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
5 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
172 Pounds
Shipping Weight
176 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
202177384
General Information
Type
Outdoor Condenser
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
18000
Minimum Sound Level
48 dB
Maximum Sound Level Learn More
52 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
5 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20 Amps
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
164 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
32 41/48 Inches
Product Width
37 5/12 Inches
Product Depth
13 Inches
Product Weight
133 Pounds
Shipping Weight
140 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
18
Installation Location
Indoor
Grille
Not Included
Required Grille Model
PT-UQC
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
459 CFM
Minimum Air Flow
388 CFM
Minimum Sound Level
36 dB
Maximum Sound Level Learn More
41 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
10 5/48 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
32 Pounds
Shipping Weight
42 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Grille
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Installation Location
Indoor
Dimensions
Product Height
2 7/16 Inches
Product Width
24 7/16 Inches
Product Depth
24 7/16 Inches
Product Weight
7 Pounds
