LG 18,000 BTU 20 SEER Ceiling Recess Heat Pump System

Model: LC187HV Item Number: 56544
Ask a Question
LG LC187HV
PREVIOUS
NEXT
LG LC187HV
LG LC187HV
LG LC187HV
LG LC187HV
LG LC187HV
Enlarge Image
LG LC187HV
LG LC187HV
LG LC187HV
LG LC187HV
LG LC187HV
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New ? This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Ceiling Cassette
    Product Line
    Multi F
    Product Sub-line
    Four-Way Ceiling Cassette
View More

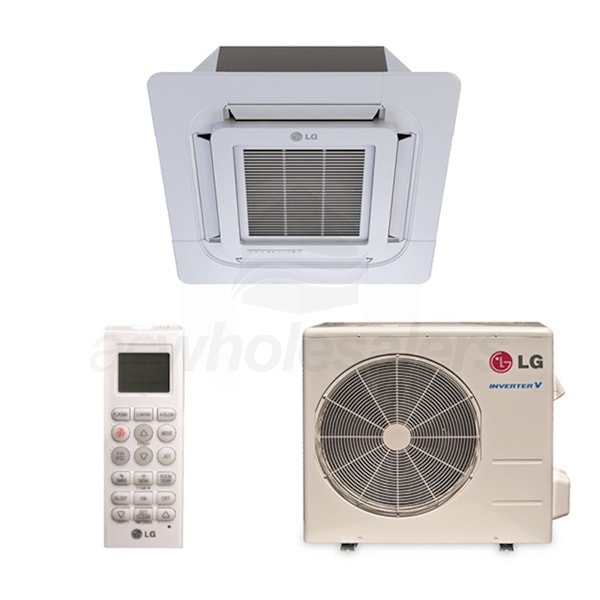

Bundle Includes 3 items
  • (1) LG - 18k BTU - Four-Way Ceiling Cassette Outdoor Condenser - Single Zone Only (LUU187HV)
  • (1) LG - 18k BTU - Ceiling Cassette - For Single-Zone - Grille Sold Separately (LCN187HV)
  • (1) LG Four-Way Ceiling Cassette - Ceiling Cassette Grille (PT-UMC1)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LC187HV

Overview for LG LC187HVLG Electronics' products have led the global air conditioner market with excellent performance and innovative design. The Ceiling Cassette LG models are ideal for light commercial applications and work well in large, open spaces. These are high performance air conditioners with a high SEER inverter and excellent design.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 3 items

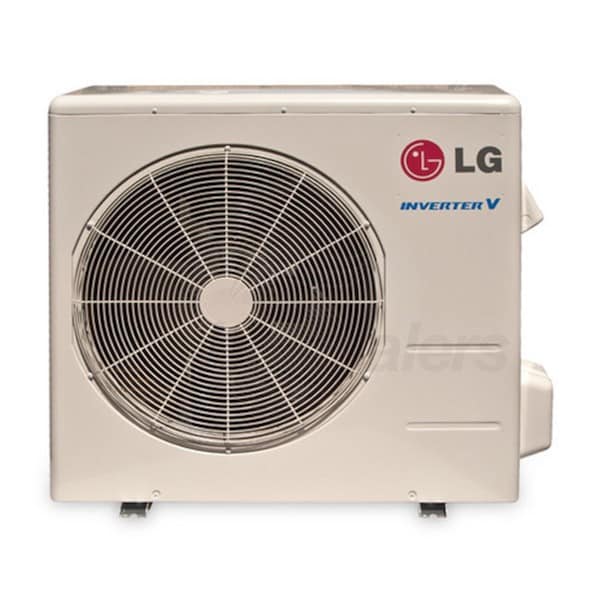

    • LG - 18k BTU - Four-Way Ceiling Cassette Outdoor Condenser - Single Zone Only
      Model: LUU187HV
      Item Number: 45662
      Quantity: 1

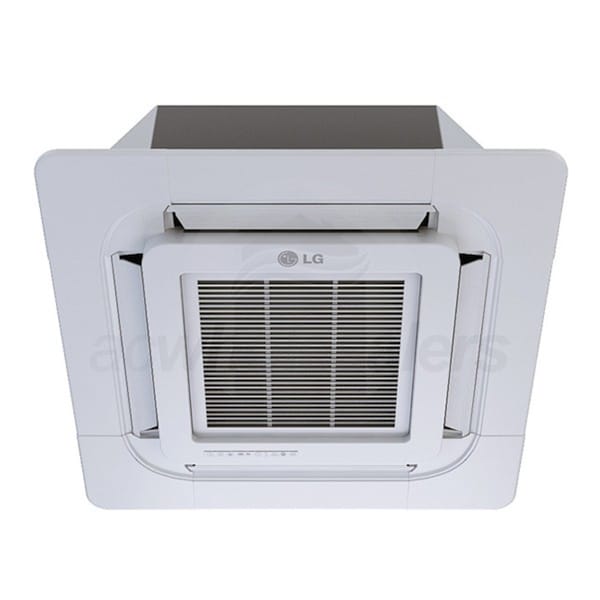

    • LG - 18k BTU - Ceiling Cassette - For Single-Zone - Grille Sold Separately
      Model: LCN187HV
      Item Number: 45661
      Quantity: 1
    • LG Four-Way Ceiling Cassette - Ceiling Cassette Grille
      Model: PT-UMC1
      Item Number: 45668
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    LUU187HV Specifications
    LCN187HV Specifications
    PT-UMC1 Specifications
    General Information
    Type
    Ceiling Cassette
    Product Line
    Multi F
    Product Sub-line
    Four-Way Ceiling Cassette
    Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones ? A zone is a room or area within a building that has its own temperature control.
    1
    Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
    18
    Refrigerant Type
    R-410A
    DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    3/8" x 5/8"
    UPC
    048231369749
    Performance
    Nominal Capacity
    18000 BTU
    Cooling Capacity
    18000 BTU
    Heating Capacity
    18000 BTU
    SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    20.0
    EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    15.0
    HSPF ? HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    10.1
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    5859619
    General Information
    Type
    Outdoor Condenser
    Product Line
    Four-Way Ceiling Cassette
    Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Nominal Capacity
    18000 BTU
    Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    52 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    164 Feet
    Liquid Connection Size
    3/8 Inch
    Gas Connection Size
    5/8 Inch
    Product Height
    32 41/48 Inches
    Product Width
    37 5/12 Inches
    Product Depth
    13 Inches
    Product Weight
    133 Pounds
    Shipping Weight
    148 Pounds
    Certifications
    UL Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Ceiling Cassette
    Product Line
    Four-Way Ceiling Cassette
    Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
    18
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Indoor
    Grille
    Not Included
    Required Grille Model
    PT-UMC1
    Performance
    Nominal Capacity
    18000 BTU
    Cooling Capacity
    18000 BTU
    Minimum Air Flow
    424 CFM
    Maximum Air Flow
    565 CFM
    Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    38 dB
    Minimum Sound Level
    34 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Liquid Connection Size
    3/8 Inch
    Gas Connection Size
    5/8 Inch
    Product Height
    8 1/24 Inches
    Product Width
    33 1/16 Inches
    Product Depth
    33 1/16 Inches
    Product Weight
    46 Pounds
    Shipping Weight
    55 Pounds
    Certifications
    UL Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Grille
    Product Line
    Four-Way Ceiling Cassette
    Dimensions
    Product Height
    1 Inch
    Product Width
    37 5/12 Inches
    Product Depth
    37 5/12 Inches
    Product Weight
    11 Pounds
    Shipping Weight
    20 Pounds
