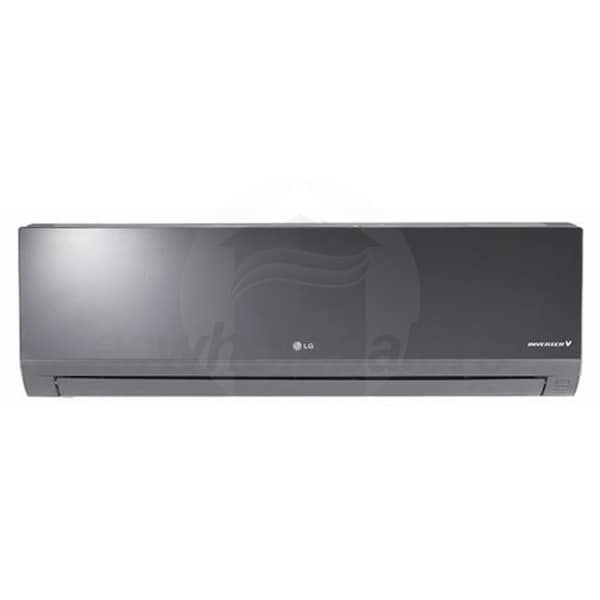

LG 12,000 BTU Ductless Heat Pump Air Conditioner Air Handler

Model: LAN120HSV5 Item Number: 80889
LG LAN120HSV5
PREVIOUS
NEXT
LG LAN120HSV5
LG LAN120HSV5
LG LAN120HSV5
LG LAN120HSV5
Enlarge Image
LG LAN120HSV5
LG LAN120HSV5
Watch Video
LG LAN120HSV5
Watch Video
LG LAN120HSV5
Watch Video
LG LAN120HSV5
Watch Video
LG LAN120HSV5
Watch Video
LG LAN120HSV5
Watch Video
LG LAN120HSV5
LG LAN120HSV5
LG LAN120HSV5
View All
Originally $638.00, you save 5%
Our Price: $606.10
synchrony card icon
$102 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Wednesday, March 20th
Shipping to60601
LG 12,000 BTU Ductless Heat Pump Air Conditioner Air Handler
LG 12,000 BTU Ductless Heat Pump Air Conditioner Air Handler Model: LAN120HSV5 Item Number: 80889
$606.10
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    24 Pounds Learn More
    24 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split System Components
    UPC
    048231385718
Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for LG LAN120HSV5

Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center at 866-631-6389 option 1 for alternate options.

Overview for LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air HandlerThis LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler is part of LG's Ductless Mini Split Air Conditioning lineup that offers convenient solutions that are cost effective, quiet, and attractive. This LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler is a wall mounted interior unit that is slim, lightweight, and aesthetically pleasing. LG Ductless Mini Splits are high performance air conditioners with high electrical savings.This LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler is an indoor unit only, and requires an outdoor unit to function. Outdoor unit must be purchased separately.LG Ductless Mini Split Air Conditioner systems offer many styles of indoor units to complement any decor. This LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler was built with smart technology to enhance the user's experience. LG Air Conditioner Manufacture has continued efforts to look for the most innovative ideas in HVAC as well a commitment to building green technologies ensures that LG Ductless Mini Splits will continue to bring to market smarter, sustainable products.Did you know that installation for the LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler is easy and requires no duct work?LG Ductless Mini Split Air Conditioning Systems are designed for easier and more efficient installation. They require no ductwork, and this LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler unit can mount on any wall. Installation requires only a small hole to be drilled in the wall. Since this LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler has a small footprint this ensures space-saving convenience. Moreover, long refrigerant piping lengths allow for extra installation and design flexibility.The LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler makes air flow optimization a breeze.This LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler has filters that reduce the dust and microscopic particles including pollen, pet dander and odors while primary filters that are antifungal and washable, reducing operation costs. The LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler also has a self-clean on the coil to protect against mold growth. This LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler has the Jet Cool or Jet Heat Mode function which operates the unit at a high speed for up to 30 minutes to quickly cool or heat a room. The Swirl Wind or Chaos Wind mode allows for customized louver and fan speed operation to create a stronger, wider airflow for reduced temperature stratification and to provide more natural air circulation.Wait the LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler has an Auto Mode?Auto Operation adjusts the temperature and fan speed automatically to match the user's preference from three levels of comfort. You can also take advantage of the 24 Hour Timer built into the LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler as a standard feature. Set a wide variety of timer based operations, start and stop at specific times.This LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler is manufactured by LG Electronics USA using state of the art Air Conditioning TechnologiesLG Electronics USA, based in Englewood Cliffs, NJ, is the North American subsidiary of LG Electronics, a $48 billion global force and technology leader in consumer electronics, home appliances and mobile communications. LG Ductless Mini Split Air Conditioning, a proud ENERGY STAR Partner of the Year for five consecutive years, sells a range of stylish and innovative home entertainment products, mobile phones, home appliances, air conditioning and heating systems and solar energy solutions in the United States, all under LG's 'Life's Good' marketing theme. The LG Ductless Air Conditioning is a business leading player in the global Ductless Mini Split Air Conditioning market. LG Ductless Air Conditioning manufacturers both commercial and residential ductless air conditioners such as this LG Ductless Mini Split Heat Pump Air Conditioner LAN120HSV5 Wall Mounted Air Handler and provides total sustainability and building management solutions.
  • Built in Wi-Fi
  • The LAN120HSV5 has built in Wi-Fi, enabling the control of your LG air conditioner with smart enabled devices. Simply download the SmartThinQ® app on your smart device to get started.
  • Air Flow Options
  • This unit gives you two options for automating air flow. In swing mode, the unit will rotate through all four air flow directions to ensure consistent comfort in every corner of your room.
  • Quiet Design
  • The LAN120HSV5 can operate at volumes as low as 31 dB thanks to a combination of cutting edge components. LG utilizes a cross flow fan design that reduces noise levels by limiting the surface pressure of air flow.
  • Self-Cleaning Coil
  • The LAN120HSV5 features a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
  • Jet Cool
  • This LG unit feature a Jet Cool operation mode for rapid cooling. In this mode, the indoor unit observes a set point of 64 degrees Fahrenheit and the fan operates at maximum speed for 30 minutes to quickly cool your zone.
  • Automated Operation
  • Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
  • Dehumidify
  • LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality
  • The LAN120HSV5 indoor unit uses a dual filtration system to keep your air clean. A washable anti-fungal filter is the first line of defense against dust and bacteria.
  • Hot Start
  • When the hot start function is enabled, the LAN120HSV5's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
  • Product Compatible With
  • LG LMU18CHV, LMU24CHV, LMU36CHV, LMU540HV, LSU120HSV5 Mini Split Outdoor Condensers
  • Product Note
    This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split System Components
    UPC
    048231385718
    General Information
    Type
    Wall Mounted
    Product Line
    Multi F
    Product Sub-line
    Art Cool Mirror
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A

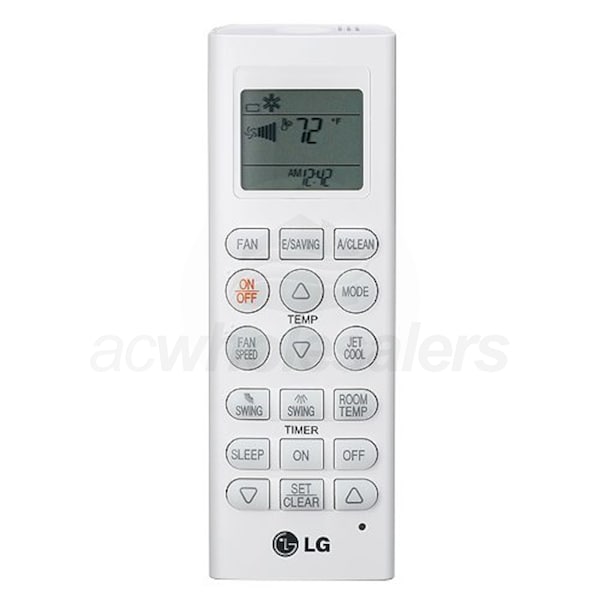

    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    282 CFM
    Minimum Air Flow
    177 CFM
    Minimum Sound Level
    19 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    39 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Maximum Line Length
    82 Feet
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Drain Outlet Diameter
    5/8 Inch
    Product Height
    11 1/4 Inches
    Product Width
    34 13/16 Inches
    Product Depth
    8 1/16 Inches
    Product Weight
    24 Pounds
    Shipping Weight
    29 Pounds
    Certifications
    ETL Listed
    Yes
    UL Listed
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
