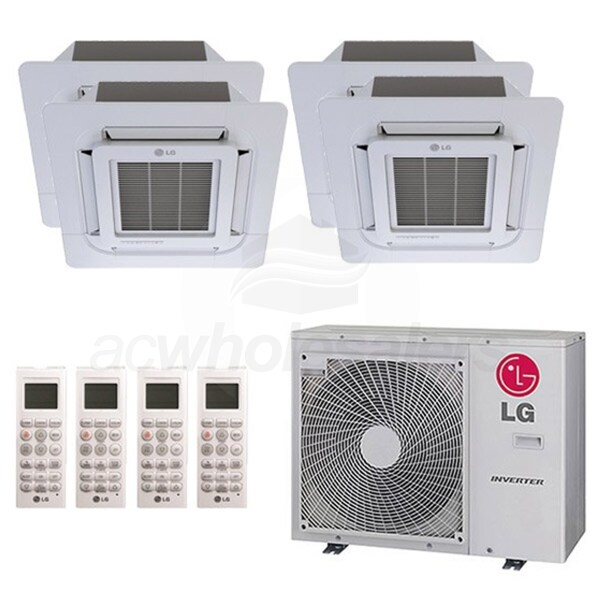

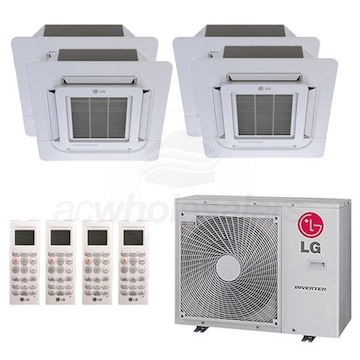

LG 35,000 BTU 22 SEER Cassette Quad Zone Heat Pump System 7+7+9+12

Model: L4H30C07070912-A Item Number: 58106
Ask a Question
LG L4H30C07070912-A
PREVIOUS
NEXT
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
Enlarge Image
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
View All
Originally $4,298.24, you save 5%
Our Price: $4,083.33
Only 2 In-Stock
Ships Monday, February 25th
LG 35,000 BTU 22 SEER Cassette Quad Zone Heat Pump System 7+7+9+12
LG 35,000 BTU 22 SEER Cassette Quad Zone Heat Pump System 7+7+9+12 Model: L4H30C07070912-A Item Number: 58106
$4,083.33
Only 2 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping ? *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate ? *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Truck Icon
Low Price Guarantee ? Shop with Confidence knowing you have the Right System at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know - we will match the price of any online competitor PLUS beat that price by 5%.

Simply call our sales or customer service department at 866-631-6389 or 866-793-0323 and one of our representatives will be happy to price match the product(s) for you.
Ask a Question
Specification Highlights
    Condition
    New ? This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    289 Pounds ? Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Ceiling Cassette
    Product Line
    Multi F
View More
Bundle Includes 9 items
  • (1) LG - 30k BTU - Outdoor Condenser - For 2-4 Zones (LMU30CHV)
  • (1) LG - 12k BTU - Ceiling Cassette - For Single/Multi Zone - Grille Sold Separately (LCN127HV4-NOGRILLE)
  • (1) LG - 9K BTU - Ceiling Cassette - For Single/Multi-Zone - Grille Sold Separately (LCN098HV4-NG)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG L4H30C07070912-A

LG's devotion to providing efficient ductless solutions can be seen across the Multi F line. This ceiling cassette ductless heat pump system pairs a powerful LMU30CHV outdoor condenser with four ceiling cassette indoor units. LG's Multi F ceiling cassette indoor units feature four air outlets which allow them to provide consistent air flow to the furthest reaches of large rooms. In addition to providing excellent coverage, the ceiling cassette indoor units also feature an exceptionally low profile. When installed, a grille less than 1" thick is the only visible clue that your room is receiving efficient heating and cooling LG's devotion to providing efficient ductless solutions can be seen across the Multi F line.
Product Note
Each indoor unit will include any port adapters necessary for multi-zone installation.This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system
Bundle Includes 9 items
  • LG - 30k BTU - Outdoor Condenser - For 2-4 Zones
    Model: LMU30CHV
    Item Number: 55817
    Quantity: 1
  • LG - 12k BTU - Ceiling Cassette - For Single/Multi Zone - Grille Sold Separately
    Model: LCN127HV4-NOGRILLE
    Item Number: 70736
    Quantity: 1
  • LG - 9K BTU - Ceiling Cassette - For Single/Multi-Zone - Grille Sold Separately
    Model: LCN098HV4-NG
    Item Number: 95030
    Quantity: 1
  • LG - 7k BTU - Ceiling Cassette - For Multi-Zone - Grille Sold Separately
    Model: LMCN078HV-NG
    Item Number: 95029
    Quantity: 2
  • LG Multi F Four-Way Ceiling Cassette - Ceiling Cassette Grille
    Model: PT-UQC
    Item Number: 45721
    Quantity: 4
Specifications
View More

Specifications

Included In This Bundle

Bundle Overview
Bundle Overview
LMU30CHV Specifications
LCN127HV4-NOGRILLE Specifications
LCN098HV4-NG Specifications
LMCN078HV-NG Specifications
PT-UQC Specifications
General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating + Cooling
Number of Zones ? A zone is a room or area within a building that has its own temperature control.
4
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
6 + 6 + 9 + 12
Refrigerant Type
R-410A
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Performance
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
22.0
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
13.0
HSPF ? HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
10.0
Cooling Power Input
2310 Watts
Heating Power Input
2490 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
289 Pounds
Shipping Weight
336 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
8111325
General Information
Type
Outdoor Condenser
Product Line
Multi F
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating + Cooling
Maximum Number of Zones
4
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Nominal Capacity
30000 BTU
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
246.1 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Product Height
32 41/48 Inches
Product Width
37 10/24 Inches
Product Depth
15 1/2 Inches
Product Weight
137 Pounds
Shipping Weight
148 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating + Cooling
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
12
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Indoor
Grille
Not Included
Required Grille Model
PT-UQC
Performance
Nominal Capacity
12000 BTU
Cooling Capacity
12000 BTU
Minimum Air Flow
247 CFM
Maximum Air Flow
335 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
38 dB
Minimum Sound Level
32 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
8 7/16 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
40 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating + Cooling
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
9
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Indoor
Required Grille Model
PT-UQC
Performance
Nominal Capacity
9000 BTU
Cooling Capacity
9000 BTU
Minimum Air Flow
230 CFM
Maximum Air Flow
300 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
36 dB
Minimum Sound Level
30 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
8 7/16 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
29 Pounds
Shipping Weight
37 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
General Information
Type
Ceiling Cassette
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating + Cooling
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
7
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Indoor
Grille
Included
Required Grille Model
PT-UQC
Performance
Nominal Capacity
7000 BTU
Cooling Capacity
7000 BTU
Minimum Air Flow
177 CFM
Maximum Air Flow
265 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
31 dB
Minimum Sound Level
24 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
8 7/16 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
26 Pounds
Shipping Weight
31 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
General Information
Type
Grille
Product Line
Multi F
Product Sub-line
Four-Way Ceiling Cassette
Installation Location
Indoor
Dimensions
Product Height
2 7/16 Inches
Product Width
27 9/16 Inches
Product Depth
27 9/16 Inches
Product Weight
7 Pounds
Shipping Weight
9 Pounds
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Reviews
View More

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Product Q&A
View More

Product Q&A

Be the first to ask a question.

Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

Manuals
View More
Share
×
LG 35,000 BTU 22 SEER Cassette Quad Zone Heat Pump System 7+7+9+12
LG L4H30C07070912-A
+
Reset View
Loading
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
LG L4H30C07070912-A
×
Customer Review Images
Loading
Scroll Up ArrowTo Top
