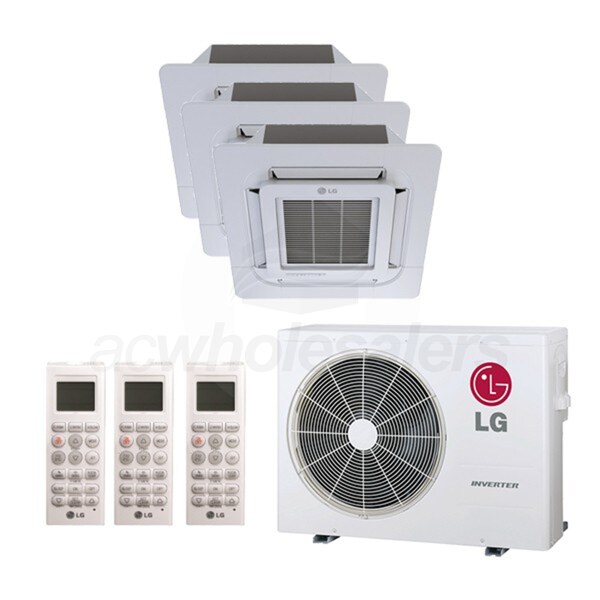

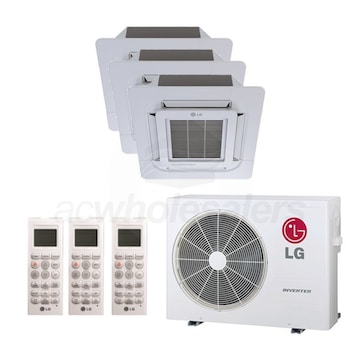

LG Ceiling Cassette 3-Zone System - 24,000 BTU Outdoor - 7k + 7k + 7k Indoor - 22.5 SEER2

Model: L3H24C07070700-A Item Number: 57493
LG L3H24C07070700-A
PREVIOUS
NEXT
LG L3H24C07070700-A
LG L3H24C07070700-A
LG L3H24C07070700-A
LG L3H24C07070700-A
LG L3H24C07070700-A
Enlarge Image
LG L3H24C07070700-A
LG L3H24C07070700-A
LG L3H24C07070700-A
LG L3H24C07070700-A
LG L3H24C07070700-A
View All
Originally $4,316.00, you save 5%
Our Price: $4,100.20
synchrony card icon
$52 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships Friday, March 29th
Shipping to60601
LG Ceiling Cassette 3-Zone System - 24,000 BTU Outdoor - 7k + 7k + 7k Indoor - 22.5 SEER2
LG Ceiling Cassette 3-Zone System - 24,000 BTU Outdoor - 7k + 7k + 7k Indoor - 22.5 SEER2 Model: L3H24C07070700-A Item Number: 57493
$4,100.20
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    199 Pounds Learn More
    199 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
Bundle Includes 7 items
  • product image
    (1) LG - 24k BTU - Outdoor Condenser - For 2-3 Zones (LMU243HV)
  • product image
    (3) LG 7,000 BTU Ceiling Cassette For Multi-Zone w/o Grille (LMCN078HV-NG)
  • product image
    (3) LG Multi F Four-Way Ceiling Cassette - Ceiling Cassette Grille (PT-QAGW0)
Indoor Unit Sizes
Learn More
Indoor Unit Sizes
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Select Attribute
Outdoor Unit BTU/h
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG L3H24C07070700-A

LG's devotion to providing efficient ductless solutions can be seen across the Multi F line. This ceiling cassette ductless heat pump system pairs a powerful LMU243HV outdoor condenser with three ceiling cassette indoor units. LG's Multi F ceiling cassette indoor units feature four air outlets which allow them to provide consistent air flow to the furthest reaches of large rooms. In addition to providing excellent coverage, the ceiling cassette indoor units also feature an exceptionally low profile. When installed, a grille less than 1" thick is the only visible clue that your room is receiving efficient heating and cooling from a ductless heat pump system.
  • Inverter Technology
  • LG's outdoor condensers are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LMU243HV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Quiet Design
  • Thanks to brushless fan motors, both the outdoor and indoor units in this system produce less mechanical and electrical noise. A twin rotary compressor in the outdoor unit also limits vibration noise.
  • Air Flow Options
  • There are three automated air flow options with LG's ceiling cassette indoor units: swing mode, Chaos Wind, and Swirl Wind mode. Any of these modes can be activated to provide optimal circulation specific to your home.
  • Jet Cool
  • These LG mini split indoor units feature a Jet Cool operation mode for rapid cooling. In this mode, an indoor unit observes a set point of 64 degrees Fahrenheit while the fan operates at maximum speed for 30 minutes to quickly cool your zone.
  • Automated Operation
  • Auto operation mode continually compares your zones' current and desired temperatures and uses that data to intelligently adjust fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperatures for an hour before the timer function automatically deactivates the units.
  • Condensate Protection
  • Condensate overflow can damage your indoor unit and your home. Internal condensate pumps with 27.5" of lift protect these indoor units through reliable, effective condensate removal.
  • Improved Air Quality
  • These mini split indoor units include anti-fungal filters to keep your air clean. These filters capture contaminants like dust and bacteria, and they are washable to ensure long term air quality.
  • Dehumidify
  • LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the units' internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Hot Start
  • When the hot start function is enabled on a mini split indoor unit, the fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
  • Supply Air Branch Duct Connections
  • LG cassette units feature designated cutouts for a branch duct, giving you the ability to duct up to 1/2 of the unit's airflow capacity to adjacent spaces.
  • Recommended line set sizes for indoor unit connectivity:
  • LMCN078HV: 1/4" x 3/8" Line Set (Qty 3)
  • All LG branch boxes systems require a min of 16.4 feet of line set between the condenser and the branch box, from the branch box to the distribution box and from the distribution box to the indoor unit.
  • Product Note
    Each indoor unit will include any port adapters necessary for multi-zone installation.This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system.LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 7 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Ceiling Cassette
    Product Line
    Multi F
    Product Sub-line
    Four-Way Ceiling Cassette
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    3
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    7 + 7 + 7
    Outdoor Unit Size
    24000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Cooling Power Input
    1580 Watts
    Heating Power Input
    1780 Watts
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    22.5
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    12.5
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    9.4
    Dimensions
    Product Weight
    199 Pounds
    Shipping Weight
    203 Pounds
    Certifications
    ETL Listed
    Yes
    UL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    208131886
    General Information
    Type
    Outdoor Condenser
    Product Line
    Multi F
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    3
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    24000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    54 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    20 Amps
    Dimensions
    Maximum Line Length
    230 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Product Height
    25 29/48 Inches
    Product Width
    34 1/4 Inches
    Product Depth
    11 25/48 Inches
    Product Weight
    101.4 Pounds
    Shipping Weight
    110.2 Pounds
    Certifications
    UL Listed
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Ceiling Cassette
    Product Line
    Multi F
    Product Sub-line
    Four-Way Ceiling Cassette
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A

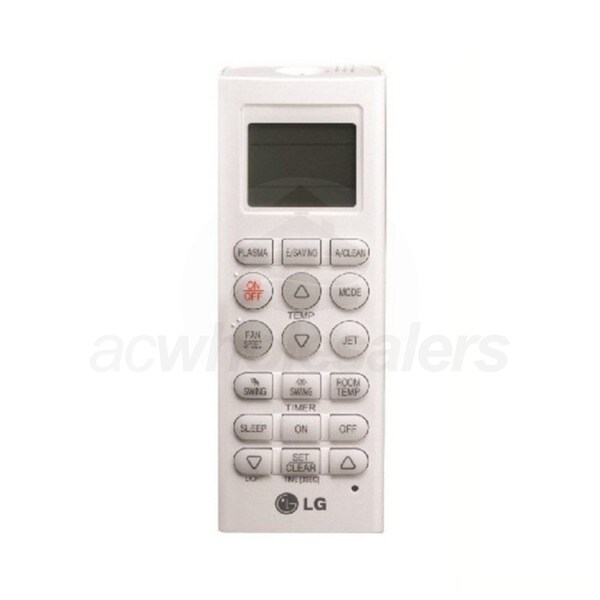

    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    7
    Installation Location
    Indoor
    Grille
    Not Included
    Required Grille Model
    PT-UQC
    Performance
    Cooling BTU
    7000
    Cooling Capacity
    7000 BTU
    Maximum Air Flow
    265 CFM
    Minimum Air Flow
    177 CFM
    Minimum Sound Level
    24 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    31 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    8 7/16 Inches
    Product Width
    22 7/16 Inches
    Product Depth
    22 7/16 Inches
    Product Weight
    26 Pounds
    Shipping Weight
    31 Pounds
    Certifications
    UL Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Grille
    Product Line
    Multi F
    Product Sub-line
    Four-Way Ceiling Cassette
    Product Category
    Mini Split Accessories
    Installation Location
    Indoor
    Dimensions
    Product Height
    1 3/8 Inches
    Product Width
    24 19/48 Inches
    Product Depth
    24 19/48 Inches
    Product Weight
    6.3 Pounds
