LG - 470 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 10" Duct

Model: ARVU053ZEA2 Item Number: 81438
LG ARVU053ZEA2
PREVIOUS
NEXT
LG ARVU053ZEA2
Enlarge Image
Our Price: $3,140.00
synchrony card icon
$55 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 12-16 Weeks
LG - 470 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 10
LG - 470 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 10" Duct Model: ARVU053ZEA2 Item Number: 81438
$3,140.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    148 Pounds Learn More
    148 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Energy Recovery Ventilators (ERVs)
Air Flow (CFM)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for LG ARVU053ZEA2

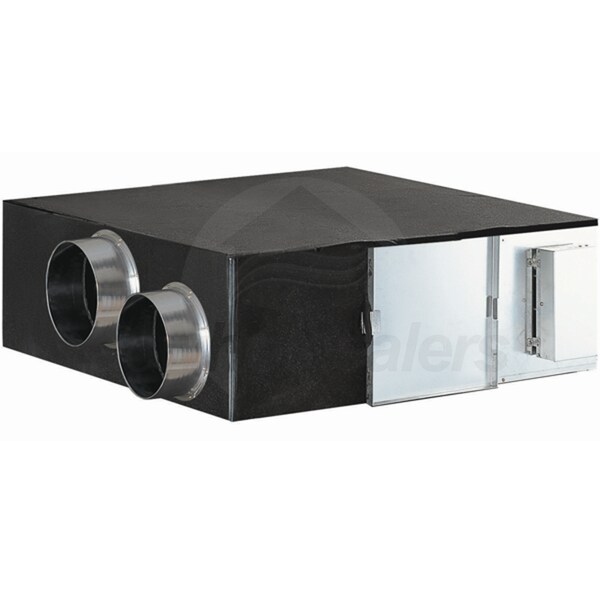

The LG Energy Recovery Ventilator (ERV) is a 470 CFM ducted fan, designed to make your heating and cooling systems more efficient by recovering heat from exhaust air. Perfect for hotels, restaurants, schools, and office buildings, the LG ERV improves indoor air quality by bringing fresh outside air indoors. The LG ERV features an electronic control board, three speed brushless motor and washable filters.
  • Energy Saving
  • Indoor air passes through the heat exchanger to pre-warm or pre-cool the incoming outside air, saving you money and energy by reducing the load your HVAC system needs to handle.
  • Multiple Modes
  • The LG ERV can be operated independently in heat exchange mode or bypass mode. Heat exchange mode brings indoor and outdoor air across the heat exchanger, while bypass mode draws in untempered outdoor air.
  • Simple Maintenance
  • With washable filters that are easy to access, cleaning the heat exchanger is a breeze.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Energy Recovery Ventilators (ERVs)
    General Information
    Type
    ERV
    Product Line
    ARV
    Product Category
    Energy Recovery Ventilators (ERVs)
    Ports Quantity
    4
    Port Location
    Side
    Performance
    Maximum Air Flow
    471 CFM
    Apparent Sensible Effectiveness
    62 %
    Minimum Air Flow
    388 CFM
    Total Recovery Efficiency
    37 %
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    10 Inches
    Product Height
    14 3/8 Inches
    Product Width
    44 7/8 Inches
    Product Depth
    41 13/16 Inches
    Product Weight
    148 Pounds
    Shipping Weight
    177 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    5593064
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
