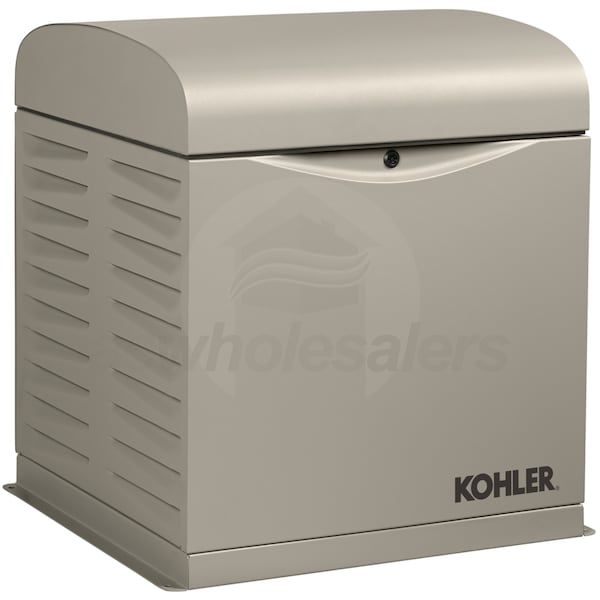

Kohler 10RESV - 10 kW Home Standby Generator

Model: 10RESV-QS4 Item Number: 15487
Kohler 10RESV-QS4
PREVIOUS
NEXT
Kohler 10RESV-QS4
Kohler 10RESV-QS4
Kohler 10RESV-QS4
Enlarge Image
Kohler 10RESV-QS4
Kohler 10RESV-QS4
Kohler 10RESV-QS4
View All
Our Price: $3,325.00
synchrony card icon
$59 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
In-Stock
Ships Wednesday, February 1st
Kohler 10RESV - 10 kW Home Standby Generator
Kohler 10RESV - 10 kW Home Standby Generator Model: 10RESV-QS4 Item Number: 15487
$3,325.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator - Standby
Size
Select Attribute
Auto Transfer Switch
Select Attribute
Enclosure
Select Attribute
Kit
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Kohler 10RESV-QS4

  • Kohler Series 7000 V-Twin OHV Engine
  • Powerful and reliable engine with hydraulic valve lifters
  • Powerful Performance w/ PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Premium Power Quality (+/-1% Voltage Regulation)
  • Protects sophisticated electronics with low distortion (<5%THD)
  • Fast Response Time (Requires Automatic Transfer Switch)
  • Kohler™ generators restore power in as little as 10 seconds
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx 71 dB(A) Max
  • RDC2 Controller
  • ATS status via LED lights on controller; Built-In 2.5A Battery Charger
  • Glare-resistant, 2-line 16-character display - No More Codes
  • Real time clock allows you to easily set weekly exercise
  • Includes OnCue Plus Remote Monitoring System
  • Built-in Ethernet card, no hardware needed for OnCue
  • Bold New E-Coat Dipped Steel Enclosure
  • Pained with a durable powder coat finish to minimize corrosion
  • Automatic Transfer Switch & Group 51 Battery (Required & Sold Separately)
  • ***Not Compatible For Off-Grid Applications***
  • Approved for stationary standby applications in locations served by a reliable utility source
  • Premium Warranty - 5-year/2,000-Hour Limited Warranty
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator - Standby
    Overview
    Product Category
    Generator - Standby
    Weight
    428 Pounds
    Consumer Warranty
    5 Years
    Commercial Warranty
    5 Years
    Product Length
    30.6 Inches
    Product Width
    28 Inches
    Product Height
    32.4 Inches
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    10000 Watts
    Fuel Type
    LP/Natural Gas
    NG Power Capacity
    9000 Watts
    LP Power Capacity
    10000 Watts
    NG Fuel Consumption @ 50% Load
    120 ft³/hr
    NG Fuel Consumption @ 100% Load
    179 ft³/hr
    LP Fuel Consumption @ 50% Load
    1.5 gallons/hr
    LP Fuel Consumption @ 100% Load
    2.5 gallons/hr
    Rated Amps
    41.7 Amps
    Decibel Rating @ 7m Learn More
    Decibel Rating @ 7m
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    67-71
    Hour Meter
    Yes
    Transfer Switch
    Automatic (Not Included)
    Battery
    Not Included
    Cooling System
    Air Cooled
    UL Listed
    Yes
    Grade Type
    Emergency
    Wi-Fi Remote Monitoring
    Sold Separately
    Prime Power
    No
    Engine
    Engine Brand
    Kohler
    Starting System
    12v Auto Start
    CC
    725 CC
    Consumer Engine Warranty
    5 Years
    Commercial Engine Warranty
    5 Years
    Engine RPM
    3600 RPM
    Low Oil Alert/Shutdown
    Yes
