King Electric - 825 CFM - 12.5 kW - 2-Stage Electronic Unit Heater with Fuse Block and Remote Sensor - 240/208V - 1 Phase

Model: KB2412-1-ECO2S-PLUS-FB Item Number: 115255
Ask a Question
King Electric KB2412-1-ECO2S-PLUS-FB
PREVIOUS
NEXT
King Electric KB2412-1-ECO2S-PLUS-FB
King Electric KB2412-1-ECO2S-PLUS-FB
King Electric KB2412-1-ECO2S-PLUS-FB
Enlarge Image
King Electric KB2412-1-ECO2S-PLUS-FB
King Electric KB2412-1-ECO2S-PLUS-FB
King Electric KB2412-1-ECO2S-PLUS-FB
View All
Our Price: $1,514.00
synchrony card icon
$253 / Month
Suggested monthly payments with 6 month financing.
Ships in 3-4 Weeks
King Electric - 825 CFM - 12.5 kW - 2-Stage Electronic Unit Heater with Fuse Block and Remote Sensor - 240/208V - 1 Phase
King Electric - 825 CFM - 12.5 kW - 2-Stage Electronic Unit Heater with Fuse Block and Remote Sensor - 240/208V - 1 Phase Model: KB2412-1-ECO2S-PLUS-FB Item Number: 115255
$1,514.00
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    43 Pounds Learn More
    Type
    Unit Heaters
    Product Line
    KB ECO2S+
View More
Features
View More

Features

Overview for King Electric KB2412-1-ECO2S-PLUS-FB

The King Electric KB ECO2S Plus unit heater is intended for large or exposed areas as primary or supplemental heat sources to prevent freezing. High air volume (CFM) and spiral finned steel elements ensure even air distribution producing cooler element operation. The KB ECO2S Plus unit heater will provide years of trouble-free service by combining the highest quality components with a dynamically balanced fan blade. Includes wall/ceiling bracket and built-in thermostat with Eco mode that automatically uses the lowest wattage needed to heat the room.
  • King Electric KB ECO2S PLUS Series Features
  • Smart ECO2S Plus Energy-Saving Design
  • Summer Fan Only and Timer Modes
  • Built-In Fan Delay To Dissipate Heat
  • High Mass Steel Fin Heat Exchanger

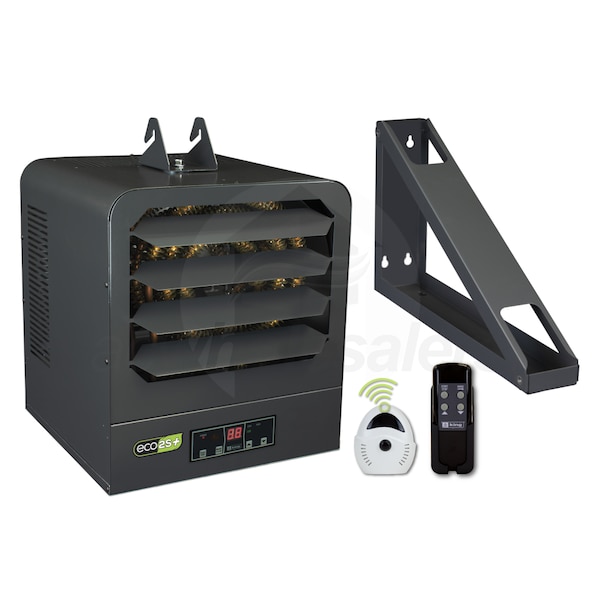

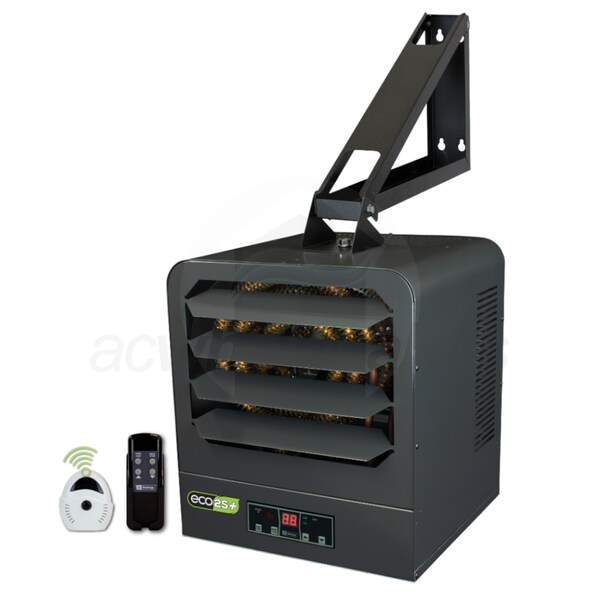

  • Product Includes
  • Hand Held Remote Control and Wall Holder
  • Universal Wall/Ceiling Bracket
  • Specifications
    View More

    Specifications

    General Information
    Type
    Unit Heaters
    Product Line
    KB ECO2S+
    Fuel Type Learn More
    Electric
    Modulating/Staging Learn More
    2 Stage
    Blower Motor
    Permanent Lubricated Unit Bearing Motor
    Mount Type
    Wall/Ceiling
    Minimum Setpoint Range
    40 F
    Maximum Setpoint Range
    99 F
    Color
    Gray
    UPC
    093319332450
    Performance
    Heating BTU
    42652
    Heating Capacity
    42652 BTU
    Electric Heat Capacity
    12.5 kW
    Air Throw
    30 Feet
    Maximum Air Flow
    400 CFM
    Heating Power Input
    12500 Watts
    Electrical Data
    Voltage
    240 Volts
    Phase
    1
    Minimum Circuit Ampacity
    52.1 Amps
    Recommended Breaker Size
    70 Amps
    Current Draw
    52.1 Amps
    Dimensions
    Product Height
    16 1/2 Inches
    Product Width
    15 Inches
    Product Depth
    18 Inches
    Product Weight
    43 Pounds
    Shipping Weight
    46 Pounds
    Certifications
    Country of Origin
    US
    UL Listed
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
    Heating Element Warranty
    5 Years
