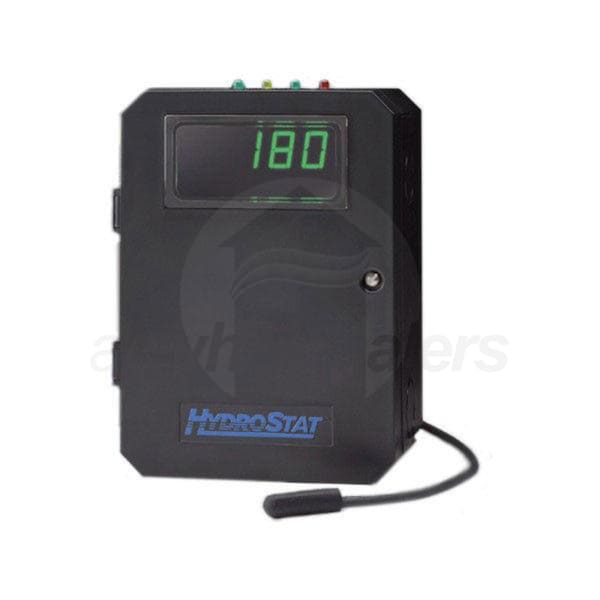

Hydrolevel HydroStat 3150 Temp Limit and Low Cut-Off

Model: 3150 Item Number: 36178
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Hydrolevel 3150
PREVIOUS
NEXT
Hydrolevel 3150
Enlarge Image
Our Price: $212.00
synchrony card icon
$36 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Factory-Direct
Ships in 4-7 Business Days
Hydrolevel HydroStat 3150 Temp Limit and Low Cut-Off
Hydrolevel HydroStat 3150 Temp Limit and Low Cut-Off Model: 3150 Item Number: 36178
$212.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    10 Pounds Learn More
    10 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Thermostats and Controls
    UPC
    642277481504
View More
Features
View More

Features

Overview for Hydrolevel 3150

The Hydrostat 3150 by Hydrolevel is designed to be used in one of two ways. By installing the Hydrostat Limit Controller on an existing immersion well, the Hydrolevel 3150 can be used as a universal replacement for common Aquastat models. Whether it's a cold start or a tankless coil boiler, this Hydrolevel limit controller is well suited to provide all the temperature functions of the control being replaced. Or, install the Hydrolevel Low Water Cutoff on a Hydrolevel Electro-Well (sold separately) to automatically activate the low water cut-off function, allowing you to add low water cut-off protection to a new or existing installation without spending additional time and costs to install a separate control.
  • Dual Function Design
  • HydroStat performs both high temperature limit and low water cut-off functions when installed with a Hydrolevel Electro-Well.
  • Replaces Common Aquastat Models
  • Can be installed on existing immersion wells to replace both cold-start and triple-action Aquastats.
  • Digital Display
  • Easy to read LED continually displays boiler temperature. Also displays temperature limit and differential settings during adjustment.
  • Easy to Set
  • Dials for setting temperature limits and differentials eliminate complicated programming.
  • Easy to Wire
  • Industry standard wiring designations make change-outs quick and easy. Uses the same terminal designations as common Aquastat models.
  • Advanced Micro-Controller Design
  • Utilizes dual thermistor technology for better accuracy, response and reliability.
  • 4 on-board diagnostic indicating lights
  • Saves time, materials and wiring
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Thermostats and Controls
    UPC
    642277481504
    General Information
    Product Category
    Thermostats and Controls
    Electrical Data
    Frequency
    60 Hz
    Dimensions
    Product Height
    6 1/4 Inches
    Product Width
    4 1/2 Inches
    Product Depth
    3 Inches
    Product Weight
    10 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
