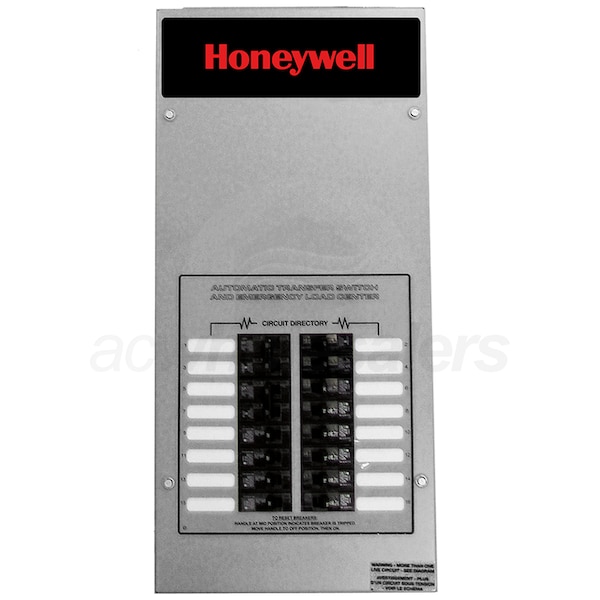

Honeywell™ 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center

Model: RXG16EZA1H Item Number: 77445
Honeywell RXG16EZA1H
PREVIOUS
NEXT
Honeywell RXG16EZA1H
Enlarge Image
Our Price: $959.00
Factory-Direct
Ships in 16-20 Weeks
Honeywell™ 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
Honeywell™ 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center Model: RXG16EZA1H Item Number: 77445
$959.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    30 Pounds
    Consumer Warranty
    5 Years
    Product Length
    27 Inches
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Honeywell RXG16EZA1H

  • Honeywell 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
  • Perfect for backing up emergency circuits
  • Steel NEMA-1 Indoor Enclosure
  • Electrostatically applied and baked powder paint
  • Breakers:
  • 5 x 15A (120V) 1-Pole
  • 5 x 20A (120V) 1-Pole
  • 1 x 20A (240V) 2-Pole
  • 1 x 40A (240V) 2-Pole
  • 1 x 50A (240V) 2-Pole
  • Includes:
  • Pre-Wired External Connection Box
  • 30' Pre-Wired Conduit From Transfer Switch To Generator
  • 2' Pre-Wired Conduit From Transfer Switch To Main Panel
  • Recommended Generator Size Range 11kW - 16kW
  • For Use With Honeywell Standby Generators Only
  • Specifications
    View More

    Specifications

    Overview
    Weight
    30 Pounds
    Consumer Warranty
    5 Years
    Product Length
    27 Inches
    Product Width
    13 Inches
    Product Height
    7 Inches
    UPC
    696471069884
    Product Specs
    Frequency
    60 Hertz
    Rated Amps
    100 Amps
    Transfer Switch Amperage
    100-Amps
    Enclosure
    NEMA 1R
    Number of Circuit Breakers
    16
    Max Utility Input
    100 Amps
    Max Generator Input
    100 Amps
    Maximum Wattage
    24000 Watts
    Transfer Switch Circuits
    15A 120V
    5
    20A 120V
    5
    30A 240V
    1
    40A 240V
    1
    50A 240V
    1
    Circuit Breaker Protection
    Each Circuit
