Honeywell Range adj. 0.5-9psi Pressuretrol with additive differential
Model: PA404A1033Item Number: 34951
Ask a Question
Enlarge Image
Specification Highlights
Condition
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
1.1 Pounds 1.1 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Thermostats and Controls
UPC
085267990134
View More
+Share This Product
Features
Features
Overview for Honeywell PA404A1033

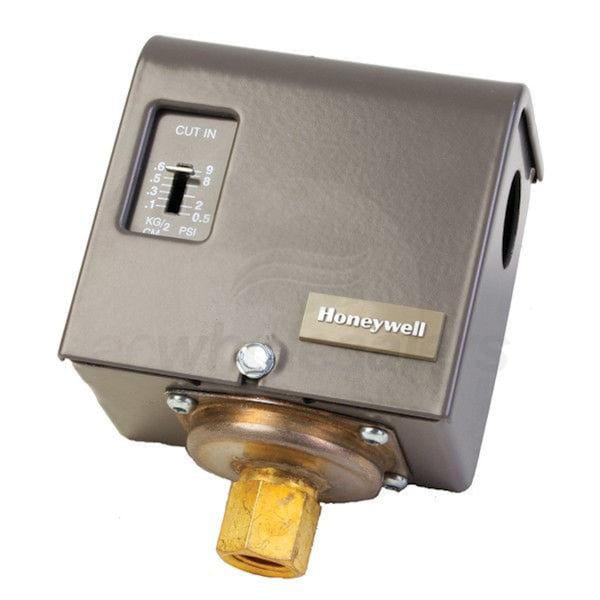

The Honeywell PA404A1033 Pressuretrol Controller For Safety Control of Steam Boilers is a series 40 pressuretrol controller for use in 24, 10, 240 or 277 volt control circuits or in self powered (millivoltage) applications.
Honeywell Home-Resideo PA404A1033 Features
Pressure actuated high limit, safety control for steam heating boilers it breaks an electrical circuit to shut down the burner if steam pressure rises above a safe level
Used with suspension-type unit heaters to make the fan circuit when a pressure rise indicates the presence of steam
Each model contains an SPST MICRO SWITCH snap-acting switch
Sensitive pressure-actuated diaphragm expands or contracts with pressure variations, moving a lever mechanism which operates the snap switch
A screw on top of the case allows set point adjustment without removing the cover
Differential is adjusted by means of a dial located inside the case
Specifications
Specifications
Overview
Product Category
Thermostats and Controls
UPC
085267990134
General Information
Product Line
PA404
Product Category
Thermostats and Controls
Performance
Minimum Operating Pressure
0.5 PSI
Maximum Operating Pressure
9 PSI
Dimensions
Product Height
4 23/48 Inches
Product Width
3 3/8 Inches
Product Length
2 1/4 Inches
Product Weight
1.1 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
