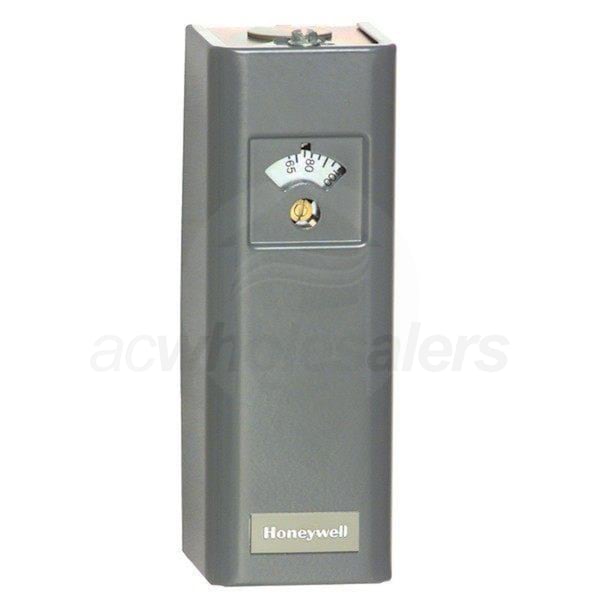

Honeywell Aquastat High/Low limit Controller 100-240F Range

Model: L4006A1009 Item Number: 33911
Ask a Question
Honeywell L4006A1009
PREVIOUS
NEXT
Honeywell L4006A1009
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    1.35 Pounds Learn More
    1.35 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    L400
    Limit Type
    High or Low
View More
Features
View More

Features

Overview for Honeywell L4006A1009

The Honeywell L4006A1009 Aquastat Controller For High or Low Limit Applications is an immersion type device for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required.
Specifications
View More

Specifications

General Information
Product Line
L400
Limit Type
High or Low
High Differential Temperature Type
Fixed
UPC
085267048583
Performance
Minimum Operating Temperature
100 F
Maximum Operating Temperature
240 F
Electrical Data
Maximum Load at 120V - AFL
8 Amps
Maximum Load at 120V - ALR
48 Amps
Maximum Load at 240V - AFL
5.1 Amps
Maximum Load at 240V - Resistive
30.6 Amps
Voltage
120/240 Volts
Phase
1
Frequency
60 Hz
Dimensions
Capillary Length
1 1/2 Inches
Bulb Size
3/8 Inch
Well Spud Size
1/2 Inch
Well Spud Type
NPT
Product Height
5 5/8 Inches
Product Width
2 Inches
Product Length
2 1/8 Inches
Product Weight
1.35 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
American Gas Association Certification
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
