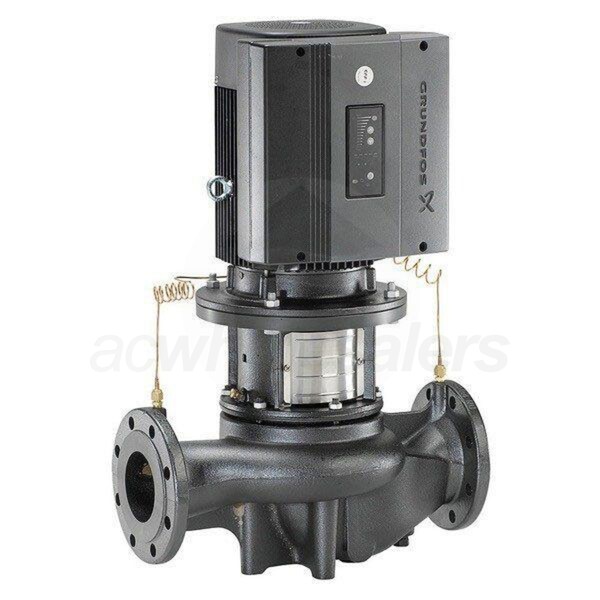

Grundfos TPE40-80/2 E-Circulator Pump with Differential Pressure Sensor, 3/4 HP, BUBE Seal, Cast Iron, 208-230V, GF 40/43 Flange Mount
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
68 Pounds 68 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Boiler Accessories
UPC
05711496812262
View More
+Share This Product
Features
Features
Overview for Grundfos 98538967
The Grundfos TPE40-80/2 is a single-stage, in-line centrifugal pump with a standard motor and mechanical shaft seal. It is a close-coupled type, meaning the pump and motor are separate units, which results in the pump being less sensitive to impurities in the pumped liquid than similar pump of the canned rotor type. This unit's motor features a built-in variable frequency drive, which gradually ramps the motor up to operating capacity rather than abruptly subjecting the motor to a high starting torque and current, which ultimately lessens the mechanical and electrical stress, reduces maintenance and repair costs, and extends the life of the equipment while maintaining an optimal comfort level. It also features a factory-fitted integrated differential-pressure sensor, which continually adjusts the pressure to fit the current demand of the system. This Grundfos pump is an ideal solution for a quick and safe installation, and depending on the type of application, it can offer significant energy-savings, drastically increased comfort or improved processing. Typical applications include: heating, district heating, air-conditioning, district cooling, industrial cooling, industrial processes and water supply.
Grunfos 98538967 Features
Significant energy savings
Increased comfort
Control and monitoring of pump performance
Communication with the pump
Differential pressure sensor
Cast iron construction
Product Note
Cast iron cannot be used in domestic hot water or potable water applications.
Specifications
Specifications
Overview
Product Category
Boiler Accessories
UPC
05711496812262
General Information
Product Line
TPE40-80/2
Product Category
Boiler Accessories
Control Type
On/Off
Motor Type
Variable Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Cast Iron
Drive Type
Close-Coupled
DHW Compatible DHW CompatibleCan be used in Domestic Hot Water applications (baths, sinks, showers).
No
Performance
Maximum Head
26.2 Feet
Maximum Flow Rate
51.1 GPM
Minimum Fluid Temperature
5 F
Maximum Fluid Temperature
284 F
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Connection Size
1 1/2 Inches
Product Height
20 1/2 Inches
Product Width
16 5/16 Inches
Product Depth
8 1/2 Inches
Product Weight
68 Pounds
Shipping Weight
78 Pounds
Warranty Information
Warranty WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
2 Years
