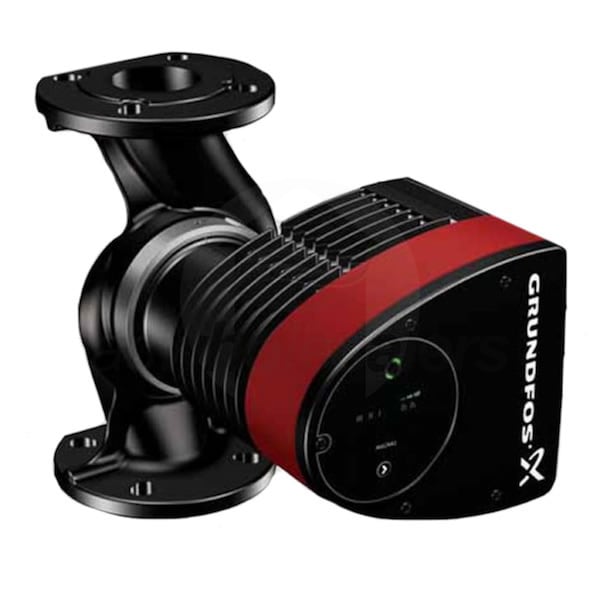

Grundfos MAGNA1 - 1/6 HP - Variable Speed Circulation Pump - Cast Iron - GF 15/26/40/43 Flange

Model: 98126823 Item Number: 103028
Grundfos 98126823
PREVIOUS
NEXT
Grundfos 98126823
Enlarge Image
Our Price: $1,197.00
synchrony card icon
$200 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Wednesday, March 29th
Shipping to60601
Grundfos MAGNA1 - 1/6 HP - Variable Speed Circulation Pump - Cast Iron - GF 15/26/40/43 Flange
Grundfos MAGNA1 - 1/6 HP - Variable Speed Circulation Pump - Cast Iron - GF 15/26/40/43 Flange Model: 98126823 Item Number: 103028
$1,197.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    12 Pounds Learn More
    12 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Grundfos 98126823

Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. With a full-range of intelligent, high efficiency pumps, the MAGNA1 series provides circulation for heating, cooling, ground source heat pump systems and domestic hot water applications.
  • Durable Cast Iron Construction
  • The Grundfos MAGNA1 32-100 is crafted from cast iron, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The MAGNA1 32-100 pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    General Information
    Product Line
    MAGNA1
    Product Category
    Boiler Accessories
    Motor Type
    Variable Speed
    Connection Type
    Flanged
    Material
    Cast Iron
    Drive Type
    Canned
    DHW Compatible Learn More
    DHW Compatible
    Can be used in Domestic Hot Water applications (baths, sinks, showers).
    No
    Performance
    Maximum Head
    32.8 Feet
    Maximum Flow Rate
    47 GPM
    Minimum Fluid Temperature
    14 F
    Maximum Fluid Temperature
    230 F
    Maximum Operating Pressure
    174 PSI
    Electrical Data
    Voltage
    115-230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Height
    6 5/8 Inches
    Product Width
    8 17/48 Inches
    Product Depth
    7 11/12 Inches
    Product Weight
    12 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

    Manuals
